Observability pipeline

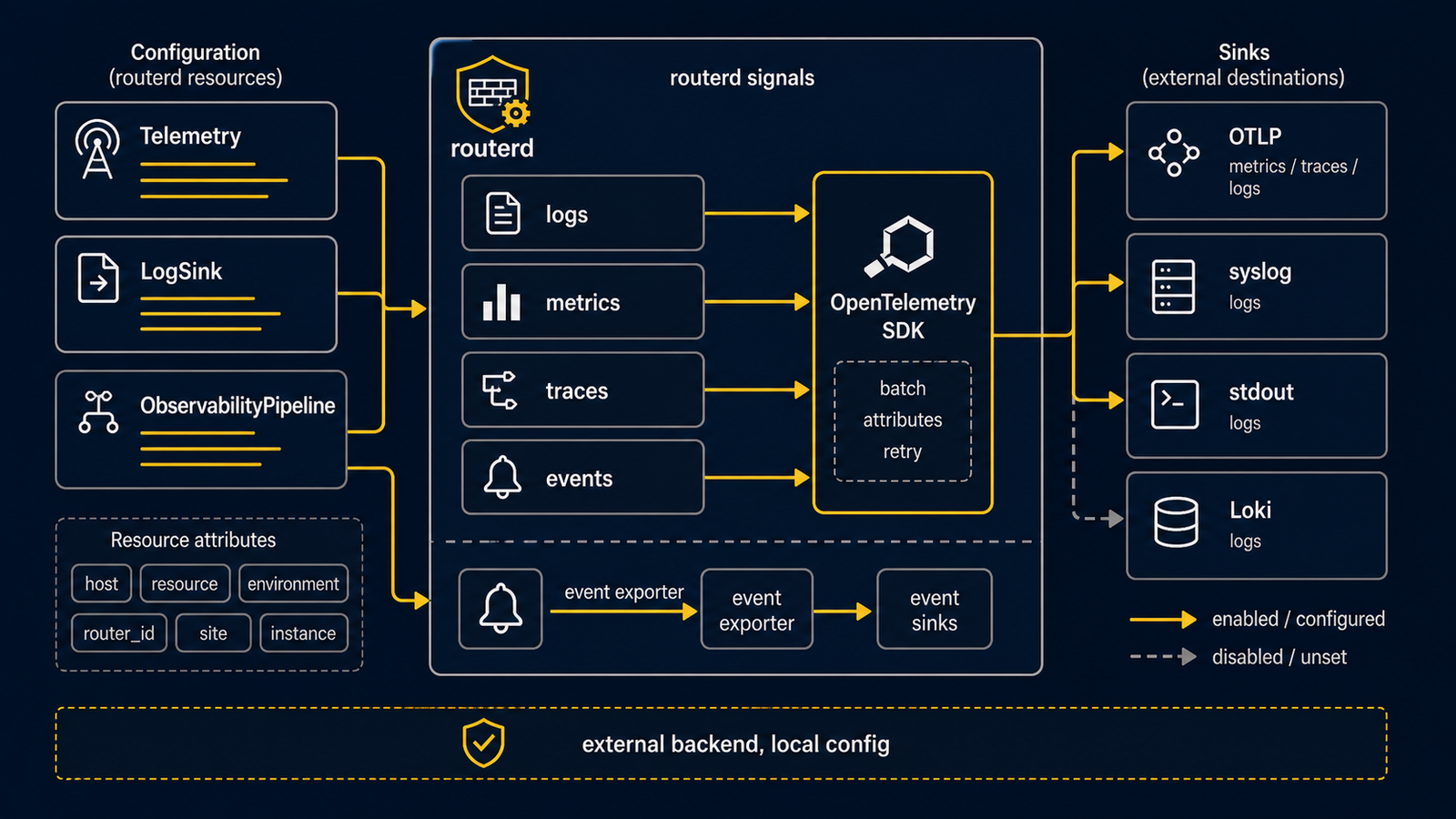

Telemetry remains the small OTLP-only resource for routerd's own metrics, traces, and logs. LogSink describes log forwarding routes for operational events and observed network logs; an OTLP LogSink should reference a Telemetry resource rather than duplicating collector endpoints. Use ObservabilityPipeline when the router should also forward routerd event logs to pipeline-style remote sinks such as Loki.

ObservabilityPipeline is a built-in pipeline, not a bundled otelcol process. routerd still uses the normal OpenTelemetry SDK for OTLP logs, metrics, and traces, and it starts a lightweight event exporter for configured log sinks.

Supported log sinks today:

• stdout: JSON event lines, useful for supervised service logs.
• syslog: local or remote syslog using the existing LogSink syslog shape.
• loki: HTTP push to /loki/api/v1/push.

kafka is accepted as documented metadata only so configs can record the intended external pipeline, but routerd does not publish to Kafka directly yet.

Example:

apiVersion: system.routerd.net/v1alpha1
kind: ObservabilityPipeline
metadata:
  name: remote-observability
spec:
  otlp:
    endpoint: http://otel-collector.lan:4317
    insecure: true
    headers:
      authorization: Bearer example-token
  serviceNamespace: routerd
  attributes:
    site: edge
  signals: [logs, metrics, traces]
  sampling:
    rate: 1
  logs:
    sinks:
      - name: loki
        type: loki
        minLevel: info
        loki:
          url: http://loki.lan:3100/loki/api/v1/push
          tenant: routerd

The OTLP fields render to the standard OpenTelemetry environment variables for routerd-managed units. The log sink exporter subscribes to routerd.** events on the in-process bus, so it forwards controller status changes and daemon events without scraping journalctl.

Sampling is deterministic per pipeline and applies before sink fan-out. Keep it at 1 for operational event logs unless a high-volume source is intentionally being downsampled.

See examples/observability-loki.yaml for a complete config.

Event delivery and recovery contracts

The local bus uses bounded subscriber queues. A full queue drops wakeups; it does not remove events already committed to SQLite. The exporter and EventRule engine use the bus only to wake their journal drains, with a default one-second poll when no wakeup arrives. Failed drains back off from one second to one minute. Polling periods exclude execution time, database outages, and a stalled process.

Consumer	Authoritative input	Recovery and limit
Route and other notification controllers	Current configuration, dynamic parts, and object status	Reread current inputs on an event or periodic reconcile. The IPv4 route controller's maximum normal period is 30 seconds. Duplicate or stale event payloads do not replace its desired state. Other controllers have their own periods.
DerivedEvent	Current referenced status	Reevaluate periodically (five seconds by default); intermediate historical transitions cannot be reconstructed.
EventRule	Committed event journal	Count, sequence, and window patterns require recorded history. A new consumer starts at the current journal cursor; it does not replay all older history. Rule correlation state is process-local.
ObservabilityPipeline	Committed event journal	Retry stored events; sampling and sink severity filters still apply. This is not a complete audit log of every attempted status change.
Provider action executor	ActionExecution journal and stable idempotency key	A durably succeeded action is skipped after retry/restart. A remote success before local outcome recording still requires executor idempotency or observation of provider state.

When a configured EventRule pattern matches routerd.resource.status.changed, the standard SQLite-backed status store commits each meaningful status change and its event in one transaction. A journal failure rolls back that status write, so a producer retry can record the transition. Local delivery happens after commit using the same event ID. A crash before local delivery is recovered by journal polling. The status store and bus must share this transactional store; an unsupported or mismatched store returns an error before saving the status. Rules for unrelated topics and configurations without such rules do not require this extra store capability.

Freshness checks and transition attributes use the transaction's current status, including fields retained by a concurrent merge. An identical status in a new generation refreshes its observed-generation metadata without emitting a new transition event.

Without a matching history-consuming EventRule, status notifications retain their existing contract: status can commit before event persistence fails, the error is returned, and local delivery is still attempted. Saving an identical status later does not reconstruct missing history. Current-state consumers can recover by rescanning; a log exporter cannot recover an event that never reached the journal. The transaction guarantee above applies specifically to status transition events, not every daemon or derived-event producer.

Journal consumption is at least once. If processing succeeds but cursor saving fails, the callback runs again for the same event ID. EventRule emissions and log sinks may therefore repeat. Successful delivery to multiple sinks is not atomic, and a cursor is not an exactly-once guarantee for an external API. The separate event federation protocol has its own delivery records and does not use the local status notification queue as its durable source of truth.
