Guest and IoT client isolation

This example keeps selected MAC addresses on the same LAN but treats them as guest or IoT clients: internet access is allowed, while trusted LAN and management access are denied.

The complete, validated YAML is in examples/guest-mode.yaml.

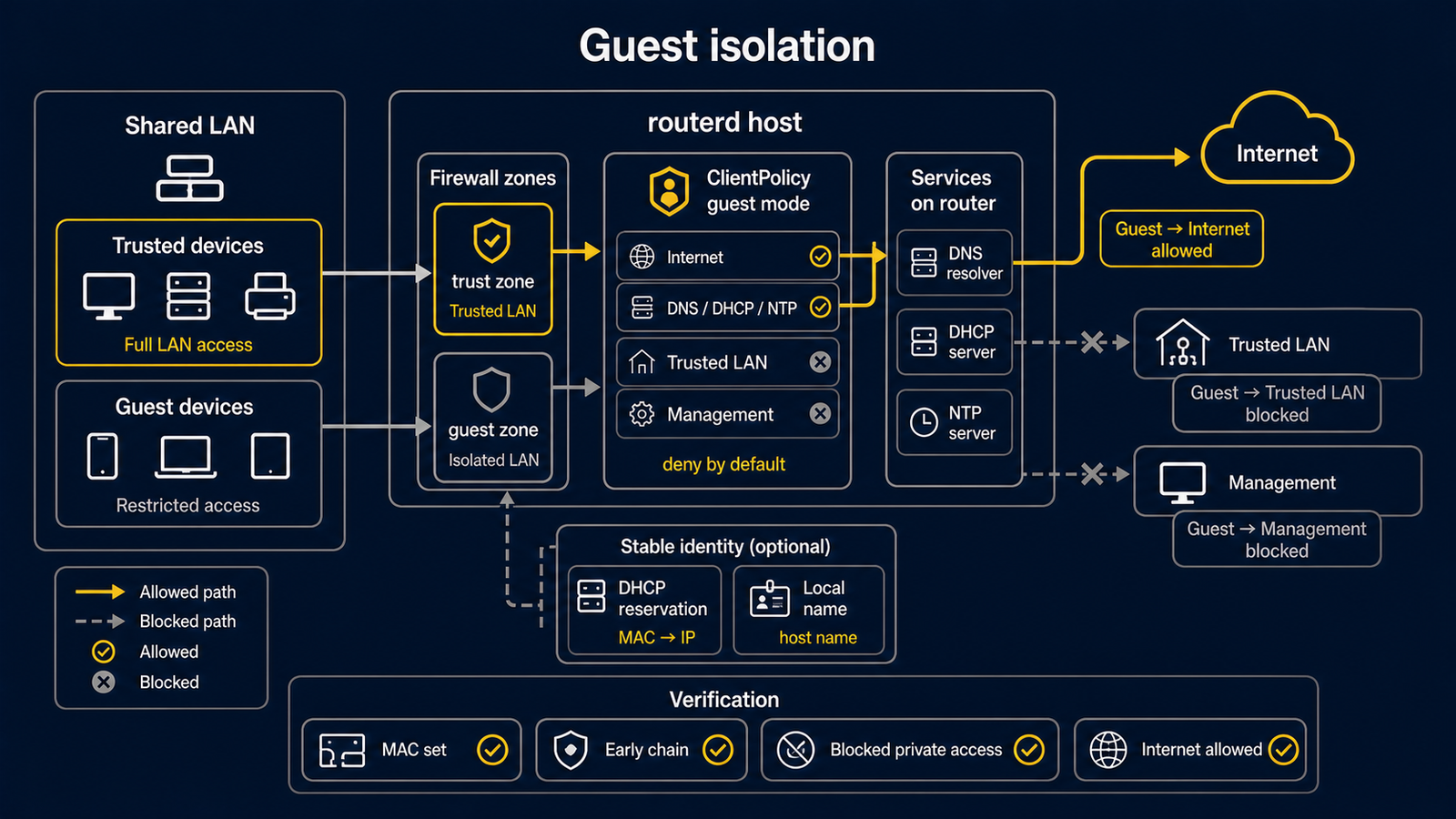

Topology

Diagram map

No.	Meaning	Main resources
[1]	Router applying the client policy.	FirewallPolicy/default
[2]	Shared layer-2 LAN where trusted and guest clients coexist.	FirewallZone/lan
[3]	Normal clients not matched by the guest policy.	Default zone behavior
[4]	Listed MAC addresses treated as guest or IoT clients.	ClientPolicy/guest-devices
[5]	Management destinations blocked from guest clients.	ClientPolicy.spec.isolation.lanMgmt

What this manages

Area	routerd resources
LAN addressing	IPv4StaticAddress/lan-gateway, DHCPv4Server/lan-v4
Client classification	ClientPolicy/guest-devices
Filtering	FirewallZone/*, FirewallPolicy/default

Key config

# [4] Listed MAC addresses become isolated guest/IoT clients.
- apiVersion: firewall.routerd.net/v1alpha1
  kind: ClientPolicy
  metadata:
    name: guest-devices
  spec:
    mode: include
    macs:
      - 18:ec:e7:33:12:6c
    # [4] -> [1] Internet is allowed, but LAN and management access are denied.
    isolation:
      lanInternet: allow
      lanLAN: deny
      lanMgmt: deny
      mDNSBroadcast: deny

Checks

routerd validate --config examples/guest-mode.yaml
routerd apply --config examples/guest-mode.yaml --once --dry-run
routerctl describe ClientPolicy/guest-devices
nft list table inet routerd_filter

From a guest client, verify internet access and confirm that trusted LAN and management addresses are blocked.

Common edits

• Use mode: include when only listed MAC addresses are isolated.
• Use mode: exclude for a guest-first network where only listed devices are trusted.
• Pair this with DHCP reservations so client names in the Web Console stay readable.
