Basic IPv4 NAT gateway

This is the smallest home-router shape that gives LAN clients IPv4 internet access through a DHCP-acquired WAN address.

The complete, validated YAML is in examples/example-basic-ipv4-nat.yaml.

Topology

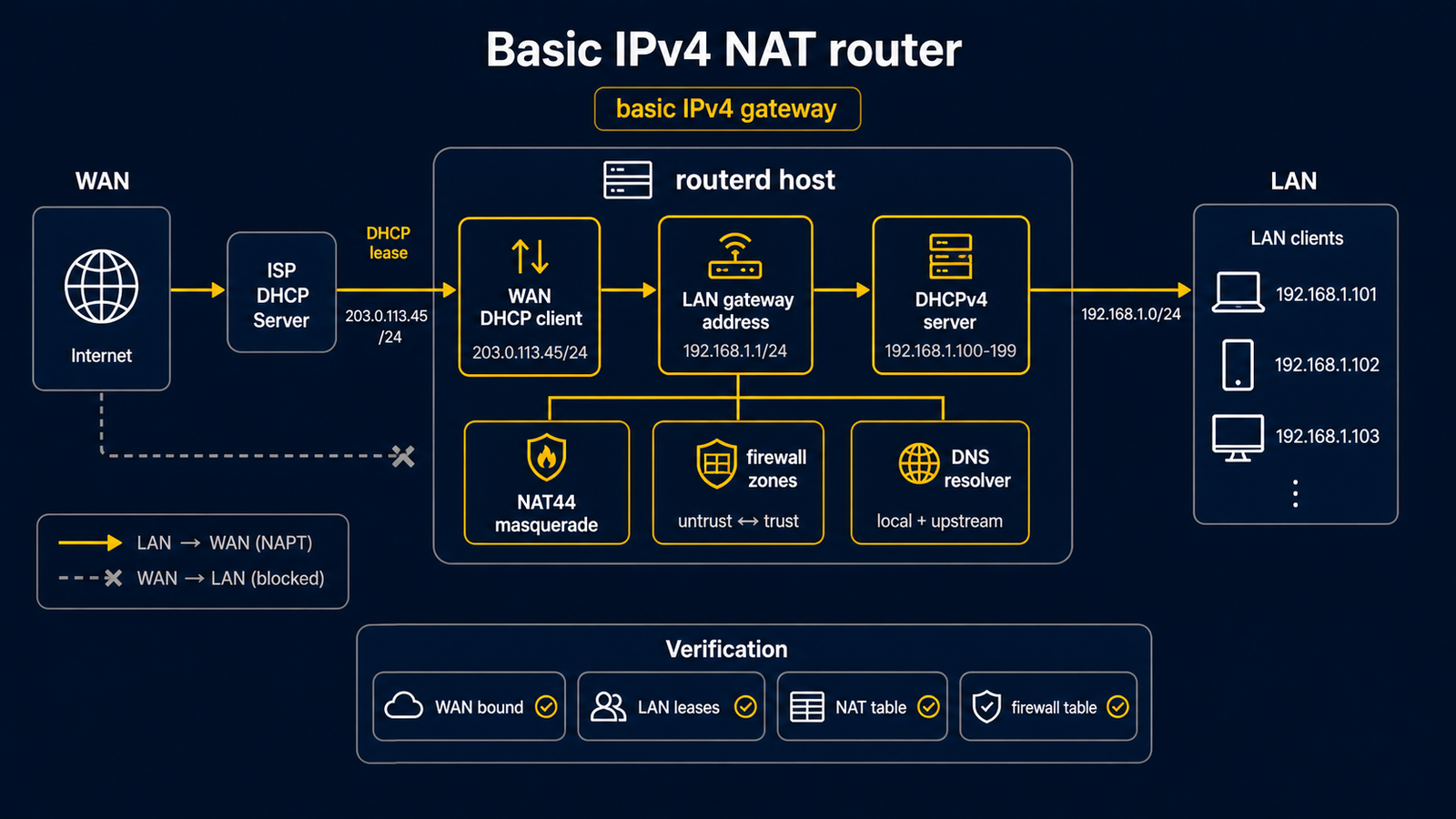

Diagram map

No.	Meaning	Main resources
[1]	Upstream network that gives the router a WAN IPv4 lease.	External to routerd
[2]	Physical WAN interface. routerd runs a DHCPv4 client here.	Interface/wan, DHCPv4Client/wan-dhcpv4
[3]	Linux host applying derived forwarding sysctls and nftables rules.	Derived host runtime
[4]	LAN gateway address owned by routerd.	Interface/lan, IPv4StaticAddress/lan-base
[5]	DHCPv4 clients using the router as gateway and DNS.	DHCPv4Server/lan-dhcpv4

What this manages

Area	routerd resources
WAN address	Interface/wan, DHCPv4Client/wan-dhcpv4
LAN address	Interface/lan, IPv4StaticAddress/lan-base
LAN DHCPv4	DHCPv4Server/lan-dhcpv4
IPv4 internet access	NAT44Rule/lan-to-wan
Basic filtering	FirewallZone/wan, FirewallZone/lan, FirewallPolicy/home

This example leaves DNS resolution simple: DHCPv4 clients receive the router's LAN address as their DNS server. Add a DNSResolver and DNSZone once the basic routing path is working.

Key config

# [2] WAN address is learned from the upstream network.
- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv4Client
  metadata:
    name: wan-dhcpv4
  spec:
    interface: wan

# [4] LAN gateway address owned by routerd.
- apiVersion: net.routerd.net/v1alpha1
  kind: IPv4StaticAddress
  metadata:
    name: lan-base
  spec:
    interface: lan
    address: 192.168.10.1/24

# [5] LAN clients receive addresses, gateway, DNS, and search domain.
- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv4Server
  metadata:
    name: lan-dhcpv4
  spec:
    interface: lan
    addressPool:
      start: 192.168.10.100
      end: 192.168.10.199
      leaseTime: 12h
    gatewayFrom:
      resource: IPv4StaticAddress/lan-base
      field: address
    dnsServerFrom:
      - resource: IPv4StaticAddress/lan-base
        field: address

# [2] -> [5] LAN IPv4 is masqueraded when it exits through the WAN.
- apiVersion: net.routerd.net/v1alpha1
  kind: NAT44Rule
  metadata:
    name: lan-to-wan
  spec:
    type: masquerade
    egressInterface: wan
    sourceRanges:
      - 192.168.10.0/24

NAT44Rule renders into routerd's nftables NAT table. The firewall resources put the WAN interface in an untrust zone and the LAN interface in a trust zone.

Apply sequence

cp examples/example-basic-ipv4-nat.yaml router.yaml
routerd validate --config router.yaml
routerd plan --config router.yaml
routerd apply --config router.yaml --once --dry-run

Only apply for real after confirming that management access is not on the LAN interface being readdressed, or that you have console access.

routerd apply --config router.yaml --once

Checks

routerctl status
routerctl describe DHCPv4Client/wan-dhcpv4
routerctl describe IPv4StaticAddress/lan-base
routerctl describe NAT44Rule/lan-to-wan
nft list table ip routerd_nat
nft list table inet routerd_filter

From a LAN client:

ip route
ping 192.168.10.1
curl https://1.1.1.1/

Common edits

• Change ens18 and ens19 to the host's real interface names.
• Change 192.168.10.0/24 when it overlaps with an upstream, VPN, or management network.
• Add a DNSResolver before advertising the router as DNS if the host does not already answer DNS on the LAN address.
