Install

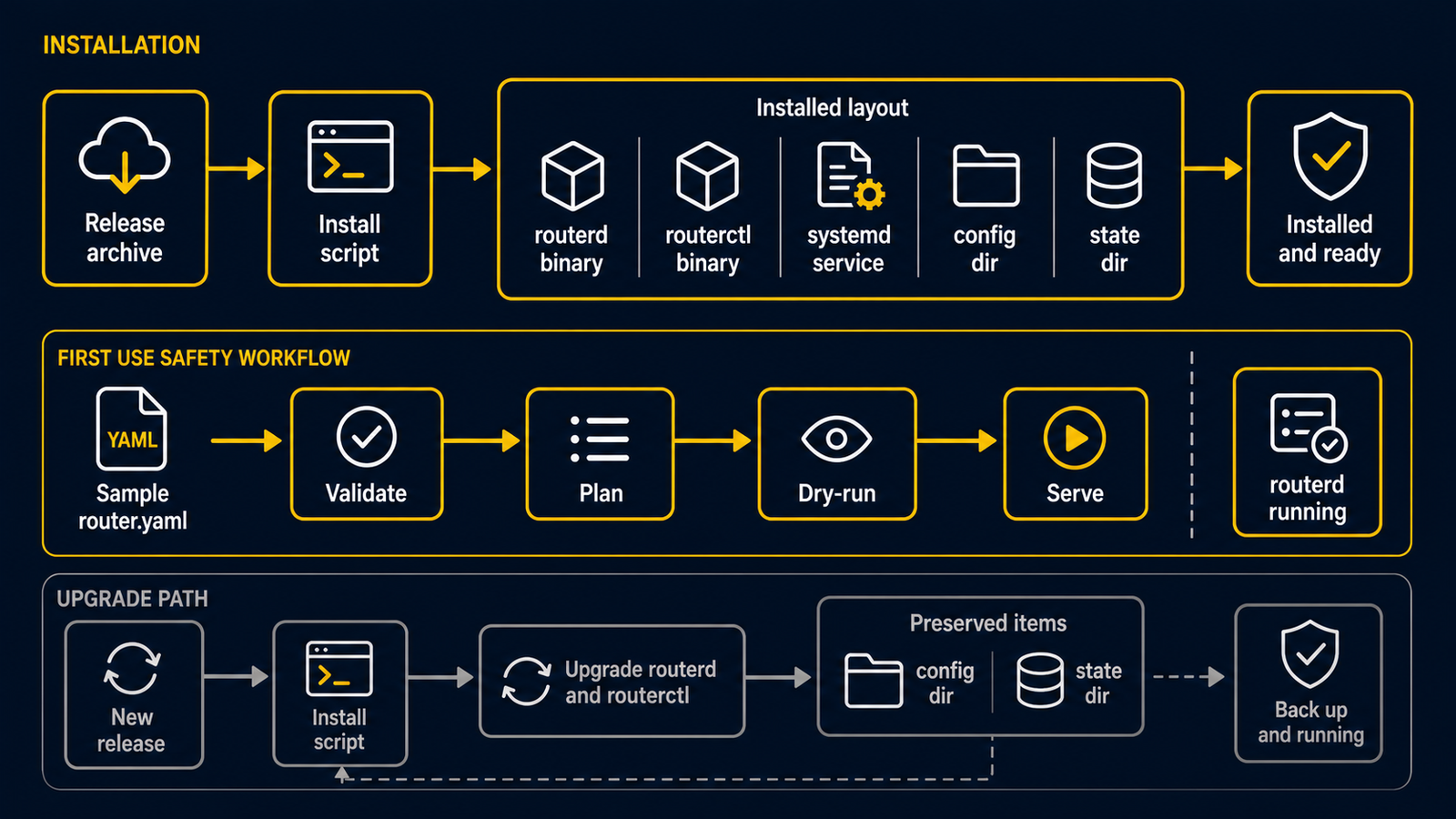

This page covers building, installing, and enabling the routerd daemon on a Linux host. After it you have a routerd binary, the standard install layout, and a systemd unit ready to run. The next tutorial, First router, walks through the smallest useful configuration.

routerd is still v1alpha1 software. Do this on a lab VM or a host you can reach through a console before pointing it at a remote router.

1. Build​

From the source tree:

make build

This produces two binaries:

  • bin/routerd — the apply engine and serve daemon.
  • bin/routerctl — the read-only inspection CLI.

The build is CGO_ENABLED=0 by default, so the binaries are statically linked Go.

2. Install the source layout​

routerd uses a /usr/local layout that is friendly to source installs and to future packaging:

sudo make install

Default paths:

PathPurpose
/usr/local/sbin/routerdapply / serve binary
/usr/local/sbin/routerctlinspection CLI
/usr/local/etc/routerd/router.yamlrouter config (you create this)
/usr/local/libexec/routerd/pluginslocal plugin directory
/run/routerdruntime socket and pid
/var/lib/routerdstate database

3. Stage a config​

Pick one of the examples and put it where the daemon expects it:

sudo install -m 0644 examples/basic-dhcp.yaml /usr/local/etc/routerd/router.yaml

First router walks through what should go in this file for the smallest working router.

4. Run a dry-run apply​

Before enabling the daemon, do an apply with --dry-run so you can see the plan:

sudo /usr/local/sbin/routerd apply \
  --config /usr/local/etc/routerd/router.yaml \
  --once \
  --dry-run

The output is structured JSON: which resources are healthy, which have drifted, and what routerd would change. Read this carefully on a host that already has its own networking — routerd may want to take ownership of files that another tool (cloud-init, netplan) is also writing.

When the plan matches your intent, drop --dry-run:

sudo /usr/local/sbin/routerd apply \
  --config /usr/local/etc/routerd/router.yaml \
  --once

5. Enable the daemon​

Once apply --once looks right, install the systemd unit and start the daemon:

sudo make install-systemd
sudo systemctl daemon-reload
sudo systemctl enable --now routerd.service

The daemon keeps a control socket under /run/routerd/ and re-applies the YAML on a periodic schedule. routerctl uses the same socket to read state.

routerctl get
routerctl describe interface/wan

What changed on the host​

apply may have written or modified:

  • /etc/systemd/network/*.network drop-ins under 10-netplan-*.network.d/.
  • /etc/dnsmasq.d/*.conf for managed dnsmasq services.
  • /etc/nftables.d/*.conf for NAT and firewall.
  • The state database at /var/lib/routerd/routerd.db.

routerd remembers which of these it owns in its ownership ledger. Files routerd did not install are left alone.
