Web Console

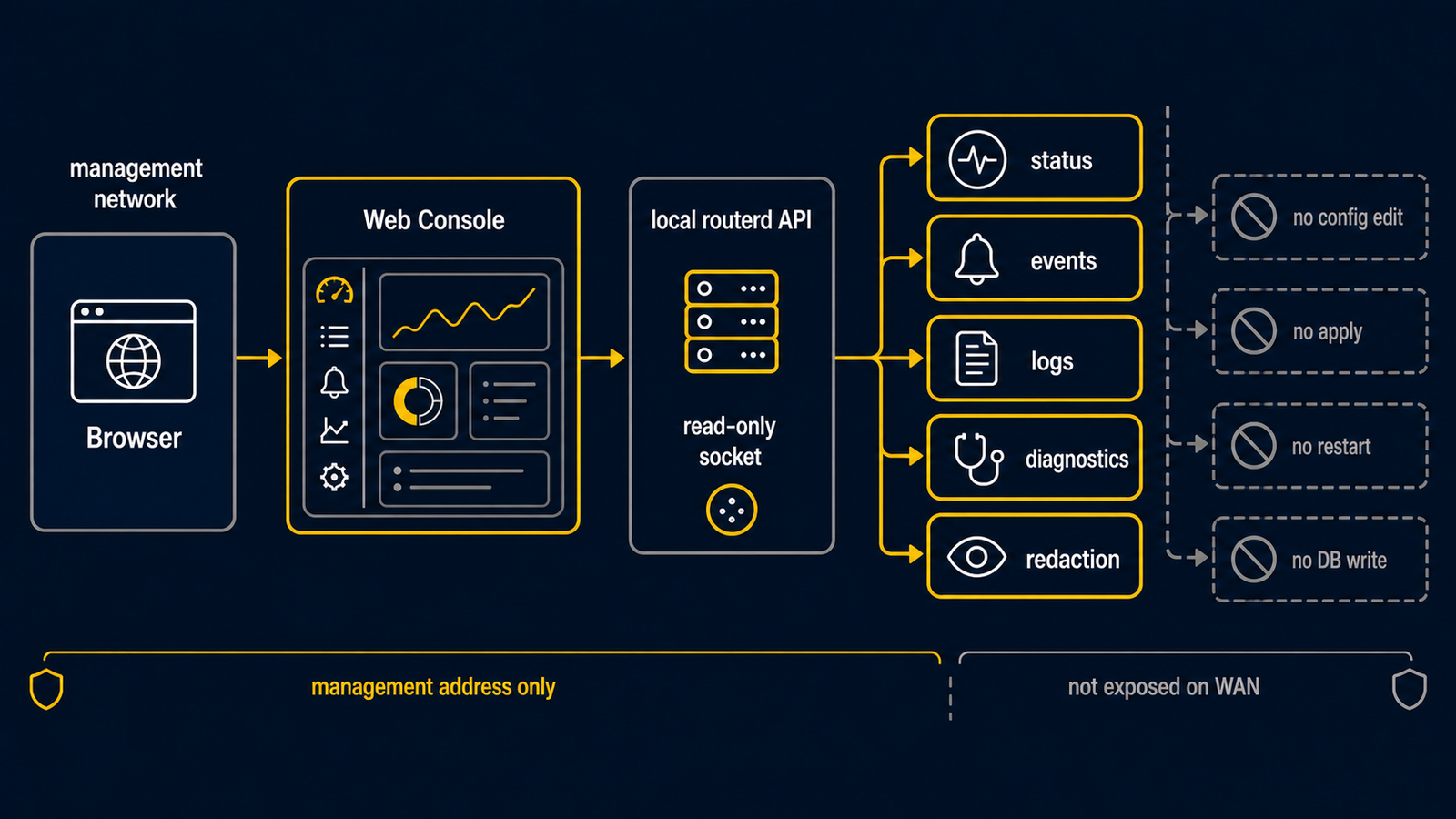

WebConsole enables a read-only HTTP view for routerd. It is intended for local operations on a management network. It does not change configuration, restart services, apply resources, or edit the state database.

Configuration changes remain limited to YAML files and routerctl commands. The browser is for observation only.

apiVersion: system.routerd.net/v1alpha1
kind: WebConsole
metadata:
  name: mgmt
spec:
  enabled: true
  listenAddressFrom:
    resource: Interface/mgmt
    field: ipv4Addresses
  port: 8080
  title: edge-router

Keep the listener on a management address. Do not expose it on an untrusted WAN interface. Use listenAddressFrom when the management address is owned by the operating system or IPAM. The value is resolved from resource status at startup, and listenAddress remains available for a literal fallback address.

What the console reads

The Web Console reads:

• routerd daemon status
• resource status in the SQLite state database
• bus events in the SQLite event table
• live connection observations from conntrack or pf state
• DNS query history from dns-queries.db
• traffic flow history from traffic-flows.db
• firewall deny history from firewall-logs.db
• current dnsmasq DHCP lease files for client names, MAC addresses, and local vendor hints
• the active YAML configuration, shown read-only with secret fields redacted

Current screens

The current Fluent UI web app provides:

• a status overview for PD, DS-Lite, DNS, NAT, routes, health checks, VPN, packages, sysctl, systemd units, and log resources
• resource change highlighting when a phase or observed value changes
• an Events view with a selectable detail pane, so large attributes do not crowd the event table
• DHCP lease event details, including MAC address, IP address, hostname, and resource names when present
• a Connections view grouped by family and protocol, with filtering, sorting, pagination, and page size controls
• DNS query, traffic flow, and firewall log views backed by separate log databases
• dedicated BGP, VRRP, and IngressService operational pages at /bgp, /vrrp, and /ingress. These pages use Server-Sent Events to refresh resource tables, keep a local 5/15/60 minute SVG trend, and show a filtered event log for the relevant resources.
• Firewall rows combine firewall logs, DNS answers, DHCP leases, MAC vendor hints, and current conntrack reply tuples. This helps explain whether a denied packet is unsolicited traffic or an off-path reply for an existing NAT mapping.
• a Config view with a structured, foldable YAML tree and a raw YAML fallback

Connection rows show the forward direction by default. Return-path data is not shown as a separate primary row because conntrack commonly reports the same conversation from both directions.

API boundary

Web Console APIs are read-only. The JSON endpoints are under /api/v1; the SSE stream is also available through the short /api/events/stream alias.

Path	Content
/api/v1/summary	status, resource phases, recent events, and connection summary
/api/v1/resources	resource statuses from the state database
/api/v1/events?limit=200&resourceKind=&resourceName=&q=	recent bus events with optional filters
/api/v1/events/stream or /api/events/stream	Server-Sent Events stream for routerd.* bus events
/api/v1/connections	live connection observation from conntrack or pf state
/api/v1/dns-queries?since=1h&client=&qname=&limit=100	DNS query log rows
/api/v1/traffic-flows?since=1h&client=&peer=&limit=100	traffic flow log rows with DNS-derived hostnames
/api/v1/firewall-logs?since=24h&action=drop&src=&limit=100	firewall log rows
/api/v1/bgp, /api/v1/vrrp, /api/v1/ingress	filtered operational status for Kubernetes-edge routing and VIP resources
/api/v1/config	active YAML configuration, redacted
/api/v1/generations?limit=100	completed apply generations and whether a YAML snapshot is stored
/api/v1/generations/<id>/config	stored YAML for one apply generation, redacted
/api/v1/generations/<from>/diff/<to>	unified diff between two stored YAML generations, redacted

Secret redaction

The config-bearing endpoints — /api/v1/config, /api/v1/generations/<id>/config, and /api/v1/generations/<from>/diff/<to> — redact secrets before serializing. WireGuard privateKey / preSharedKey, Tailscale authKey, BGP/PPPoE/IPsec password, WebConsole initialPassword, and bearer/token/API-key style fields are replaced with a marker value (***REDACTED***); keys stay in place so the UI structure is unaffected.

The read-only Web Console never exposes raw secret material. Privileged local control paths (the routerd control socket, routerctl describe) are intentionally unchanged and continue to show raw intent where appropriate; those paths should be protected by local socket permissions and routerd group membership.
