WAN-side services

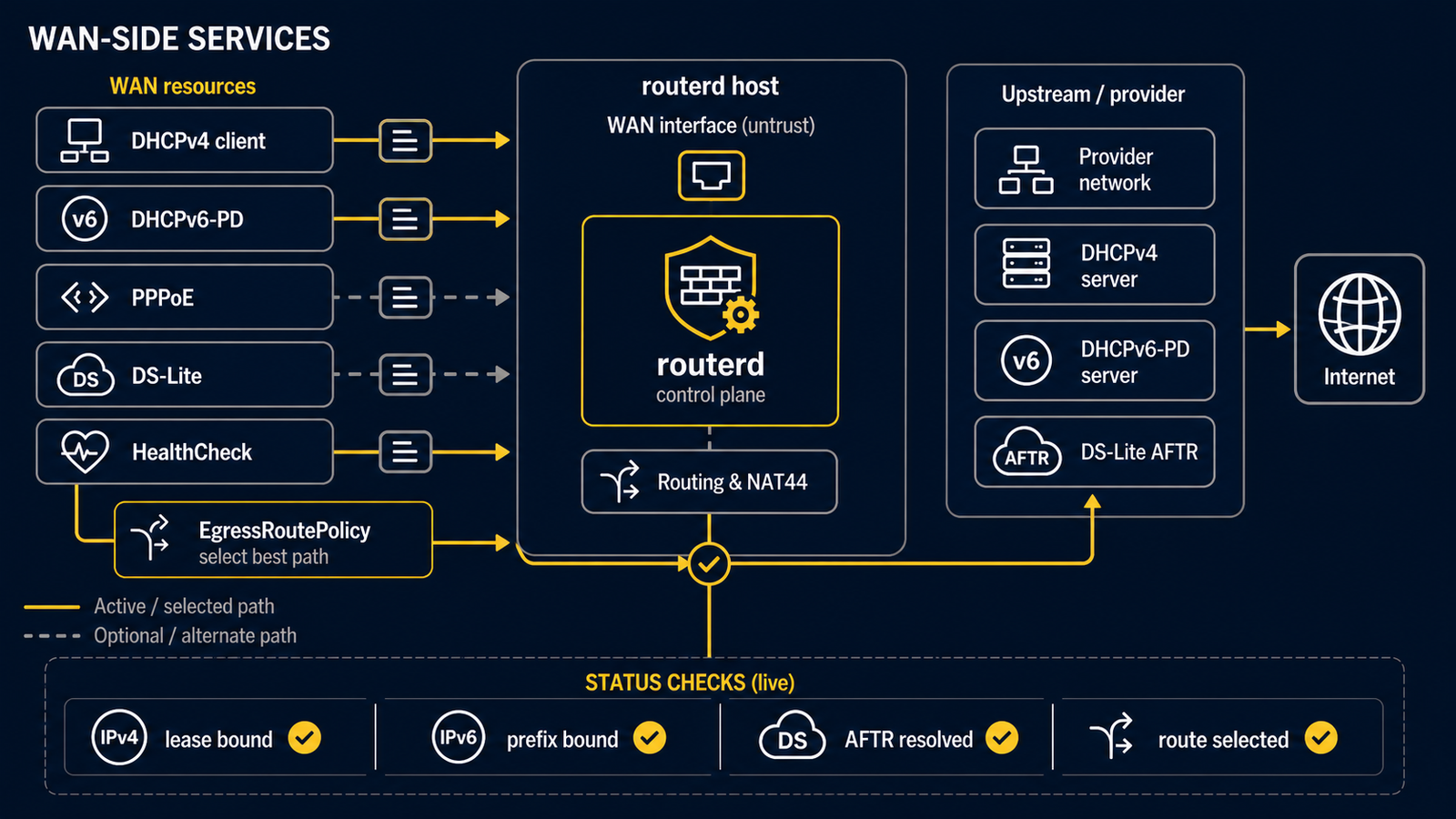

Diagram showing WAN-side routerd services for DHCPv4, DHCPv6-PD, PPPoE, DS-Lite, health checks, egress selection, NAT44, and downstream status inputs

This page introduces the routerd resources that handle the WAN side of a router: getting an upstream link, obtaining IP addresses and prefixes from the ISP, terminating tunnels, and exposing one or more upstream paths to the rest of the controller chain.

The companion page on the LAN side covers what the router serves to its inside.

Summary table​

ConcernResourceDaemon backing it
Physical / virtual interfaceInterface, IPv4StaticAddress(kernel)
IPv4 from ISP via DHCPDHCPv4Clientrouterd-dhcpv4-client
IPv6 prefix from ISPDHCPv6PrefixDelegation, IPv6DelegatedAddressrouterd-dhcpv6-client
Other DHCPv6 options (DNS, AFTR, etc.)DHCPv6Informationrouterd-dhcpv6-client
Upstream time sourcesNTPClientsystemd-timesyncd or ntpd
PPPoE sessionPPPoESessionrouterd-pppoe-client
IPv4 over IPv6 (DS-Lite)DSLiteTunnel(kernel ip6tnl)
WAN selectionEgressRoutePolicy, HealthCheckrouterd-healthcheck@<name>
IPv4 NAT (masquerade)NAT44Rule(nftables)
Static IPv4 routeIPv4Route(kernel)

You typically pick a subset of these depending on what the ISP gives you.

Pattern A: Native dual-stack (IPv4 + IPv6)​

The ISP gives you a public IPv4 address via DHCPv4 and an IPv6 prefix via DHCPv6-PD on the same WAN interface.

- apiVersion: net.routerd.net/v1alpha1
  kind: Interface
  metadata: {name: wan}
  spec:
    ifname: ens18
    role: untrust

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv4Client
  metadata: {name: wan-v4}
  spec:
    interface: wan

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegation
  metadata: {name: wan-pd}
  spec:
    interface: wan

- apiVersion: net.routerd.net/v1alpha1
  kind: IPv6DelegatedAddress
  metadata: {name: lan-base}
  spec:
    pdRef: wan-pd
    interface: lan
    suffix: ::1/64

- apiVersion: net.routerd.net/v1alpha1
  kind: NAT44Rule
  metadata: {name: lan-to-wan}
  spec:
    type: masquerade
    egressInterface: wan
    sourceRanges:
      - 192.0.2.0/24

DHCPv4Client runs routerd-dhcpv4-client and writes the lease to lease.json. The kernel takes the address; routerd publishes events for downstream resources to react.

DHCPv6PrefixDelegation runs routerd-dhcpv6-client and obtains an IA_PD. IPv6DelegatedAddress carves a /64 (or other length) for a LAN side.

Upstream NTP / SNTP​

NTPClient can derive time servers from DHCPv4 option 42 or DHCPv6 option 31. If the upstream does not provide one, routerd writes the configured public fallback servers to the OS NTP client (systemd-timesyncd on Linux, ntpd on FreeBSD).

- apiVersion: system.routerd.net/v1alpha1
  kind: NTPClient
  metadata: {name: system-time}
  spec:
    provider: systemd-timesyncd
    managed: true
    source: auto
    serverFrom:
      - resource: DHCPv4Client/wan-v4
        field: ntpServers
      - resource: DHCPv6Information/wan-info
        field: sntpServers
    fallbackServers:
      - ntp.jst.mfeed.ad.jp
      - ntp.nict.jp

Use this with the LAN-side ntpServerFrom and sntpServerFrom fields when the router itself should be the time source advertised to clients.

Pattern B: PPPoE for IPv4, DHCPv6-PD for IPv6​

Common for older xDSL plans where the IPv4 path goes through PPPoE while IPv6 still rides native DHCPv6-PD on the same physical link.

- apiVersion: net.routerd.net/v1alpha1
  kind: PPPoESession
  metadata: {name: wan-pppoe}
  spec:
    interface: wan
    user: "[email protected]"
    passwordFromSecret: pppoe-password
    mtu: 1454
    mru: 1454

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegation
  metadata: {name: wan-pd}
  spec:
    interface: wan

PPPoESession runs routerd-pppoe-client, which wraps pppd/rp-pppoe on Linux and ppp(8) on FreeBSD. The session interface (typically ppp0) becomes available for routes and NAT44Rule.

Pattern C: DS-Lite (IPv6-only access network with IPv4-in-IPv6 tunnel)​

The ISP provides only IPv6 natively. IPv4 is delivered through a DS-Lite tunnel to an Address Family Transition Router (AFTR).

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegation
  metadata: {name: wan-pd}
  spec:
    interface: wan

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6Information
  metadata: {name: wan-info}
  spec:
    interface: wan

- apiVersion: net.routerd.net/v1alpha1
  kind: DSLiteTunnel
  metadata: {name: ds-lite-primary}
  spec:
    sourceInterface: wan
    aftrFQDN: gw.transix.jp
    aftrFQDNResolverFromResource:
      resource: DHCPv6Information/wan-info
      field: dnsServers
    mtu: 1454

DSLiteTunnel is created as a kernel ip6tnl device once the AFTR address is resolved. aftrFQDNResolverFromResource ensures the AFTR FQDN is resolved through the ISP's own DNS rather than a public resolver, since AFTR records are usually only authoritative inside the access network.

Pattern D: Multi-WAN (primary + backup)​

When more than one path is available, pair the WAN-acquisition resources with EgressRoutePolicy and HealthCheck. See Multi-WAN egress with health-based selection for the full pattern.

Status and observation​

For each WAN resource, routerctl describe <kind>/<name> shows the current phase, observed leases, and recent events. Examples:

routerctl describe DHCPv6PrefixDelegation/wan-pd      # phase: Bound, prefix: 2001:db8:1::/56
routerctl describe DSLiteTunnel/ds-lite-primary       # phase: Up, aftr: 2001:db8:cafe::1
routerctl describe EgressRoutePolicy/ipv4-default     # selectedCandidate: ds-lite-primary

The Web Console summarises the same information under the Overview and Resources tabs, and the Connections tab shows real conntrack/pf state per WAN path.
