routerctl doctor — runtime health diagnostics

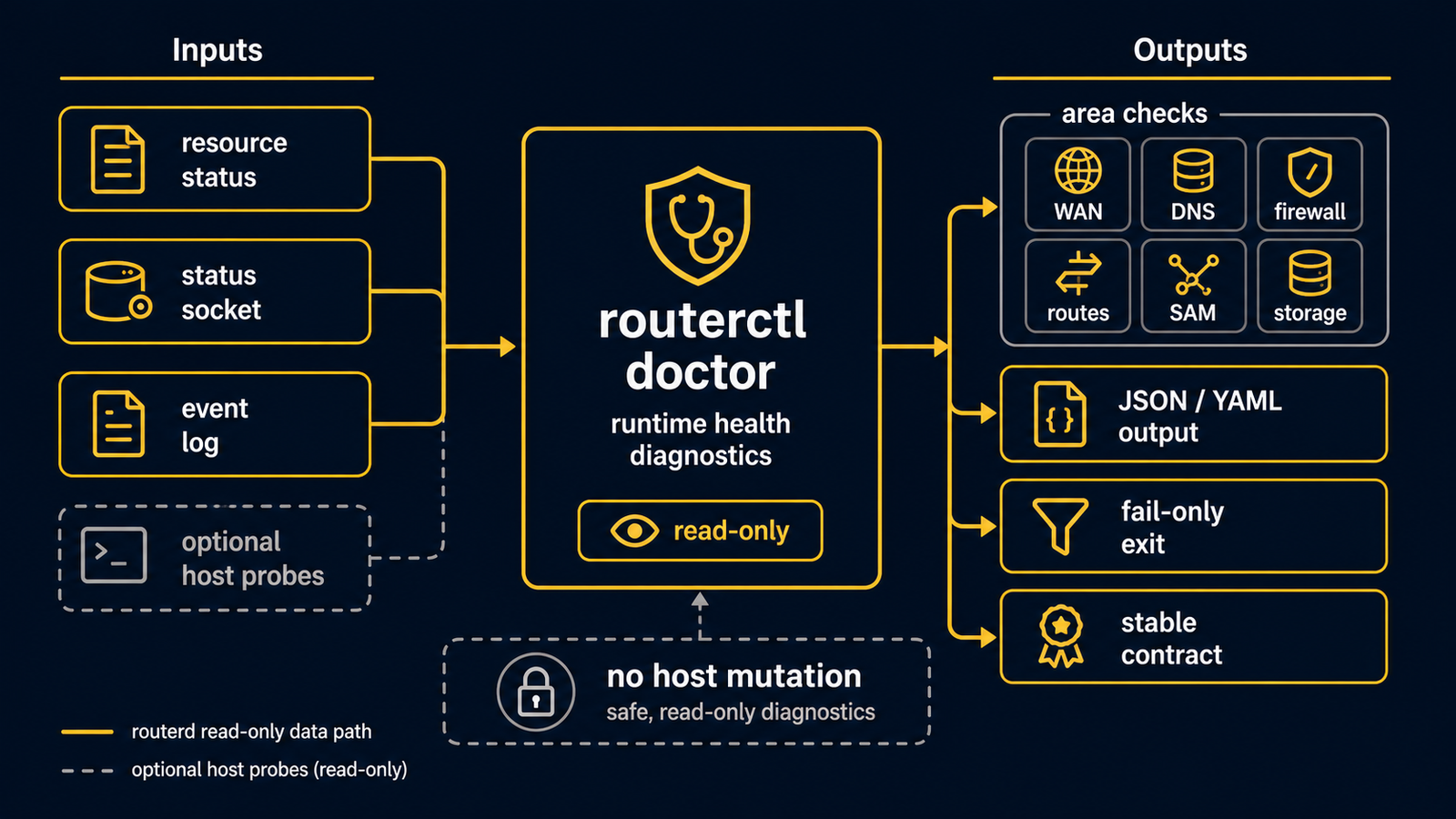

routerctl doctor runs a battery of read-only checks and reports whether this router is currently functioning as a home gateway. It does not change host state. It is designed to be used by operators, CI, monitoring agents, and downstream tools (a Prometheus exporter, the Web Console, or an LLM-assisted diagnostic).

Usage​

# Run every area (default)
routerctl doctor

# Run a single area
routerctl doctor dns

# Skip host commands (resource-status checks only)
routerctl doctor --no-host

# Machine-readable output
routerctl doctor -o json
routerctl doctor -o yaml

Per-call options reuse the diagnose flag set: --config, --state-file, --no-host / --host, -o / --output, --timeout.

Areas​

AreaChecks
wanEgressRoutePolicy and HealthCheck resource status; IPv4 / IPv6 default route presence (ip -4/-6 route show default).
dnsDNSResolver resource status; an A-record probe via dig @127.0.0.1.
dsliteDSLiteTunnel resource status; AFTR FQDN AAAA probe; tunnel device existence (ip link show).
dhcpv6-pdDHCPv6PrefixDelegation status (Bound, delegated prefix). PD pending is WARN by design (do not advertise stale IPv6 on the LAN).
natNAT44Rule resource status; nft list table ip routerd_nat exists.
firewallFirewallZone / FirewallPolicy resource status; nft list table inet routerd_filter exists with policy drop on the input chain (otherwise the router is permissive).
rollbackAt least one stored generation exists, so routerctl rollback --to is usable.
disk/var/lib/routerd and /run/routerd capacity; WARN at 90% or <256 MiB, FAIL at 98% or <64 MiB.
mgmtManagement interface presence (best-effort from ManagementAccess or FirewallZone role=mgmt); WebConsole binding (FAIL/WARN on 0.0.0.0 / ::).

Each check returns one of pass, warn, fail, or skip (the resource or signal is not present on this router).

JSON output contract​

routerctl doctor -o json is a stable machine-readable interface. The shape is:

{
  "summary": {
    "overall": "pass",      // "pass" | "warn" | "fail" | "skip"
    "pass": 7,
    "warn": 1,
    "fail": 0,
    "skip": 2
  },
  "checks": [
    {
      "area":   "dns",                          // see Areas table above
      "name":   "DNSResolver/lan-resolver",     // human-readable subject
      "status": "warn",                         // "pass" | "warn" | "fail" | "skip"
      "detail": "phase=Degraded,waiting=...",   // optional
      "remedy": "wait for or repair dependency wan-pd" // optional
    }
    // ...
  ]
}

Field guarantees:

  • summary.overall is the worst-of checks[].status (fail > warn > unknown/skip > pass).
  • summary.pass/warn/fail/skip are integer counts and sum to len(checks).
  • checks[].status is one of pass, warn, fail, skip — no other values.
  • checks[].area is one of the identifiers in the Areas table above; the set is stable.
  • checks[].name is human-readable; do not pattern-match on its exact form.
  • detail and remedy are optional, free-form text intended for operators.

Exit code​

  • 0 — no fail checks (pass, warn, and skip are all considered non-failure for exit purposes).
  • non-zero — at least one fail check. Scriptable as routerctl doctor || alert.

warn does not fail the exit code (e.g., DHCPv6-PD not yet Bound on a fresh boot is informational). Tighten this with an explicit area selection if you want stricter gates (routerctl doctor wan exits non-zero only if wan fails).

Stability​

The JSON shape, area identifiers, and status enum are part of the v1alpha1 operator contract. Future versions may add new areas and optional fields; existing area names and status values will not be renamed or repurposed in v1alpha1 minor builds.
