Secret sources

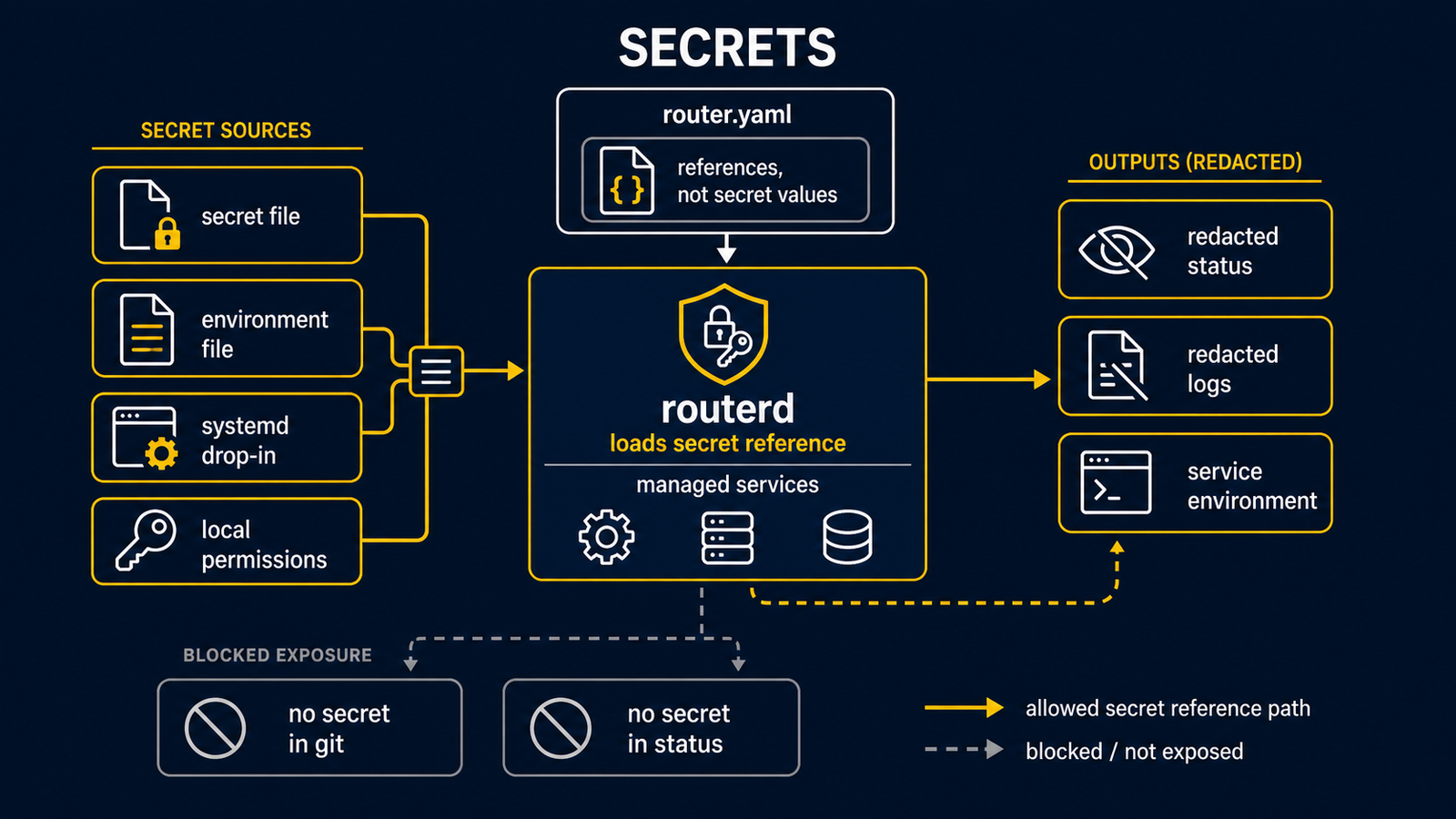

Diagram showing secret sources referenced from YAML through file or environment providers, root-owned host storage or USB persistence, validation warnings, and render or apply requiring readable secrets

routerd supports file and environment secret sources for BGP peer passwords, VRRP/CARP authentication, SAM enrollment join tokens, and ControlAPI HTTP bearer tokens. It also references TLS certificate/key files for ControlAPI HTTPS and mTLS. Prefer secret-source fields over inline secret values:

passwordFrom:
  file: /usr/local/etc/routerd/secrets/bgp-password
  base64: false

authenticationFrom:
  env: ROUTERD_VRRP_AUTH

tokenFrom:
  file: /usr/local/etc/routerd/secrets/control-api-token

tls:
  certFile: /usr/local/etc/routerd/secrets/rr-control-api.crt
  keyFile: /usr/local/etc/routerd/secrets/rr-control-api.key
  clientCAFile: /usr/local/etc/routerd/secrets/leaf-client-ca.pem

Operational guidance:

Keep secret files outside Git-managed config directories.
The default release path for host-local secret files is /usr/local/etc/routerd/secrets/.
Use root-owned files with mode 0600, or an equivalent service-manager credential mechanism that exposes a file only to routerd.
Do not publish rendered keepalived or CARP config from production hosts; rendered files contain the resolved secret value.
base64: true is only an encoding convenience for file/env transport. It is not encryption.
routerctl validate warns when a referenced secret file does not exist yet. Render and apply require the source to be readable.

On the live ISO with USB persistence, files under /usr/local/etc/routerd/secrets are copied to routerd/secrets/ on the persistence device by live-persistence.sh save-config and flush, then restored at boot before routerd applies router.yaml. Host-specific routerd/hosts/<hostname>/secrets/ and routerd/hosts/<mac>/secrets/ directories take precedence over the generic directory.
