Define firewall zones

Use FirewallZone to map interfaces to a policy role.

- apiVersion: firewall.routerd.net/v1alpha1
kind: FirewallZone
metadata:
name: wan
spec:
role: untrust
interfaces:
- Interface/wan
- DSLiteTunnel/ds-lite

- apiVersion: firewall.routerd.net/v1alpha1
kind: FirewallZone
metadata:
name: lan
spec:
role: trust
interfaces:
- Interface/lan

- apiVersion: firewall.routerd.net/v1alpha1
kind: FirewallZone
metadata:
name: management
spec:
role: mgmt
interfaces:
- Interface/mgmt

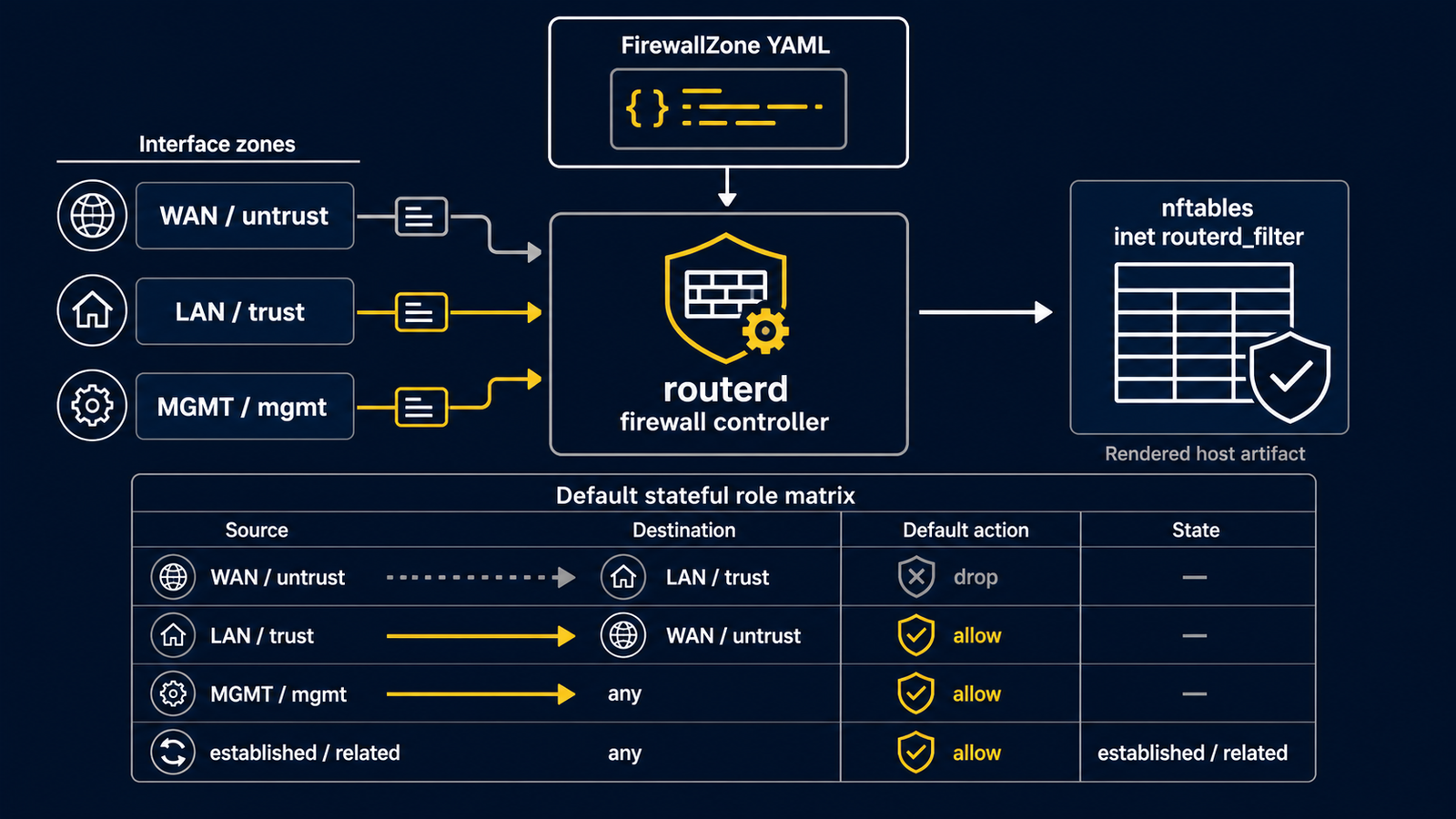

untrust is for WAN-facing paths. trust is for normal LAN segments. mgmt is for the management network. The role matrix supplies the default behavior, so a minimal home router usually needs zones and no broad policy rules.
