Add firewall exceptions

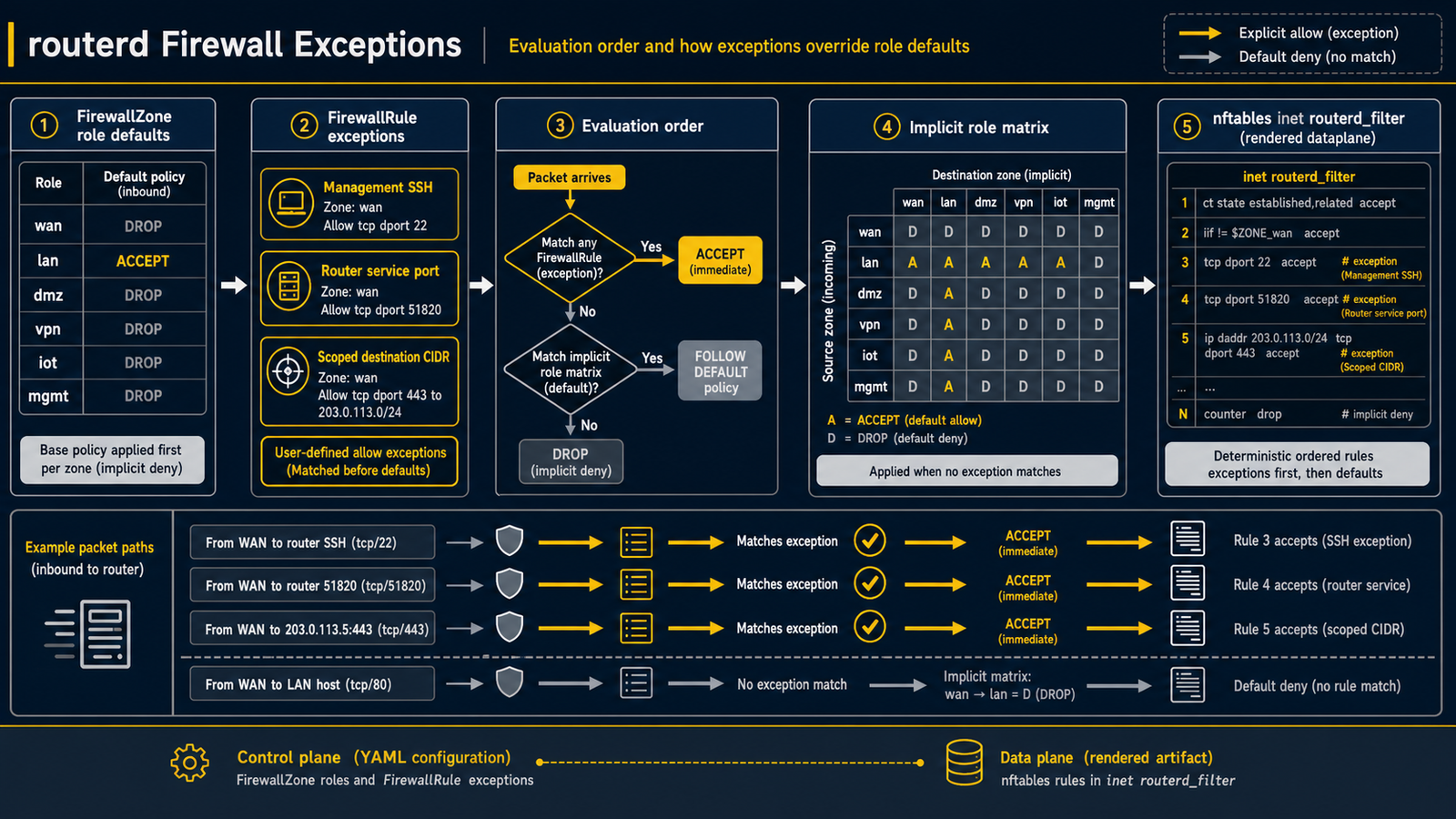

Diagram showing FirewallRule exceptions for management SSH, router service ports, scoped destination CIDRs, and the evaluation order before the implicit role matrix

Scenario​

The role-based defaults from FirewallZone cover the common case, but you need an exception:

  • Allow SSH from a specific management subnet.
  • Open a service port on the router itself (a metrics endpoint, a custom listener).
  • Permit a specific LAN host to receive inbound connections from the WAN (port forward / DMZ-style).

How routerd solves it​

FirewallRule declares an exception that overrides the implicit role matrix. Rules are evaluated before the implicit matrix, and routerd-derived internal openings (DHCP, DNS, DHCPv6-PD, DS-Lite control traffic, etc.) are evaluated before user rules. That ordering keeps managed services alive even when you add restrictive rules.

Example: allow SSH from the management network​

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: allow-admin-ssh
  spec:
    fromZone: management
    toZone: self
    protocol: tcp
    port: 22
    action: accept

fromZone and toZone reference FirewallZone names. toZone: self means traffic terminated by the router itself (as opposed to forwarded traffic).

Example: open a service port on the router​

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: allow-metrics
  spec:
    fromZone: lan
    toZone: self
    protocol: tcp
    destinationPorts:
      - "9100"
    action: accept

Example: allow one management host from the LAN​

Use destinationCIDRs when the exception should apply to a specific host inside the destination zone. This keeps the rest of the management segment closed by the role matrix.

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: allow-lan-to-admin-console
  spec:
    fromZone: lan
    toZone: management
    destinationCIDRs:
      - 192.0.2.126/32
    protocol: tcp
    destinationPorts:
      - "8080"
    action: accept

Example: multi-port web and ICMP echo​

Use destinationPorts when a rule covers more than one TCP or UDP port. ICMP rules can be narrowed to specific type names.

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: wan-web
  spec:
    fromZone: wan
    toZone: self
    protocol: tcp
    destinationPorts:
      - "80"
      - "443"
    action: accept

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: wan-icmp-echo
  spec:
    fromZone: wan
    toZone: self
    protocol: icmp
    icmpType: echo-request
    action: accept

Example: reject SSH over a rate or connection limit​

rateLimit matches traffic over the configured threshold. connLimit matches when one source already has more than the allowed concurrent tracked states.

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: ssh-bruteforce-over-limit
  spec:
    fromZone: wan
    toZone: self
    protocol: tcp
    destinationPorts:
      - "22"
    action: reject
    rateLimit:
      rate: 8
      burst: 16
      unit: packet
      per: minute
      log: true
    connLimit:
      maxPerSource: 4
      log: true

Validating before apply​

Use the local simulator to check what the rule would do before you apply it:

routerctl firewall test from=wan to=self proto=tcp dport=22
routerctl describe firewall

The first command reports accept or drop for the specific 5-tuple. The second prints the full effective ruleset including role-matrix defaults and managed openings.
