Add firewall exceptions
Scenario
The role-based defaults from FirewallZone cover the common case, but you need an exception:
- Allow SSH from a specific management subnet.
- Open a service port on the router itself (a metrics endpoint, a custom listener).
- Permit a specific LAN host to receive inbound connections from the WAN (port forward / DMZ-style).
How routerd solves it

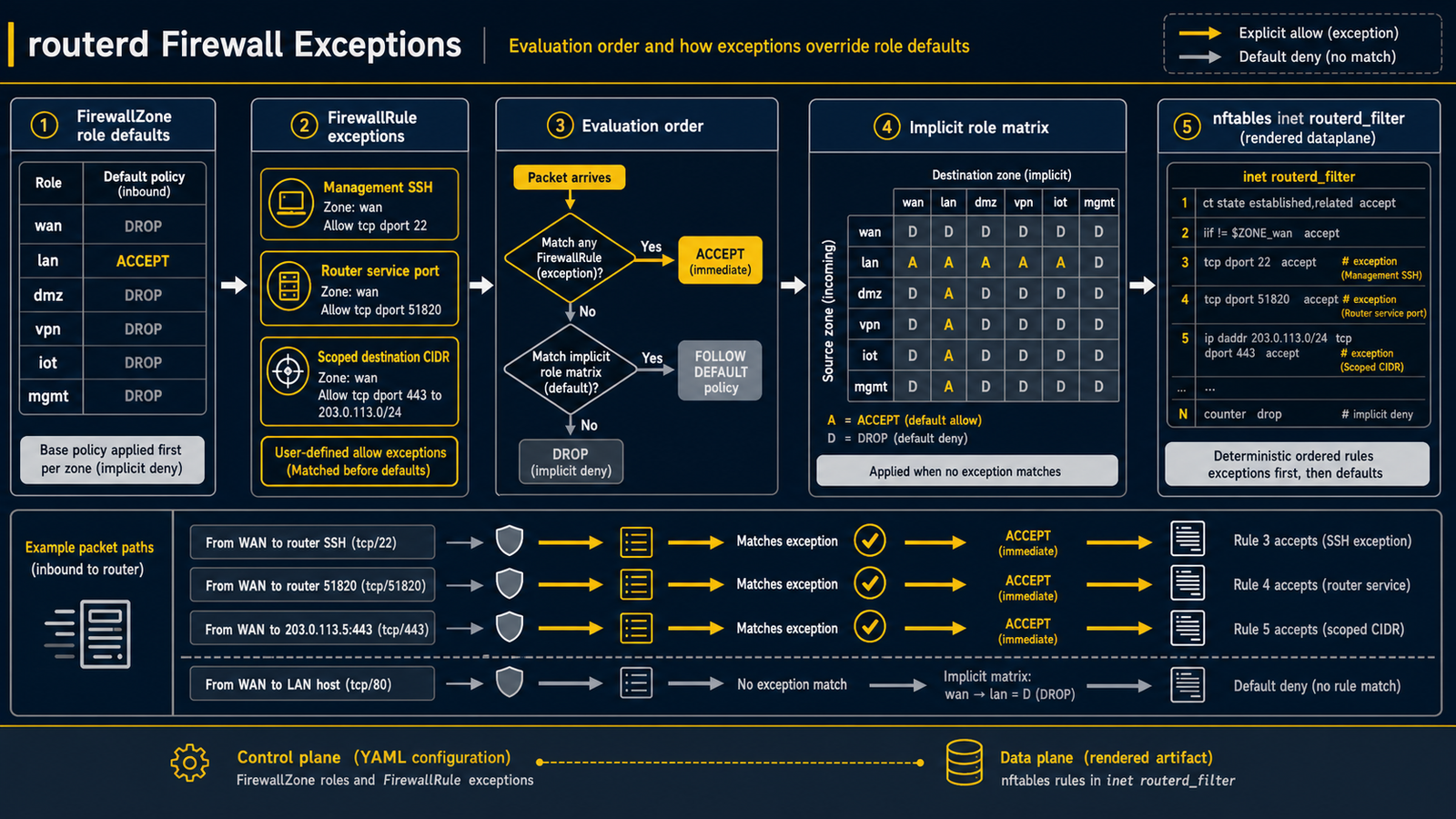

FirewallRule declares an exception that overrides the implicit role matrix. Rules are evaluated before the implicit matrix, and routerd-derived internal openings (DHCP, DNS, DHCPv6-PD, DS-Lite control traffic, etc.) are evaluated before user rules. That ordering keeps managed services alive even when you add restrictive rules.
Example: allow SSH from the management network
- apiVersion: firewall.routerd.net/v1alpha1
kind: FirewallRule
metadata:
name: allow-admin-ssh
spec:
fromZone: management
toZone: self
protocol: tcp
port: 22
action: accept
fromZone and toZone reference FirewallZone names. toZone: self means traffic terminated by the router itself (as opposed to forwarded traffic).
Example: open a service port on the router
- apiVersion: firewall.routerd.net/v1alpha1
kind: FirewallRule
metadata:
name: allow-metrics
spec:
fromZone: lan
toZone: self
protocol: tcp
port: 9100
action: accept
Validating before apply
Use the local simulator to check what the rule would do before you apply it:
routerctl firewall test from=wan to=self proto=tcp dport=22
routerctl describe firewall
The first command reports accept or drop for the specific 5-tuple. The second prints the full effective ruleset including role-matrix defaults and managed openings.
