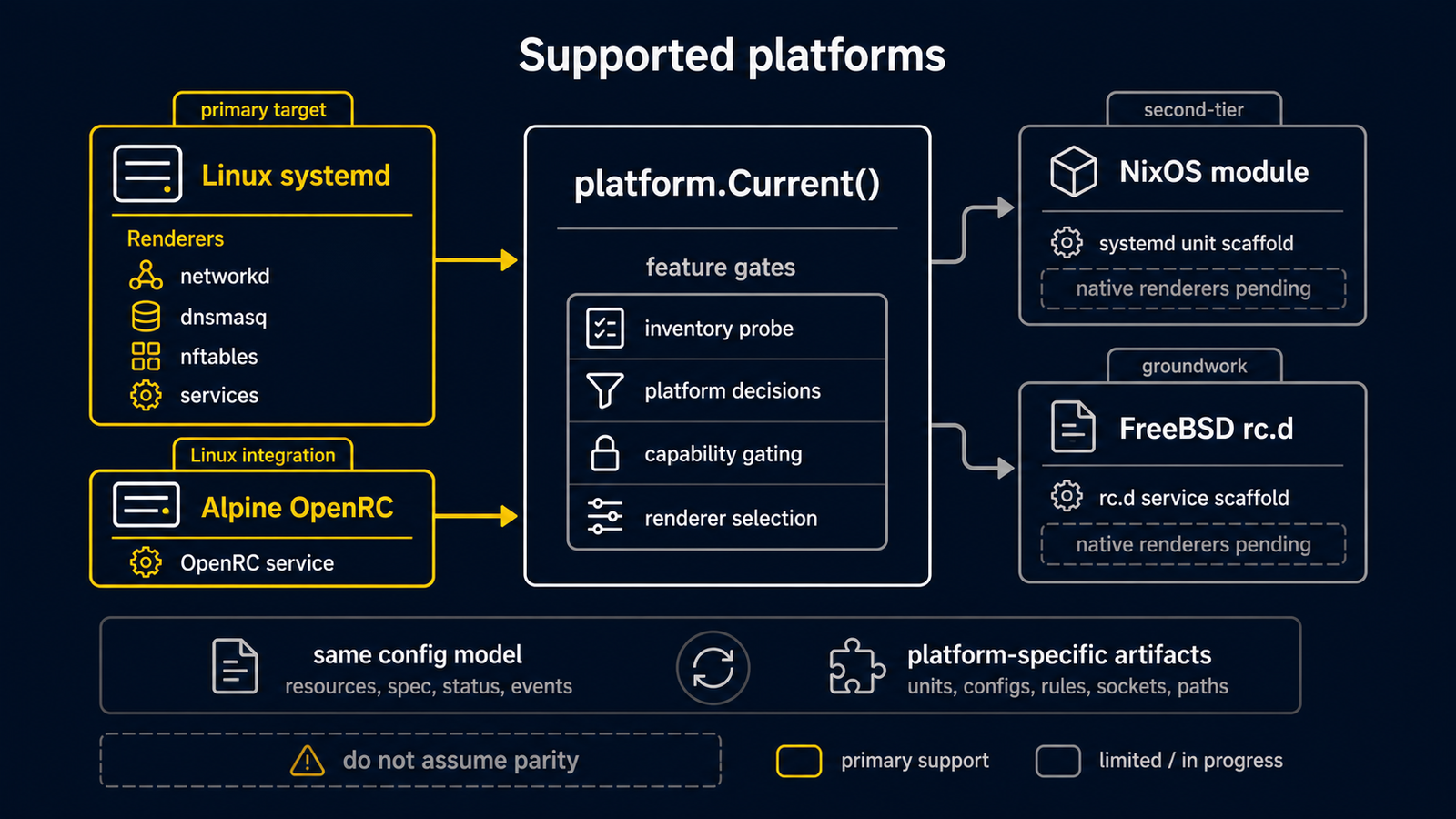

Supported platforms

routerd is designed to be cross-OS, but each platform uses a different host integration model. This page lists the concrete OS surfaces routerd uses on each platform, so you can review generated files and runtime ownership before applying a router configuration.

Linux (Ubuntu / Debian)

Linux with systemd is the primary platform. Release installs land under /usr/local by default. Install from the Linux release archive and run sudo ./install.sh. The installer can install runtime packages with apt-get, dnf, apk, or pacman.

routerd uses the following OS surfaces on Linux:

• systemd unit files
• /run/routerd and /var/lib/routerd for runtime and persistent state
• dnsmasq for DHCPv4, DHCPv6, DHCP relay, and Router Advertisement
• nftables for filtering and NAT
• conntrack for connection observation
• iproute2 for interfaces and routes
• long-lived routerd-bgp GoBGP daemon for BGP peering and route installation
• keepalived for VRRP VIP ownership
• pppd / rp-pppoe for PPPoE
• WireGuard, Tailscale, strongSwan, radvd

Even on Ubuntu, routerd does not assume packages are pre-installed. For first bootstrap, install.sh installs a practical default set. For ongoing declarative management, declare dependencies with the Package resource. The reference list:

Category	Packages
Runtime	dnsmasq-base, nftables, conntrack, iproute2, keepalived, ppp, wireguard-tools, tailscale, tailscale-archive-keyring, strongswan-swanctl, radvd
Diagnostics	dnsutils, iputils-ping, iputils-tracepath, tcpdump, traceroute, net-tools
OS control	procps, systemd, kmod

routerd-dhcpv6-client, routerd-dhcpv4-client, routerd-pppoe-client, and routerd-healthcheck run as systemd services on Linux.

Ubuntu 26.04 LTS (resolute) has been validated with the same Linux data-plane renderers used by Ubuntu 24.04 for managed dnsmasq, nftables, DHCPv6-PD, delegated LAN IPv6 address derivation, and the control API. The host bootstrap did need one OS-level networking adjustment: on interfaces that routerd owns for DHCPv6-PD or LAN RA/DHCPv6 service, configure installer netplan/systemd-networkd so the OS does not run its own DHCPv6 client. Otherwise systemd-networkd can bind UDP port 546 before routerd-dhcpv6-client.

For Ubuntu 26.04 router lab hosts, keep only the management interface on OS DHCP and make routerd-owned WAN/LAN interfaces link-local-only at the OS layer:

network:
  version: 2
  renderer: networkd
  ethernets:
    ens18:
      dhcp4: false
      dhcp6: false
      accept-ra: false
      link-local: [ipv6]
      optional: true
    ens19:
      dhcp4: false
      dhcp6: false
      accept-ra: false
      link-local: [ipv6]
      optional: true
    ens20:
      dhcp4: true
      dhcp6: false
      accept-ra: false
      link-local: [ipv6]
      optional: true

For WAN links that still need the RA-learned IPv6 default route, declare the WAN interface and DHCPv6 / RA resources. routerd derives a systemd-networkd drop-in with IPv6AcceptRA=yes and [IPv6AcceptRA] DHCPv6Client=no, so RA is accepted while the OS DHCPv6 client stays disabled.

Alpine Linux

Alpine is a Linux target for the live ISO and minimal installed hosts. It does not have Ubuntu feature parity yet: routerd uses the Linux data plane tools where available, but service activation is OpenRC-oriented instead of systemd.

Implemented:

• live ISO boot and USB persistence flow on Alpine
• dependency bootstrap through install.sh with apk
• platform detection through pkg/platform with HasOpenRC
• Package resources with os: alpine and manager: apk
• CI smoke coverage for Alpine install.sh --list-deps and a minimal Package validate/dry-run apply path
• routerd render alpine --out-dir for OpenRC scripts and dnsmasq config
• OpenRC script rendering for generated routerd service artifacts, managed dnsmasq, routerd-healthcheck, DNS resolver, firewall logger, PPPoE, and Tailscale
• apply-time OpenRC activation through rc-update / rc-service, with idempotency checks before enable/start/restart operations
• make alpine-vm-smoke harness for installed Alpine guests
• Linux nftables, conntrack, iproute2, dnsmasq, routerd-bgp GoBGP, keepalived, PPP, WireGuard, strongSwan, radvd, and diagnostic package names documented for Alpine

Backlog before calling Alpine equivalent to Ubuntu:

• materialize DNS resolver runtime config before activating synthesized OpenRC DNS resolver services; the script is rendered but not enabled or started immediately
• persistent installed-host networking ownership outside the live ISO bootstrap
• promote the Alpine installed-host smoke harness into a regular VM CI job that exercises OpenRC activation and real package-manager command paths
• richer docs for systemd-only resources that stay unsupported on OpenRC

Category	Packages
Runtime	dnsmasq, nftables, conntrack-tools, iproute2, keepalived, ppp, ppp-pppoe, wireguard-tools, strongswan, radvd
Diagnostics	bind-tools, iputils, iputils-tracepath, tcpdump
OS control	alpine-conf, kmod, util-linux, e2fsprogs, dosfstools, exfatprogs

NixOS

NixOS uses the same routerd resource model as Ubuntu, but activation goes through the NixOS module system. Instead of writing transient systemd units, routerd targets /etc/nixos/routerd-generated.nix and lets nixos-rebuild test / nixos-rebuild switch manage activation.

Implemented:

• real-machine validation for NixOS activation, reboot recovery, DHCPv6-PD, dnsmasq LAN service, DNS resolver, DS-Lite, nftables NAT/firewall, health checks, Web Console generation diffs, and OpenTelemetry export
• systemd unit generation for routerd-dhcpv6-client
• systemd unit generation for routerd-dhcpv4-client
• systemd unit generation for routerd-pppoe-client
• NixOS module generation for Package overrides, SysctlProfile, derived host runtime artifacts, and generated service artifacts
• automatic nixos-rebuild test from routerctl apply --dry-run
• automatic nixos-rebuild switch from routerctl apply
• rollback attempt with nixos-rebuild switch --rollback when a NixOS switch fails
• generation tracking before and after nixos-rebuild
• DHCPv6-PD reaches Bound
• generated routerd-dnsmasq service when DHCP or RA resources require dnsmasq
• generated routerd-dnsmasq service uses an absolute NixOS system-profile binary path and explicit root execution options so hardened systemd activation does not depend on shell PATH lookup or privilege dropping
• generated DNS resolver, HealthCheck, firewall logger, Tailscale, DHCPv4 client, DHCPv6 client, and PPPoE client services
• generated networking.nftables.enable = true when NAT, firewall, policy routing, or Path MTU resources require nftables
• WireGuard, Tailscale, VXLAN, and native systemd-networkd VRF generation
• Linux runtime resources that are not native NixOS network declarations are reconciled by routerd.service after NixOS activation

On NixOS, populate systemd.services.routerd.path with the commands routerd needs. install.sh warns instead of calling nix-env, because NixOS package state should remain declarative. When Package resources have os: nixos, routerd does not install packages imperatively at runtime. It writes them to environment.systemPackages in /etc/nixos/routerd-generated.nix, then lets nixos-rebuild activate the system profile.

NixOS post-activation inventory:

Area	Current owner	Notes
Packages and routerd service path	Generated NixOS module	Package resources become environment.systemPackages; routerd does not call nix-env.
Helper daemon service definitions	Generated NixOS module	DHCPv4, DHCPv6, PPPoE, HealthCheck, firewall logger, Tailscale, and dnsmasq are expressed as systemd services in Nix.
nftables enablement	Generated NixOS module	NAT, firewall, policy routing, and Path MTU resources set networking.nftables.enable = true when needed.
Runtime-only network mutations	routerd.service after activation	Dynamic DS-Lite, transient route decisions, and other status-derived mutations still need runtime reconciliation.
Legacy runtime dnsmasq unit cleanup	routerd.service after activation	Kept temporarily to remove older /run/systemd/system/routerd-dnsmasq.service artifacts during migration. Remove after deployed hosts have passed one release cycle.

Category	Packages
Runtime	dnsmasq, nftables, conntrack-tools, iproute2, keepalived, ppp, wireguard-tools, tailscale, strongswan, radvd
Diagnostics	bind, iputils, tcpdump, traceroute, nettools
OS control	procps, systemd, kmod

FreeBSD

FreeBSD uses the same routerd resource model as Ubuntu, mapped onto FreeBSD host mechanisms. The DHCPv6-PD client runs under daemon(8) and reliably keeps a lease bound. routerd maps resources to FreeBSD-native rc.conf, rc.d, pf, mpd5, ifconfig, and dnsmasq surfaces instead of using Linux tools. Install from the FreeBSD release archive and run sudo ./install.sh. The installer uses pkg for ports packages and leaves base-system tools alone.

Implemented:

• DHCPv6-PD daemon with persistent lease
• WireGuard interop with Linux / NixOS
• VXLAN over WireGuard
• PPPoE via generated mpd5.conf, mpd_enable, and mpd5 service restart
• Package install through pkg
• render freebsd --out-dir emits install-packages.sh for reviewable pkg install bootstrap
• FreeBSD-idiomatic rc.conf.d output for gateway_enable, ipv6_gateway_enable, cloned_interfaces, ifconfig_*, static_routes, ipv6_static_routes, pf_enable, pflog_enable, and mpd_enable
• dhclient.conf, mpd5.conf, pf.conf, dnsmasq config, and generated rc.d scripts from routerd render freebsd --out-dir
• pf rendering from FirewallZone, FirewallPolicy, FirewallRule
• pf NAT rendering from NAT44Rule
• automatic pfctl -nf validation and pfctl -f application for generated pf.conf
• conntrack-equivalent traffic flows from pfctl -ss -v
• pflog0 ingestion through direct BPF reads for firewall logs; packet parsing avoids dependency on vendor-specific tcpdump text formats
• managed dnsmasq for DHCPv4, DHCPv6, and Router Advertisement
• dnsmasq lease persistence under /var/db/routerd/dnsmasq
• dnsmasq config validation with dnsmasq --test before service restart
• automatic pf holes for routerd-owned DHCP, DNS, RA, DHCPv6-PD, DS-Lite, WireGuard, and healthcheck traffic
• DNS resolver daemon builds on FreeBSD; DNSUpstream.spec.sourceInterface can target fib:<n> for FIB-bound upstream routing
• cloud VPN IPsecConnection validates and renders strongSwan swanctl connection definitions; live cloud gateway validation remains deployment-specific
• rc.d script generation, installation, and service <name> onestart activation from generated service artifacts
• rc.d script generation for routerd-healthcheck
• rc.d script generation for routerd-firewall-logger with direct pflog0 input
• rc.d script generation for TailscaleNode
• CARP-backed VirtualAddress in mode: vrrp, configured on the parent interface with vhid
• dnsmasq rc.d ordering after mpd5 for PPPoE coexistence
• Static DS-Lite gif tunnel rendering
• Dynamic DS-Lite apply from static AFTR IPv6, AFTR FQDN, or delegated-address local source

ClientPolicy is the one firewall feature that is intentionally Linux-only for now. It depends on nftables Ethernet source address sets for MAC-based guest isolation. The FreeBSD pf renderer rejects the resource with an explicit error instead of applying a weaker no-op policy.

FreeBSD does not use Linux-specific nftables, conntrack, or iproute2. The Package examples declare FreeBSD-native replacements: pf and pflog0 from the base system, mpd5 for PPPoE, ifconfig gif for DS-Lite, dnsmasq for LAN DHCP/RA service, and ports packages for WireGuard, Tailscale, and strongSwan.

Category	Packages
Runtime	dnsmasq, wireguard-tools, tailscale, strongswan, mpd5
Diagnostics	bind-tools, tcpdump
Base system	ifconfig, sysctl, service, sysrc, netstat, sockstat, ping, traceroute

routerd render freebsd --out-dir <dir> produces:

• rc.conf.d-routerd
• dhclient.conf
• mpd5.conf
• pf.conf
• dnsmasq.conf
• rc.d-*

routerctl apply installs the generated pf.conf, validates it with pfctl -nf, applies it with pfctl -f, validates dnsmasq with dnsmasq --test, starts generated rc.d scripts with service <name> onestart, and applies dynamic DS-Lite tunnels with ifconfig gif when static rc.conf rendering is not enough. Use routerd render freebsd for review and offline validation before pointing real traffic at a FreeBSD host.

Platform parity backlog

These are the current known level differences to track when comparing Ubuntu, NixOS, FreeBSD, and Alpine:

Area	Current gap	Backlog
CI/runtime coverage	CI runs unit tests and Linux static checks on Ubuntu. Alpine now has a host-independent installer dependency smoke plus minimal Package validate/dry-run coverage and an installed-host smoke harness, but Alpine activation is not yet a regular VM job. FreeBSD is cross-built in release, and NixOS activation is not yet a regular VM job.	Add FreeBSD VM, NixOS VM, and Alpine VM smoke jobs that run validate, plan, dry-run apply, real package-manager checks, service activation, and renderer syntax checks.
Alpine service manager	Alpine now has OpenRC rendering for generated routerd service artifacts, managed dnsmasq, routerd-healthcheck, DNS resolver, firewall logger, PPPoE, and Tailscale. Apply-time activation uses rc-update / rc-service and avoids duplicate enable/start/restart work when state is unchanged. DNS resolver scripts are enabled and started after routerd materializes the runtime config.	Broaden installed-host networking ownership and promote the Alpine smoke harness to CI.
NixOS imperative leftovers	NixOS renders the module and lets nixos-rebuild activate it. Runtime-only network mutations and legacy dnsmasq unit cleanup still run from routerd.service after activation. The cleanup is intentionally kept for the first release that contains generated NixOS dnsmasq service ownership.	Remove legacy dnsmasq cleanup after that release cycle, reduce post-activation reconciliation where NixOS has native declarations, and keep tests around remaining runtime-only resources.
FreeBSD feature exceptions	ClientPolicy remains Linux-only because it depends on nftables Ethernet source address sets.	Keep rejecting it explicitly, and only add pf support after a design that preserves the same isolation semantics.
Package bootstrap	Ubuntu, Alpine, and FreeBSD can install packages imperatively; NixOS intentionally renders package declarations instead. Schema, validation, examples, installer dependency lists, and CI smoke coverage now include apk.	Keep schema, validation, installer package lists, examples, and generated docs in sync for apt, apk, pkg, and Nix declarations.

Implementation guideline for OS abstraction

When you add a new OS-specific behaviour, do not branch on runtime.GOOS in business logic. Use the pkg/platform layer (platform.Features) or Go build tags to keep the boundaries explicit. Failing fast at validation or planning is preferred over surprising the operator at runtime on an unsupported OS.
