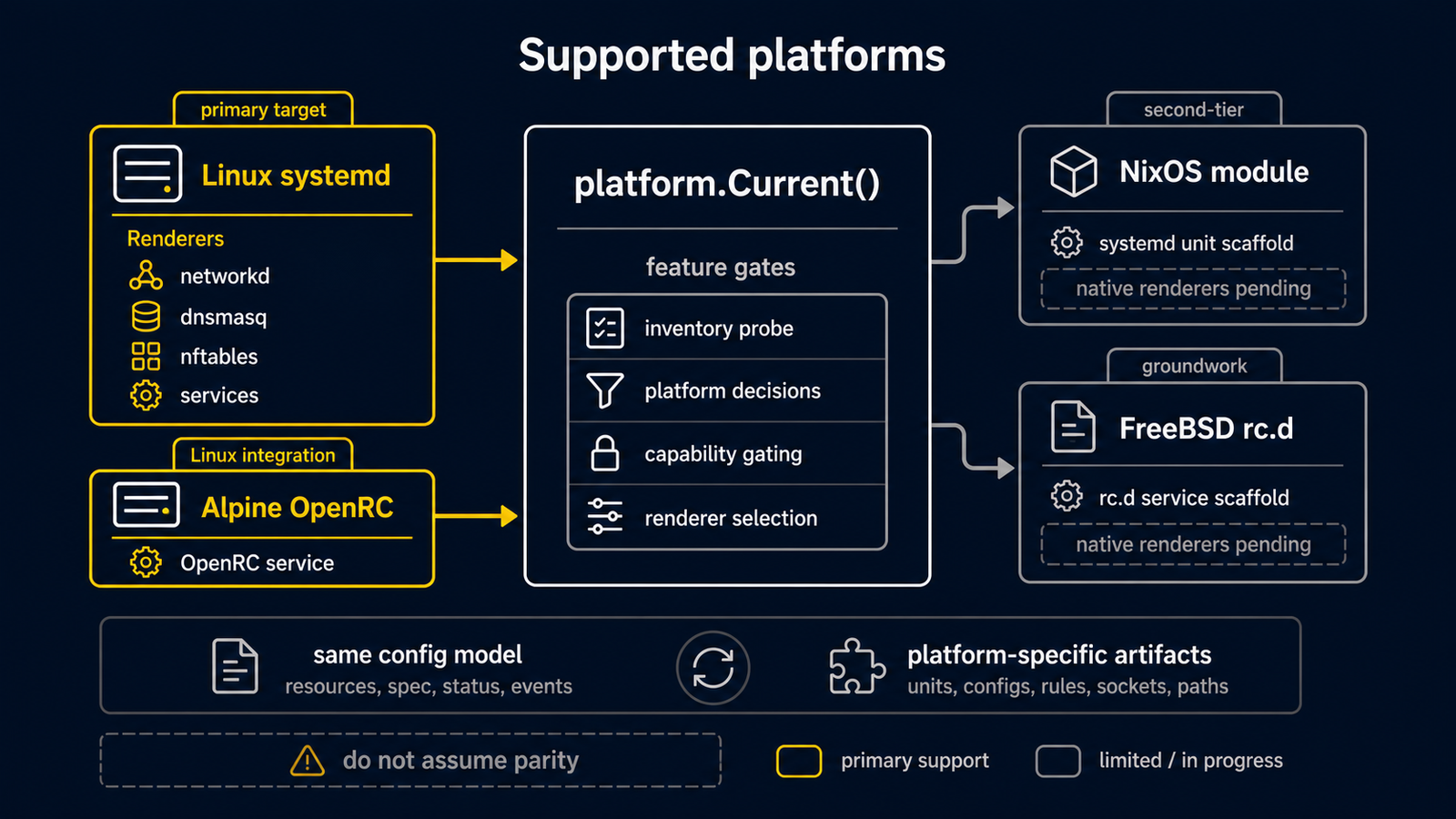

Supported platforms

routerd is designed to be cross-OS, but the implementation is at different maturity levels per platform. This page lists what is implemented, what is groundwork, and what is out of scope, so you can pick a platform with a clear understanding of the current limits.

Linux (Ubuntu / Debian)

Linux is the primary platform. Source installs land under /usr/local by default.

routerd uses the following OS surfaces on Linux:

• systemd unit files
• /run/routerd and /var/lib/routerd for runtime and persistent state
• dnsmasq for DHCPv4, DHCPv6, DHCP relay, and Router Advertisement
• nftables for filtering and NAT
• conntrack for connection observation
• iproute2 for interfaces and routes
• pppd / rp-pppoe for PPPoE
• WireGuard, Tailscale, strongSwan, radvd

Even on Ubuntu, routerd does not assume packages are pre-installed. Declare dependencies with the Package resource. The reference list:

Category	Packages
Runtime	dnsmasq-base, nftables, conntrack, iproute2, ppp, wireguard-tools, tailscale, tailscale-archive-keyring, strongswan-swanctl, radvd
Diagnostics	dnsutils, iputils-ping, iputils-tracepath, tcpdump, traceroute, net-tools
OS control	procps, systemd, kmod

routerd-dhcpv6-client, routerd-dhcpv4-client, routerd-pppoe-client, and routerd-healthcheck run as systemd services on Linux.

NixOS

NixOS is a first-class secondary platform. Instead of writing transient systemd units, routerd targets /etc/nixos/routerd-generated.nix and lets nixos-rebuild test / nixos-rebuild switch manage activation.

Implemented:

• systemd unit generation for routerd-dhcpv6-client
• NixOS module generation for Package, SysctlProfile, NetworkAdoption, SystemdUnit
• automatic nixos-rebuild test from routerd apply --dry-run
• automatic nixos-rebuild switch from routerd apply
• DHCPv6-PD reaches Bound
• WireGuard, Tailscale, and VXLAN coverage
• Partial VRF coverage

Not yet covered:

• nftables, dnsmasq, DNS resolver, HealthCheck and other long-running daemons end-to-end
• Full rollback orchestration across routerd state and NixOS generations

On NixOS, populate systemd.services.routerd.path with the commands routerd needs. When Package resources have os: nixos, routerd does not install packages imperatively at runtime. It writes them to environment.systemPackages in /etc/nixos/routerd-generated.nix, then lets nixos-rebuild activate the system profile.

Category	Packages
Runtime	dnsmasq, nftables, conntrack-tools, iproute2, ppp, wireguard-tools, tailscale, strongswan, radvd
Diagnostics	bind, iputils, tcpdump, traceroute, nettools
OS control	procps, systemd, kmod

FreeBSD

FreeBSD is the other secondary platform. The DHCPv6-PD client runs under daemon(8) and reliably keeps a lease bound. Most generators have a working render path, but production-grade application is still maturing.

Implemented:

• DHCPv6-PD daemon with persistent lease
• WireGuard interop with Linux / NixOS
• VXLAN over WireGuard
• PPPoE skeleton
• Package install through pkg
• render freebsd --out-dir emits install-packages.sh for reviewable pkg install bootstrap
• pf rendering from FirewallZone, FirewallPolicy, FirewallRule
• pf NAT rendering from IPv4SourceNAT and NAT44Rule
• automatic pfctl -nf validation and pfctl -f application for generated pf.conf
• conntrack-equivalent traffic flows from pfctl -ss -v
• pflog0 ingestion through direct BPF reads for firewall logs
• DNS resolver daemon builds on FreeBSD; viaInterface can target fib:<n> for FIB-bound upstream routing
• rc.d script generation, installation, and service <name> onestart activation from SystemdUnit
• dnsmasq rc.d ordering after mpd5 for PPPoE coexistence
• Static DS-Lite gif tunnel rendering

Not yet covered:

• Full FreeBSD-idiomatic network configuration generation
• Dynamic DS-Lite from AFTR FQDN or delegated address
• Vendor-specific pf log format variants
• HealthCheck and DHCP server long-running daemons on FreeBSD

FreeBSD does not use Linux-specific nftables, conntrack, or iproute2. The Package examples for FreeBSD only cover what is already ported or has a working skeleton.

Category	Packages
Runtime	dnsmasq, wireguard-tools, strongswan, mpd5
Diagnostics	bind-tools
Base system	ifconfig, sysctl, service, sysrc, netstat, sockstat, ping, traceroute

routerd render freebsd --out-dir <dir> produces:

• rc.conf.d-routerd
• dhclient.conf
• mpd5.conf
• pf.conf
• rc.d-*

routerd apply installs the generated pf.conf, validates it with pfctl -nf, applies it with pfctl -f, and starts generated rc.d scripts with service <name> onestart when they are not already running. Use routerd render freebsd for review and offline validation before pointing real traffic at a FreeBSD host.

Implementation guideline for OS abstraction

When you add a new OS-specific behaviour, do not branch on runtime.GOOS in business logic. Use the pkg/platform layer (platform.Features) or Go build tags to keep the boundaries explicit. Failing fast at validation or planning is preferred over surprising the operator at runtime on an unsupported OS.
