Control API v1alpha1

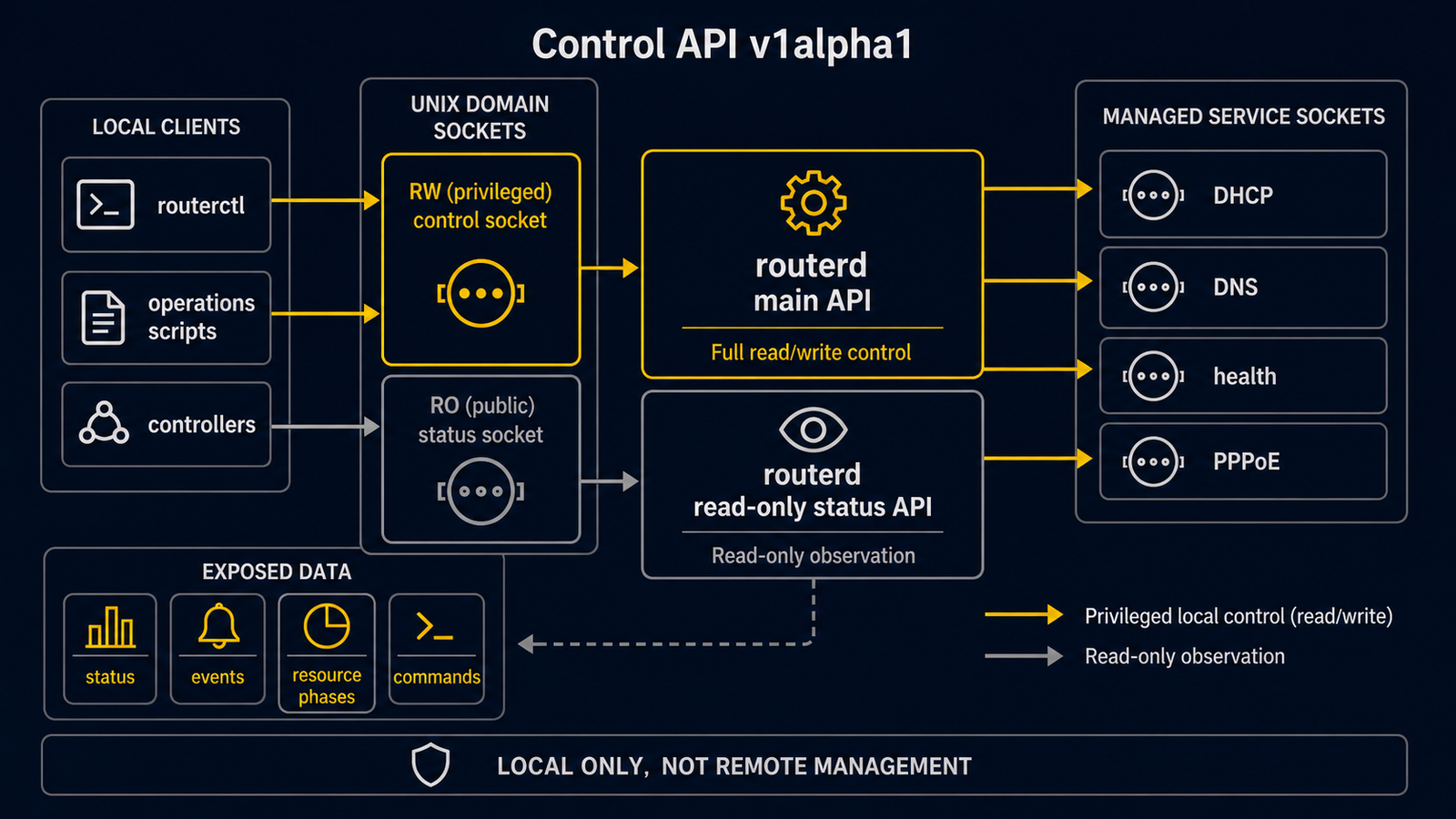

routerd and its managed daemons expose a local HTTP+JSON API over Unix domain sockets. The API is not for remote management — it is the channel through which routerctl, the routerd controllers themselves, and operations scripts on the same host read state.
routerd main process
routerd serve listens on:
/run/routerd/routerd.sock
Read endpoints expose status, events, and resource state. Highlights:
| Method and path | Purpose |
|---|---|
GET /api/control.routerd.net/v1alpha1/status | routerd's own status |
GET /api/control.routerd.net/v1alpha1/connections | live connections from conntrack or pf state |
GET /api/control.routerd.net/v1alpha1/dns-queries | DNS query history |
GET /api/control.routerd.net/v1alpha1/traffic-flows | traffic flow history |
GET /api/control.routerd.net/v1alpha1/firewall-logs | firewall log entries |
Managed daemons
Stateful daemons each have their own socket:
/run/routerd/dhcpv6-client/wan-pd.sock
/run/routerd/dhcpv4-client/wan.sock
/run/routerd/pppoe-client/wan-pppoe.sock
/run/routerd/healthcheck/internet.sock
On FreeBSD, the equivalent path is /var/run/routerd/....
Common daemon endpoints
| Method and path | Purpose |
|---|---|
GET /v1/healthz | Liveness check |
GET /v1/status | Daemon status and related resource state |
GET /v1/events | Event log; supports since, wait, topic query parameters |
POST /v1/commands/reload | Re-read configuration |
POST /v1/commands/renew | Daemon-specific active operation (DHCPv6 Renew, DHCPv4 lease refresh, immediate health probe, etc.) |
POST /v1/commands/stop | Graceful shutdown |
The semantics of renew differ per daemon: DHCPv6 sends a Renew, DHCPv4 refreshes the lease, healthcheck triggers an immediate probe.
Phase vocabulary
ResourceStatus.phase uses a shared vocabulary across resources:
| Phase | Meaning |
|---|---|
Pending | Waiting for required input |
Bound | A lease (DHCP, etc.) is held |
Applied | Host-side state has been applied |
Up | A tunnel or link is up |
Installed | Routes or configuration files are installed |
Healthy | Health check meets its success threshold |
Unhealthy | Health check meets its failure threshold |
Error | An operation failed |
Each phase carries a conditions array. Decisions in client code should be based on phase and conditions, not on log strings.
Events
Events have a topic and attributes:
{
"topic": "routerd.dhcpv6.client.prefix.renewed",
"attributes": {
"resource.kind": "DHCPv6PrefixDelegation",
"resource.name": "wan-pd"
}
}
routerd persists events into SQLite. Managed daemons additionally keep them in their own events.jsonl files. EventRule and DerivedEvent consume this stream to emit virtual events.
