Control API v1alpha1

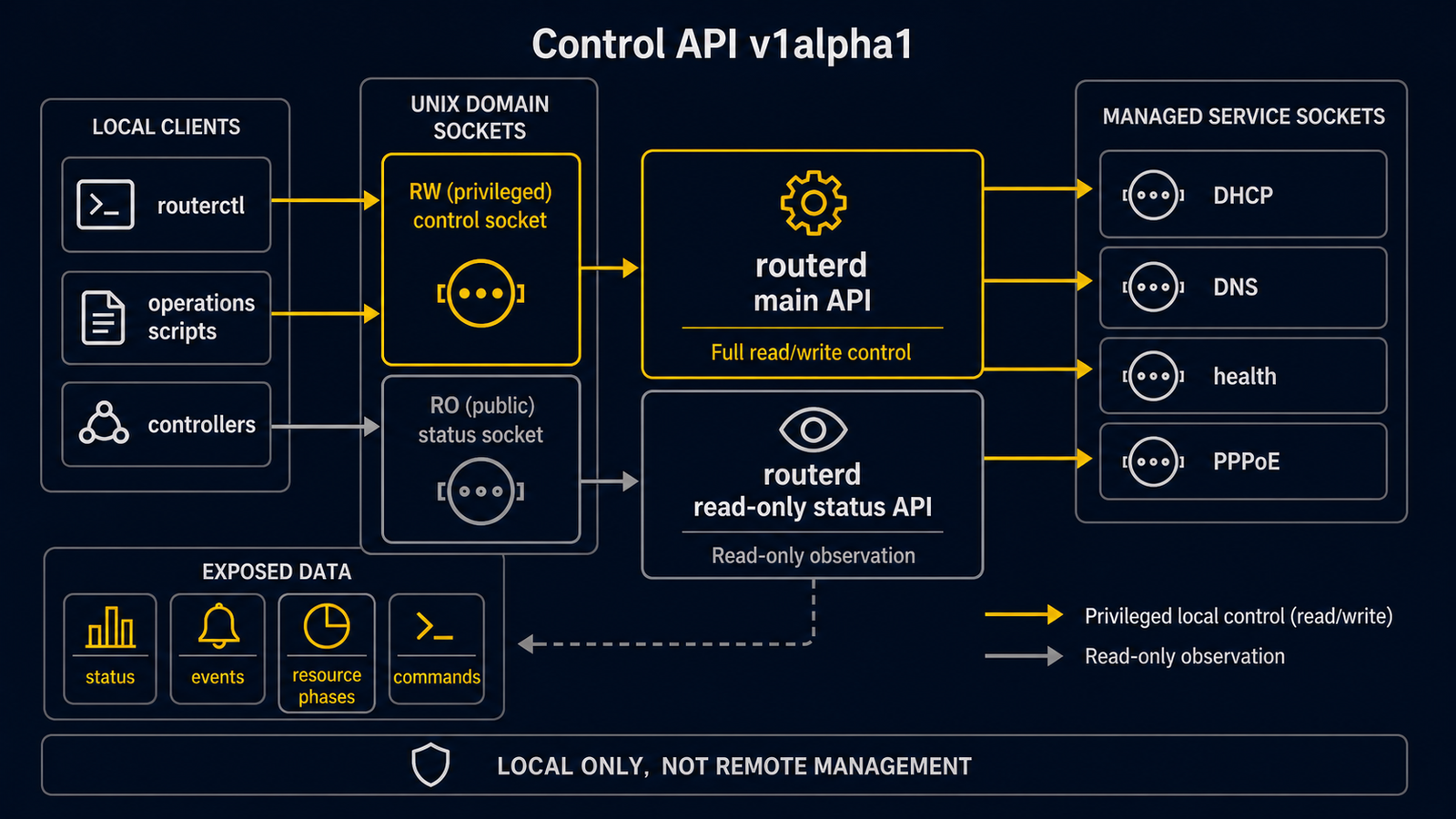

routerd and its managed daemons expose a local HTTP+JSON API over Unix domain sockets. The API is not for remote management — it is the channel through which routerctl, the routerd controllers themselves, and operations scripts on the same host read state.
routerd main process
routerd serve listens on:
/run/routerd/routerd.sock
/run/routerd/routerd-status.sock
The main control socket is intended for privileged local clients and exposes mutating endpoints such as apply and delete. The read-only status socket exposes only status-style endpoints and is safe for regular users to query.
Read endpoints on the main control socket expose status, events, and resource state. Highlights:
| Method and path | Purpose |
|---|---|
GET /api/control.routerd.net/v1alpha1/status | routerd's own status |
GET /api/control.routerd.net/v1alpha1/connections | live connections from conntrack or pf state |
GET /api/control.routerd.net/v1alpha1/dns-queries | DNS query history |
GET /api/control.routerd.net/v1alpha1/traffic-flows | traffic flow history |
GET /api/control.routerd.net/v1alpha1/firewall-logs | firewall log entries |
Controller status
Status.status.controllers and the Controllers endpoint include both the
configured controller mode and runtime reconcile state. Runtime fields include
interval, lastTrigger, lastReconcileTime, nextReconcileTime,
reconcileCount, reconcileErrorCount, consecutiveErrorCount,
currentError, lastDuration, maxDuration, averageDuration, lastError,
lastErrorTime, and lastErrorClearedAt. reconcileErrorCount is cumulative;
use currentError and consecutiveErrorCount to decide whether the controller
is failing now. These fields are observational; clients should tolerate them
being absent before a controller has run.
Managed daemons
Stateful daemons each have their own socket:
/run/routerd/dhcpv6-client/wan-pd.sock
/run/routerd/dhcpv4-client/wan.sock
/run/routerd/pppoe-client/wan-pppoe.sock
/run/routerd/healthcheck/internet.sock
On FreeBSD, the equivalent path is /var/run/routerd/....
Common daemon endpoints
| Method and path | Purpose |
|---|---|
GET /v1/healthz | Liveness check |
GET /v1/status | Daemon status and related resource state |
GET /v1/events | Event log; supports since, wait, topic query parameters |
POST /v1/commands/reload | Re-read configuration |
POST /v1/commands/renew | Daemon-specific active operation (DHCPv6 Renew, DHCPv4 lease refresh, immediate health probe, etc.) |
POST /v1/commands/stop | Graceful shutdown |
The semantics of renew differ per daemon: DHCPv6 sends a Renew, DHCPv4 refreshes the lease, healthcheck triggers an immediate probe.
Phase vocabulary
ResourceStatus.phase uses a shared vocabulary across resources:
| Phase | Meaning |
|---|---|
Pending | Waiting for required input |
Bound | A lease (DHCP, etc.) is held |
Applied | Host-side state has been applied |
Up | A tunnel or link is up |
Installed | Routes or configuration files are installed |
Healthy | Health check meets its success threshold |
Unhealthy | Health check meets its failure threshold |
Error | An operation failed |
Each phase carries a conditions array. Decisions in client code should be based on phase and conditions, not on log strings.
Events
Events have a topic and attributes:
{
"topic": "routerd.dhcpv6.client.prefix.renewed",
"attributes": {
"resource.kind": "DHCPv6PrefixDelegation",
"resource.name": "wan-pd"
}
}
routerd persists events into SQLite. Managed daemons additionally keep them in their own events.jsonl files. EventRule and DerivedEvent consume this stream to emit virtual events.
