State and ownership
routerd separates declared intent from observed state.
YAML is the intent you manage.
SQLite, lease files, and events.jsonl are state that routerd and its dedicated daemons observe.
Where state lives
Linux defaults:
| Kind | Example |
|---|---|
| routerd state database | /var/lib/routerd/routerd.db |
| DHCPv6-PD lease | /var/lib/routerd/dhcpv6-client/wan-pd/lease.json |
| DHCPv4 lease | /var/lib/routerd/dhcpv4-client/wan/lease.json |
| PPPoE state | /var/lib/routerd/pppoe-client/<name>/state.json |
| HealthCheck state | /var/lib/routerd/healthcheck/<name>/state.json |
| Runtime sockets | /run/routerd/.../*.sock |
FreeBSD layouts use /var/run and /var/db instead.

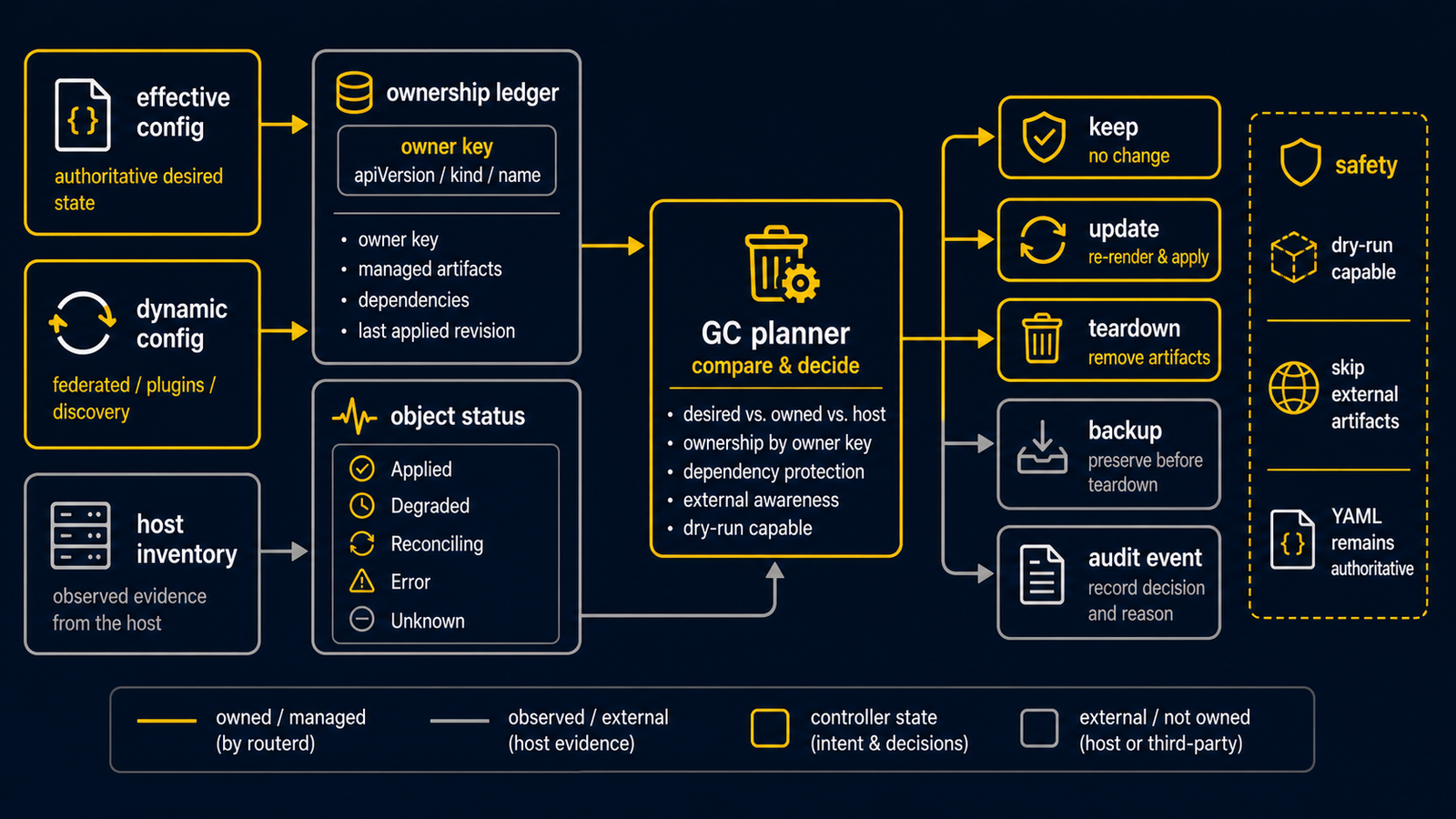

Ownership
Every host-side artifact routerd creates has an owning resource.
For example, the dnsmasq configuration is owned by the DHCP and RA resources, the routerd-dns-resolver configuration by DNSResolver and DNSZone, and the nftables NAT table by NAT44Rule.
Knowing the owner answers three questions:
- Is this artifact safe for routerd to modify?
- When the resource is removed from YAML, should routerd remove the host-side artifact too?
- Does routerd adopt an existing object, or create a new one from scratch?
Don't act on stale state
Leases and observed values are useful, but acting on stale data is dangerous.
DHCPv6-PD prefixes in particular are propagated downstream only while they are confirmed Bound.
When that confirmation is missing, routerd suppresses the matching AAAA records, RA, DHCPv6 server, and LAN IPv6 address applications instead of advertising broken connectivity.
Events
routerd and its daemons record state changes as events.
Events are persisted in the SQLite events table and in per-daemon events.jsonl files.
EventRule and DerivedEvent consume that stream to synthesize virtual state changes.
