DHCP lease sync for HA routers

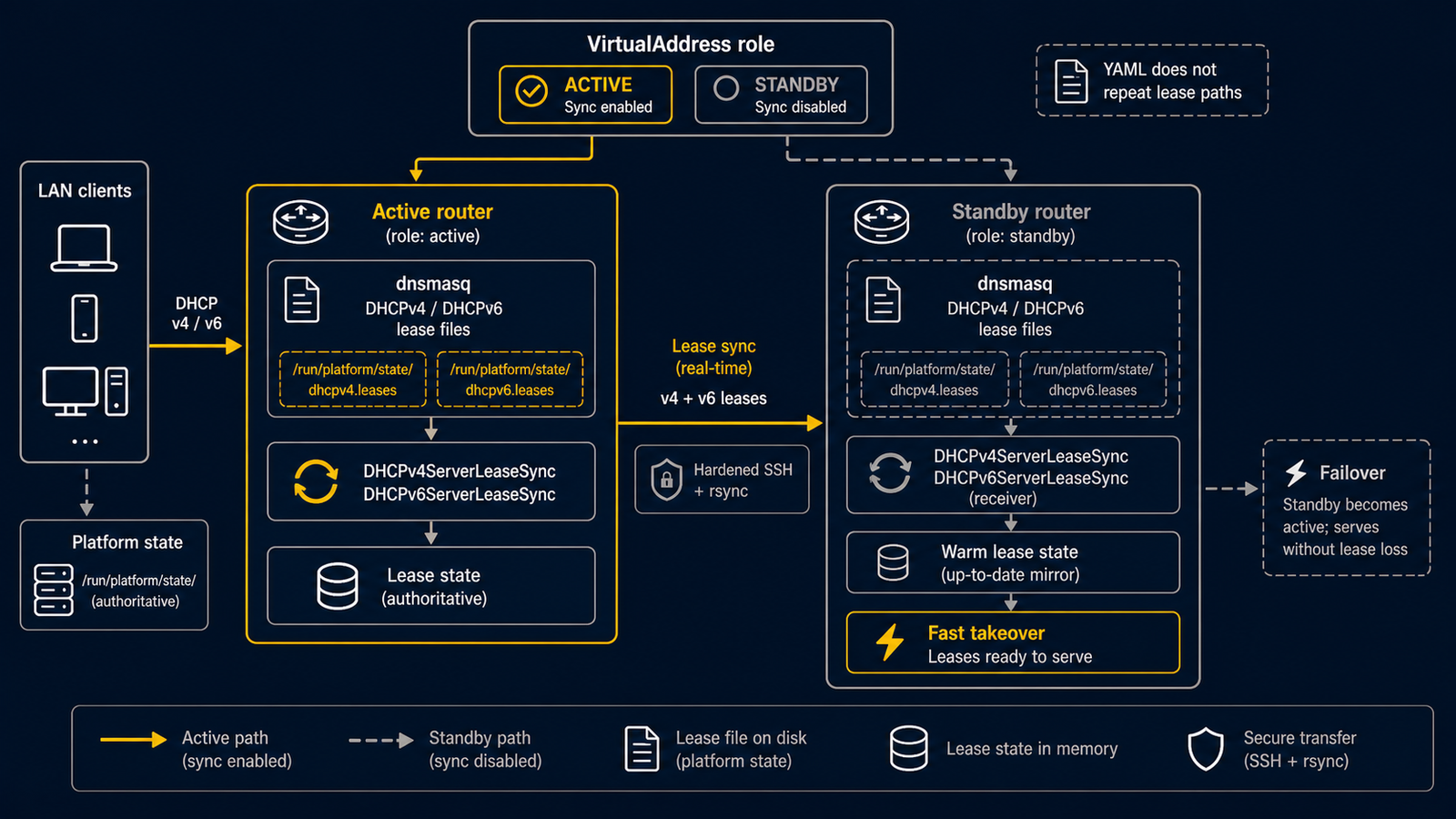

Use DHCPv4ServerLeaseSync, DHCPv6ServerLeaseSync, or DHCPv6PrefixDelegationLeaseSync when two routerd nodes share a DHCP role and the active node must keep the standby node's lease state warm. These resources are intended for active-to-standby sync; they should normally be gated by a VirtualAddress role so the backup does not copy stale leases back to the active node.

The complete example is in examples/dhcp-lease-sync-ha.yaml.

Use persistent defaults

routerd stores dnsmasq server leases under its platform state directory by default. Keep the DHCP resources free of runtime-only lease paths:

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv4Server
  metadata:
    name: lan-dhcpv4
  spec:
    interface: lan
    addressPool:
      start: 192.168.30.100
      end: 192.168.30.199

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6Server
  metadata:
    name: lan-dhcpv6
  spec:
    interface: lan
    mode: stateful
    addressPool:
      start: fd00:30::100
      end: fd00:30::1ff

The sync resource derives the actual file path from the source kind, so the configuration does not need to repeat implementation paths.

Sync only from the active node

Gate the lease sync on the local VirtualAddress status. The sync runs only while the VIP role is master:

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv4ServerLeaseSync
  metadata:
    name: lan-v4-leases
  spec:
    source:
      resource: DHCPv4Server/lan-dhcpv4
    interval: 30s
    targets:
      - name: standby
        host: routerd-standby.lan.example
        user: routerd
    when:
      state:
        VirtualAddress/lan-vip.role:
          equals: master

For a stateful DHCPv6 server, use DHCPv6ServerLeaseSync with source.resource: DHCPv6Server/<name>. For WAN-side prefix delegation, use DHCPv6PrefixDelegationLeaseSync with source.resource: DHCPv6PrefixDelegation/<name>.

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegationLeaseSync
  metadata:
    name: wan-pd-lease
  spec:
    source:
      resource: DHCPv6PrefixDelegation/wan-pd
    targets:
      - name: standby
        host: routerd-standby.lan.example
        user: routerd
    when:
      state:
        VirtualAddress/lan-vip.role:
          equals: master

On promotion, the standby starts from its last synced lease state instead of an empty database.

SSH requirements

Lease sync uses rsync over SSH. Prepare non-interactive SSH before enabling the resource:

• Create or install an SSH key for the routerd process user on the active node.
• Install the public key in authorized_keys for target.user on the standby node.
• Preload or manage known_hosts for target.host; BatchMode=yes prevents interactive host-key prompts.
• Ensure the target user can create the derived destination directory and write the lease file.

routerd adds these SSH defaults when target.sshOptions does not override the same key:

-o BatchMode=yes -o ConnectTimeout=10

It also adds rsync --timeout=60 and runs each sync command with a controller context deadline. Operators can override the SSH options with target.sshOptions and the rsync timeout with target.options:

targets:
  - host: routerd-standby.lan.example
    user: routerd
    sshOptions:
      - -o
      - ConnectTimeout=5
    options:
      - --timeout=30

Check it

routerctl validate -f examples/dhcp-lease-sync-ha.yaml --replace
routerctl plan -f examples/dhcp-lease-sync-ha.yaml --replace
routerctl describe VirtualAddress/lan-vip
routerctl describe DHCPv4ServerLeaseSync/lan-v4-leases

When the node is not master, routerd serve filters the resource through spec.when. When the node is master and the lease file exists, status should move to Synced; if the lease file is missing, it stays Pending until dnsmasq creates it.
