NAT44 session sync for HA routers

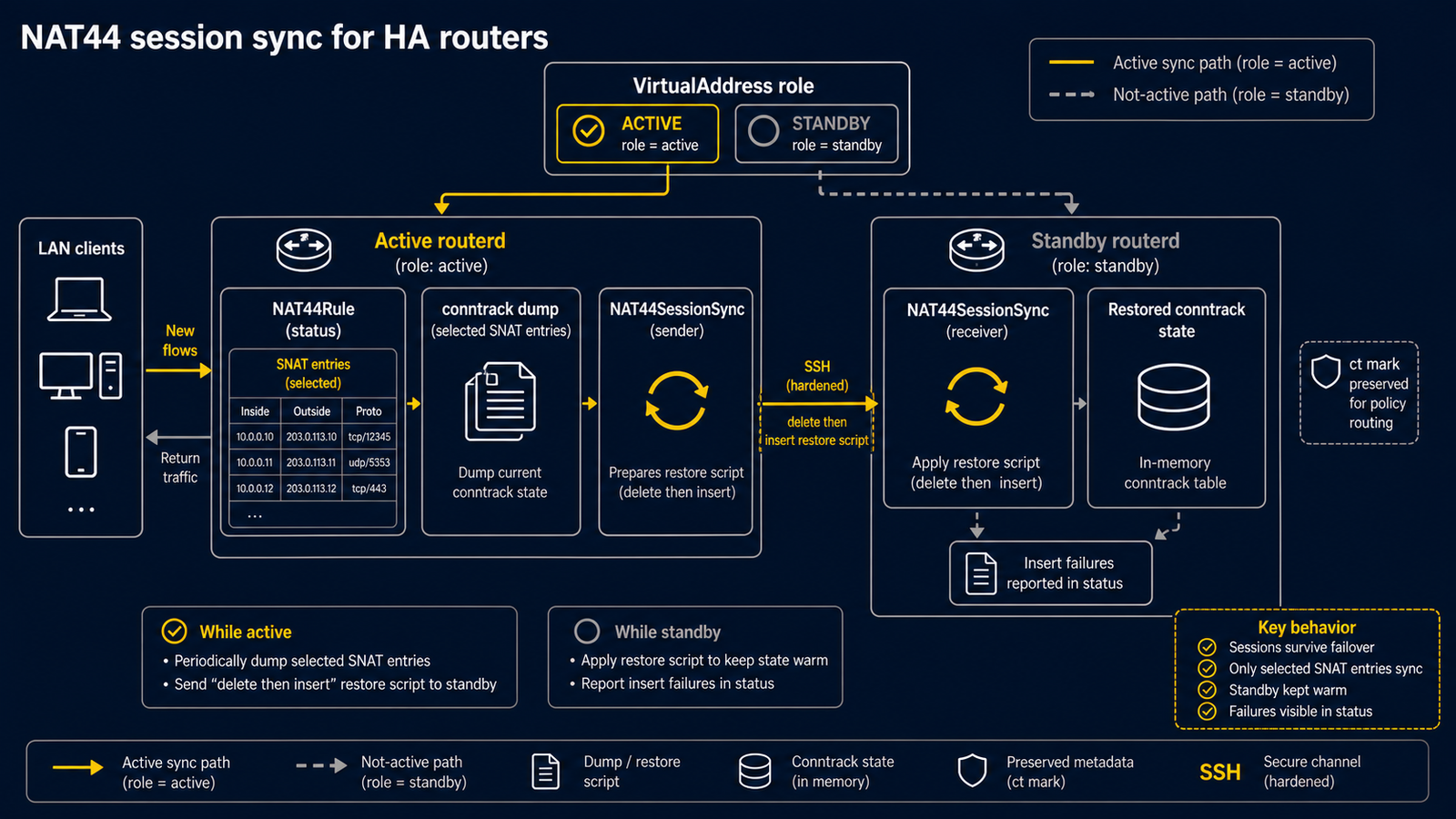

Use NAT44SessionSync when two routerd nodes share a LAN gateway role and the active node should keep selected NAT44 conntrack sessions warm on a standby node. The first implementation is snapshot-based: routerd periodically dumps the local conntrack table for selected SNAT addresses and restores matching entries on each target.

Gate the resource with spec.when so only the active node exports sessions. For VRRP-based failover, the usual gate is the local VirtualAddress role.

Sync selected NAT rules​

Reference the NAT rules whose SNAT addresses should be mirrored. Dynamic SNAT addresses are read from NAT44Rule status, so run the NAT44 controller before expecting session sync to become active.

- apiVersion: net.routerd.net/v1alpha1
  kind: NAT44SessionSync
  metadata:
    name: dslite-abc-sessions
  spec:
    mode: snapshot
    interval: 2s
    natRules:
      - NAT44Rule/lan-to-dslite-a
      - NAT44Rule/lan-to-dslite-b
      - NAT44Rule/lan-to-dslite-c
    excludeNatRules:
      - NAT44Rule/lan-to-dslite-ra
    targets:
      - name: standby
        host: routerd-standby.lan.example
        user: routerd
        restoreCommand: [sudo, conntrack]
    when:
      state:
        VirtualAddress/lan-vip.role:
          equals: master

You can also provide snatAddresses directly when the addresses are static:

spec:
  snatAddresses: [192.0.0.2, 192.0.0.3, 192.0.0.4]

How restore works​

The controller runs:

conntrack --dump -o extended -n <snat-address>

extended output includes the conntrack mark. routerd converts each line into a delete-then-insert restore script and sends it over SSH. Preserving ct mark matters when policy routing uses conntrack marks to keep an existing flow on the same egress path.

restoreCommand defaults to [conntrack]. Use [sudo, conntrack] when the target user needs privilege elevation.

Check it​

routerctl describe NAT44SessionSync/dslite-abc-sessions
routerd serve --controllers nat44-session-sync --config router.yaml

When spec.when is false, status stays Pending with reason WhenFalse. When a referenced NAT44Rule has not resolved snatAddress yet, status stays Pending with reason SNATAddressPending.
