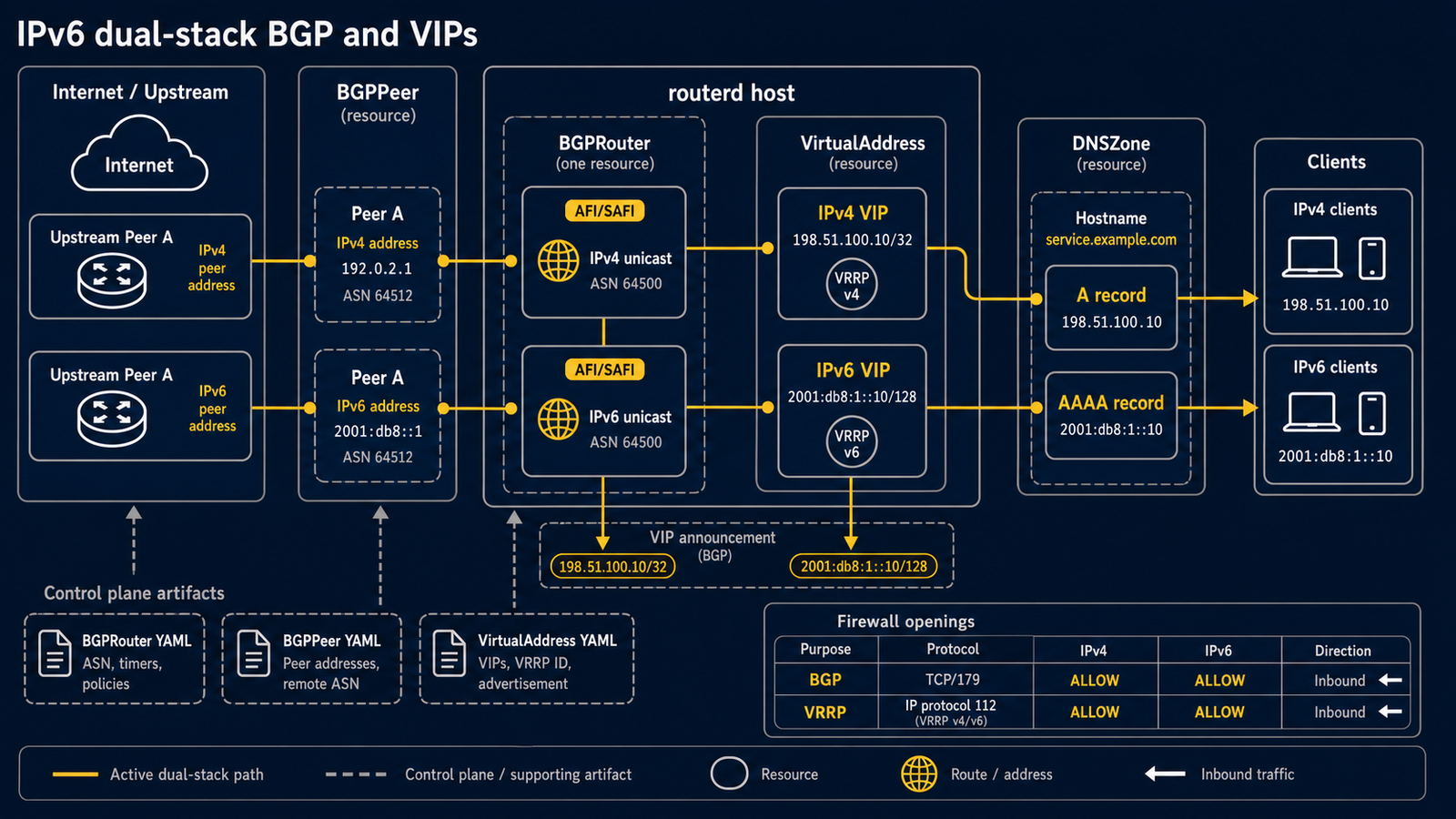

IPv6 dual-stack BGP and VIPs

routerd can render FRR IPv4 and IPv6 unicast BGP in the same BGPRouter. Keep spec.importPolicy.allowedPrefixes, spec.exportPolicy.allowedPrefixes, and redistribute.*.allowedPrefixes as mixed IPv4/IPv6 lists; routerd splits prefixes by address family when it renders FRR prefix-lists, route-maps, and address-family blocks.

Use IPv6 peer addresses directly in BGPPeer.spec.peers:

apiVersion: net.routerd.net/v1alpha1
kind: BGPPeer
metadata:
  name: k8s-speakers
spec:
  routerRef: BGPRouter/lan
  peerASN: 64513
  peers:
    - 192.168.70.21
    - fd00:70::21

For API or service VIPs, use VirtualAddress with spec.family: ipv4 and spec.family: ipv6 as parallel resources. IPv4 VIPs render keepalived VRRPv2-style host prefixes, while IPv6 VIPs render keepalived VRRPv3 with family inet6. On FreeBSD both families use CARP aliases on the parent interface.

apiVersion: net.routerd.net/v1alpha1
kind: VirtualAddress
metadata:
  name: k8s-api-vip-v6
spec:
  interface: lan
  address: fd00:70::10/128
  family: ipv6
  hostname: k8s-api.cluster.example
  mode: vrrp
  vrrp:
    virtualRouterID: 71
    priority: 150
    peers:
      - fd00:70::3

When both VIP resources use the same hostname, a matching DNSResolver and served DNSZone automatically receive A and AAAA records. The firewall renderer also opens BGP TCP/179 and both IPv4 and IPv6 VRRP protocol 112 control traffic for routerd-managed resources.

See examples/dualstack-bgp.yaml for the BGP-only shape and examples/k8s-api-vip-dualstack.yaml for a Kubernetes API VIP pattern.
