DNS resolver

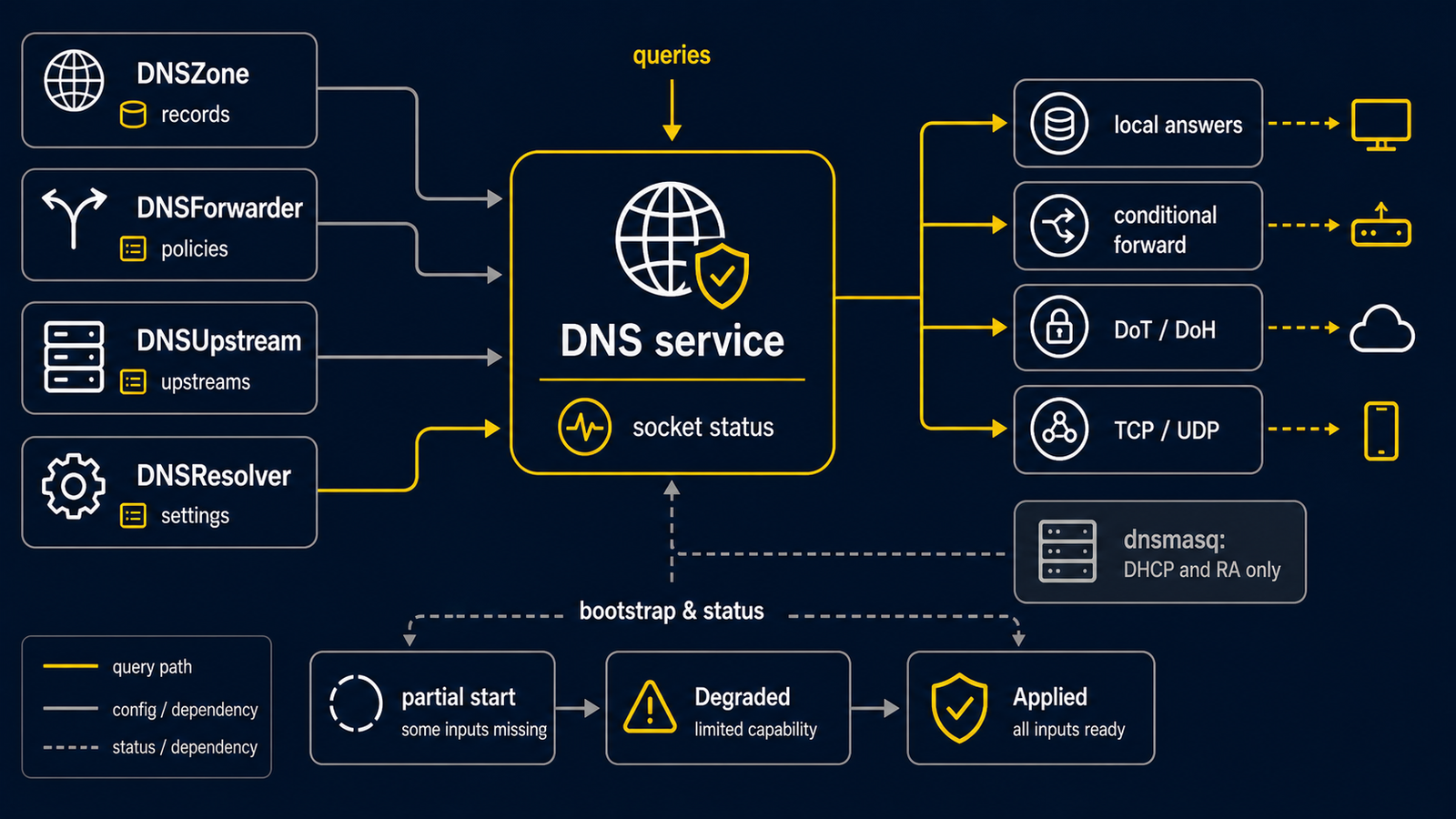

routerd splits DNS into two resource kinds with a clear boundary between authoritative data and the resolver process.

DNSZone owns local authoritative data. It stores manual records and records derived from DHCP leases.

DNSResolver owns the daemon instance. It defines listen addresses, source ordering, upstream selection, and cache policy. Each DNSResolver resource starts one routerd-dns-resolver process.

Source ordering​

DNSResolver.spec.sources is evaluated in order. A zone source answers from DNSZone. A forward source sends matching zones to a selected upstream. An upstream source handles the default recursive path.

The resolver supports DoH, DoT, DoQ, and plain UDP DNS. It tries upstreams by priority and falls back when a higher source fails.

Multiple listen profiles​

spec.listen is a list. Each entry can select a subset of source names. This allows LAN and VPN listeners to behave differently while sharing one resolver resource.

Use listen[].addressFrom when a listen address comes from another resource status. This keeps the dependency explicit and lets the controller reconfigure the daemon when the source resource changes.

listen:
  - name: lan
    addresses:
      - 192.0.2.1
    addressFrom:
      - resource: IPv6DelegatedAddress/lan-base
        field: address
    port: 53

If a required address source is not available yet, the resolver stays Pending(AddressUnresolved) instead of starting with a stale address.

Dynamic zone records​

DNSZone.spec.records[].ipv4 and ipv6 are literal addresses. Use ipv4From or ipv6From when a record address comes from another resource status.

records:
  - hostname: router
    ipv4From:
      resource: IPv4StaticAddress/lan-base
      field: address
    ipv6From:
      resource: IPv6DelegatedAddress/lan-base
      field: address

If a required record source is not available yet, the record field is marked in DNSZone.status.pendingRecords. The resolver is regenerated when the source resource changes, and the record is published after the field resolves.

Network-constrained upstreams​

sources[].viaInterface binds outgoing queries to a specific interface on Linux. Use a literal OS interface name, for example ens18 or wg0. When a tunnel or VRF resource creates that interface, make the dependency explicit with resource ownership or ordering and keep the resolver pending until the interface exists.

sources[].bootstrapResolver supplies DNS server addresses for resolving DoH and DoT endpoint names. This is useful when the endpoint name is only resolvable inside an access network.

Use upstreamFrom when the upstream server list comes from another resource status.

sources:
  - name: ngn-aftr
    kind: forward
    match:
      - transix.jp
    upstreamFrom:
      - resource: DHCPv6Information/wan-info
        field: dnsServers

dnsmasq boundary​

dnsmasq is now limited to DHCPv4, DHCPv6, DHCP relay, and RA. It does not generate server=, local=, or host-record= lines. All DNS answering and forwarding goes through routerd-dns-resolver.
