Replacing a hypervisor-to-hypervisor overlay VPN

Scenario​

You run a hypervisor cluster (Proxmox VE, KVM, etc.) where the inter-node bridge currently rides on top of a heavyweight overlay VPN — for example, a vendor-supplied SoftEther bridge or another tap-based tunnel. Symptoms include poor throughput between guests on different hosts, MTU mismatches, and operational fragility because the overlay is a separate product from the hypervisor and the router.

You want to replace that overlay with something:

  • declaratively configured alongside the rest of the network
  • routed (L3) by default, with L2 extension only where strictly necessary
  • predictable on MTU
  • observable through the same routerctl and Web Console you already use

How routerd solves it​

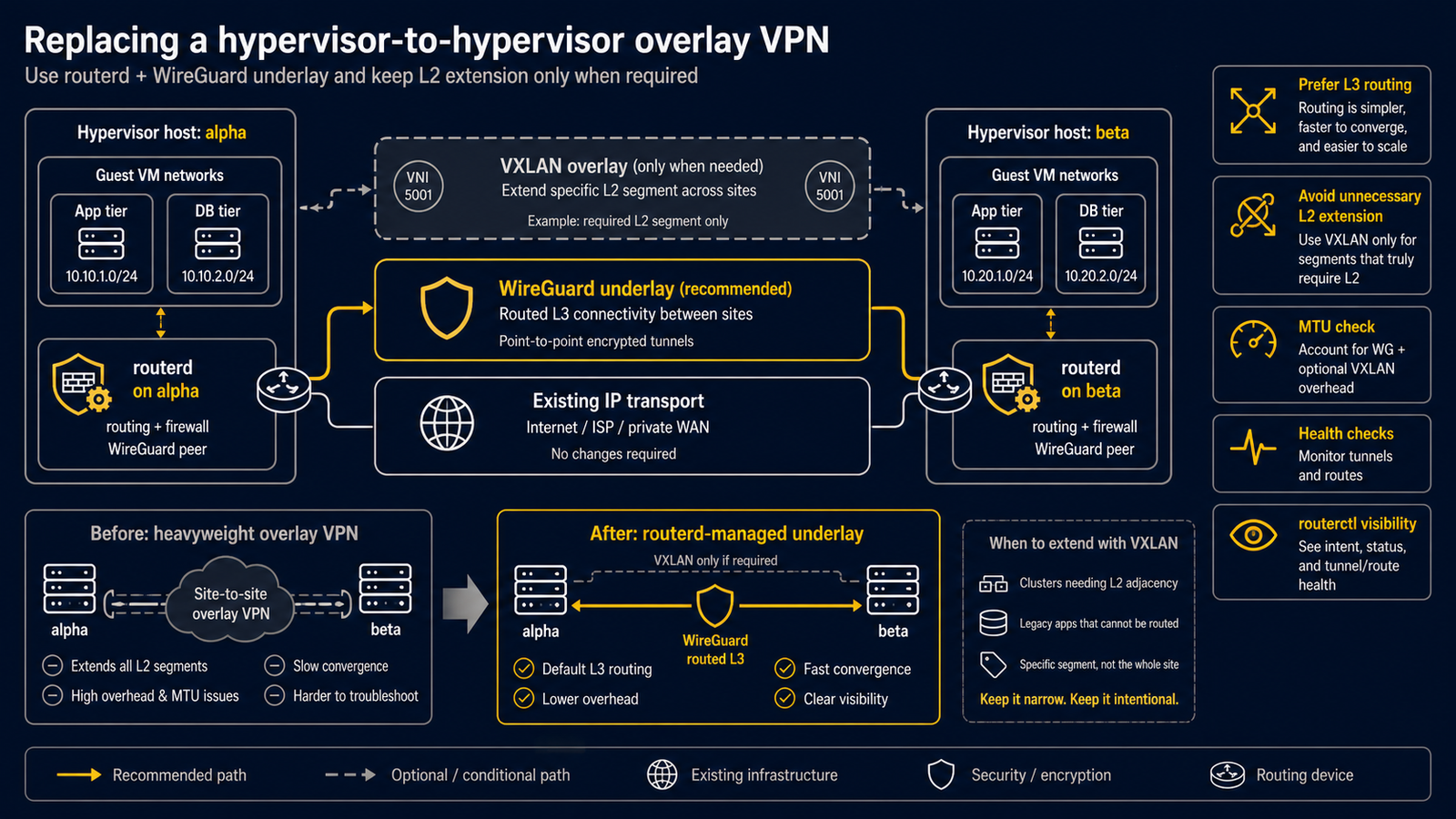

routerd models the overlay as four primitives:

ResourceRole
WireGuardInterfacethe encrypted L3 underlay between hypervisor hosts
WireGuardPeerone entry per remote host with its public key, endpoint, and allowed IPs
VXLANTunnelan L2 segment riding on top of the WireGuard underlay (only when L2 extension is required)
EgressRoutePolicy + HealthCheckoptional readiness gating and L3 failover on top of the underlay

Prefer L3 routing over L2 extension whenever possible. L2 extension multiplies MTU constraints (Ethernet header + WireGuard overhead + VXLAN header) and turns broadcast storms into multi-host issues. Use VXLANTunnel only for the segments that genuinely need to span hosts.

Minimal configuration​

The example below assumes two hypervisor hosts (alpha and beta) connected through their existing IP transport. We bring up a WireGuard underlay between them, then add a single VXLAN segment.

Underlay between two hosts​

apiVersion: net.routerd.net/v1alpha1
kind: WireGuardInterface
metadata:
  name: wg-cluster
spec:
  listenPort: 51820
  mtu: 1420
  privateKeyFromSecret: wg-cluster-key
---
apiVersion: net.routerd.net/v1alpha1
kind: WireGuardPeer
metadata:
  name: beta
spec:
  interface: wg-cluster
  publicKey: "<beta-public-key>"
  endpoint: "beta.cluster.example.net:51820"
  allowedIPs:
    - 10.250.0.2/32
  persistentKeepalive: 25

The mtu: 1420 value matches WireGuard's default with IPv4 underlay (1500 - 20 IP - 8 UDP - 32 WireGuard overhead - 8 nonce/key = 1432; conservative 1420 leaves headroom).

Stretched L2 segment over the underlay​

apiVersion: net.routerd.net/v1alpha1
kind: VXLANTunnel
metadata:
  name: vx-bridge1
spec:
  vni: 123001
  localAddress: 10.250.0.1
  peers:
    - 10.250.0.2
  underlayInterface: wg-cluster
  udpPort: 4789
  mtu: 1370

VXLAN adds 50 bytes of header (14 outer Ethernet + 20 outer IPv4 + 8 UDP + 8 VXLAN). On a 1420-byte WireGuard MTU, the inner MTU drops to 1370. Set this explicitly; do not rely on default MTU calculation when stacking encapsulations.

Verification​

# Underlay
routerctl describe WireGuardInterface/wg-cluster
ip -d link show wg-cluster
ping -M do -s 1392 <peer-underlay-address>   # 1420 - 20 IP - 8 ICMP

# Overlay
routerctl describe VXLANTunnel/vx-bridge1
ip -d link show vx-bridge1
ping -M do -s 1342 <peer-overlay-host>        # 1370 - 20 IP - 8 ICMP

routerctl diagnose egress is also useful when the underlay is itself a candidate egress (for example, when traffic to a remote office should ride the WireGuard underlay rather than the public default route).

Operational notes​

  • Roll out one host pair first. Keep hypervisor console access available so you can recover if WireGuard or VXLAN does not converge.
  • MTU mistakes are the most common cause of "fast ping but slow large transfers." Use ping -M do -s <size> to confirm both underlay and overlay MTUs before routing real traffic.
  • Do not blindly disable Linux NIC offload features. TSO/GSO/GRO are usually fine; problems with mtu greater than device maximum more often come from the hypervisor host's tap/veth offload settings, not the guest.
  • Avoid running redundant overlays during the transition. Place the new WireGuard underlay on a different segment from the old SoftEther tunnel and cut over deliberately.
