Troubleshooting

When investigating routerd, first separate what routerd intends from what the host actually has. Verify routerd's view, then compare against the OS state.

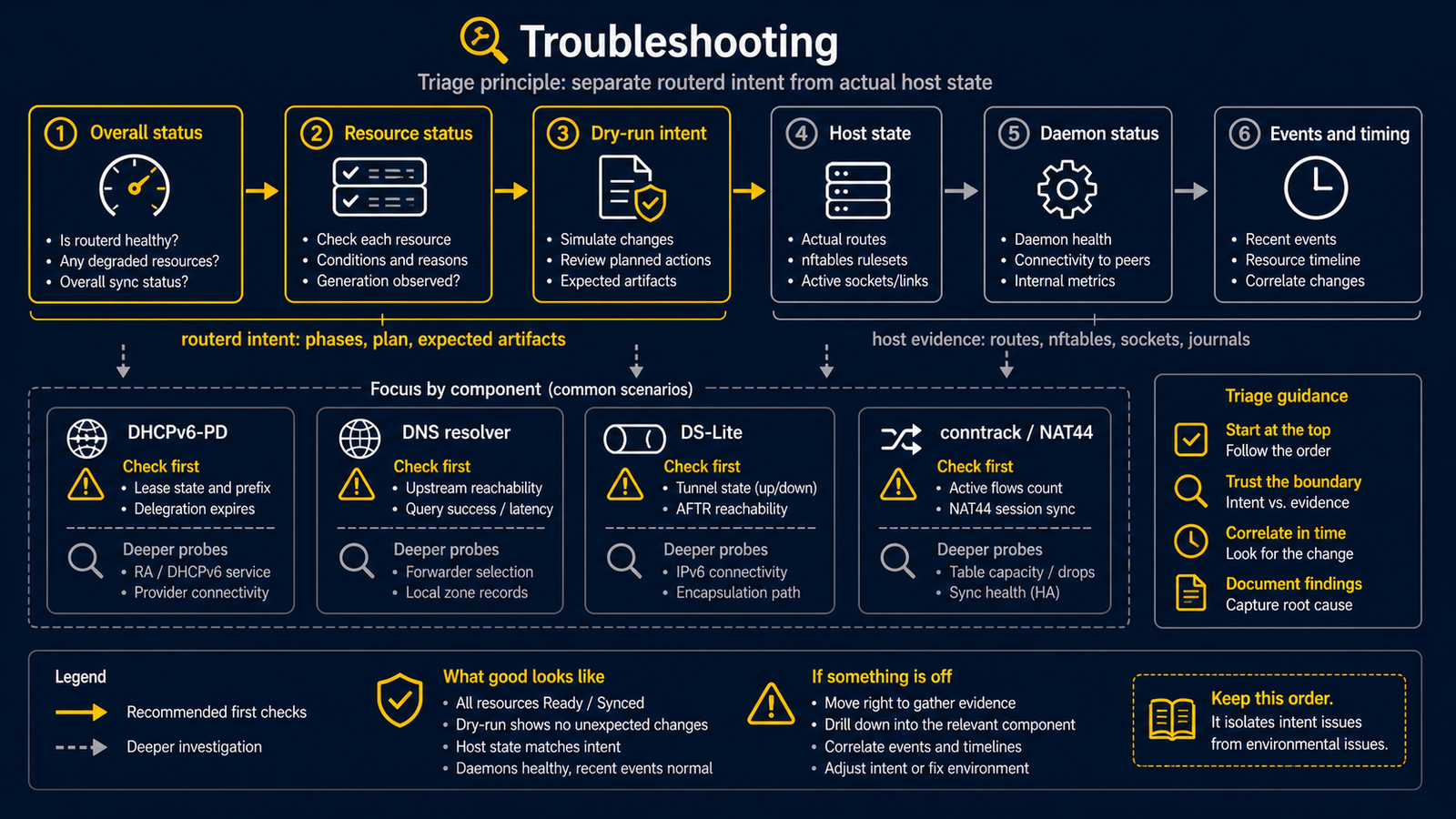

Triage order​

  1. routerctl status — overall view.
  2. routerctl describe <kind>/<name> — focus on a specific resource.
  3. routerd apply --once --dry-run — what would change next.
  4. OS commands (ip, nft, ss, journalctl) — actual host state.
  5. The relevant daemon's /v1/status and event log.

DHCPv6-PD​

curl --unix-socket /run/routerd/dhcpv6-client/wan-pd.sock http://unix/v1/status
tail -n 20 /var/lib/routerd/dhcpv6-client/wan-pd/events.jsonl

Look for:

  • phase is Bound.
  • currentPrefix is populated.
  • renewAt is in the future.
  • The event log shows Reply and Renew records.

If the prefix is not Bound, IPv6 RA, AAAA, and DHCPv6 should be paused on the LAN. routerd's safety contract is to stop advertising stale prefixes.

DHCPv4​

curl --unix-socket /run/routerd/dhcpv4-client/wan.sock http://unix/v1/status

Confirm DHCPv4Lease is Bound. If you need an immediate renewal, POST /v1/commands/renew triggers it.

dnsmasq​

In current routerd, dnsmasq is scoped to DHCPv4, DHCPv6, DHCP relay, and Router Advertisement. DNS resolution is handled by routerd-dns-resolver.

Check that the generated dnsmasq configuration:

  • Contains the expected dhcp-range.
  • Has port=0 (DNS handling disabled — that's routerd-dns-resolver's job).
  • References dhcp-script=/usr/local/libexec/routerd/dhcp-event-relay so lease changes are forwarded to routerd.
  • Has enable-ra when RA is part of the configuration.

DNS resolver​

sudo curl --unix-socket /run/routerd/dns-resolver/<resource>.sock http://unix/v1/healthz
dig @<lan-ip> router.lan.example.org A
dig @<lan-ip> example.com A

Verify in this order:

  • The resolver listens on the expected addresses and ports (ss -lnup).
  • Local authoritative zones answer (manual records and DHCP-derived records from DNSZone).
  • Conditional forwarders reach their target upstream (dig @<lan-ip> <forwarded-domain>).
  • The default upstream answers via the expected protocol (DoH / DoT / DoQ / plain UDP). Inspect /v1/status for sources[].upstreams.

DS-Lite​

ip -6 tunnel show
ip route show default
nft list table ip routerd_nat

If the AFTR FQDN does not resolve, check the DNSResolver forward source for the AFTR domain. Public DNS often cannot resolve AFTR records that are scoped to a specific access network.

conntrack​

Some environments do not expose /proc/net/nf_conntrack. In that case, routerd falls back to sysctl-derived counters. An empty per-flow list does not necessarily mean NAT is broken; check the routerctl connections summary instead.

Things to avoid during diagnosis​

  • Do not run an old DHCP client (or a manual test daemon) on the production WAN at the same time as routerd. Two clients sending DHCPv6-PD on the same interface can confuse the upstream's lease state.
  • Do not flush nf_conntrack while changing routes; routerd intentionally avoids that, and clearing it kills established sessions.
  • Do not edit /usr/local/etc/routerd/router.yaml on a host while ad-hoc YAML overrides exist elsewhere on the same host. Keep one canonical config file per host so reconcile remains predictable.
