DS-Lite home gateway

This example models a common IPv6-first access line: the router receives IPv6 through Router Advertisement and DHCPv6-PD, derives a LAN prefix, and sends IPv4 traffic through a DS-Lite tunnel.

The complete, validated YAML is in examples/example-dslite-home.yaml.

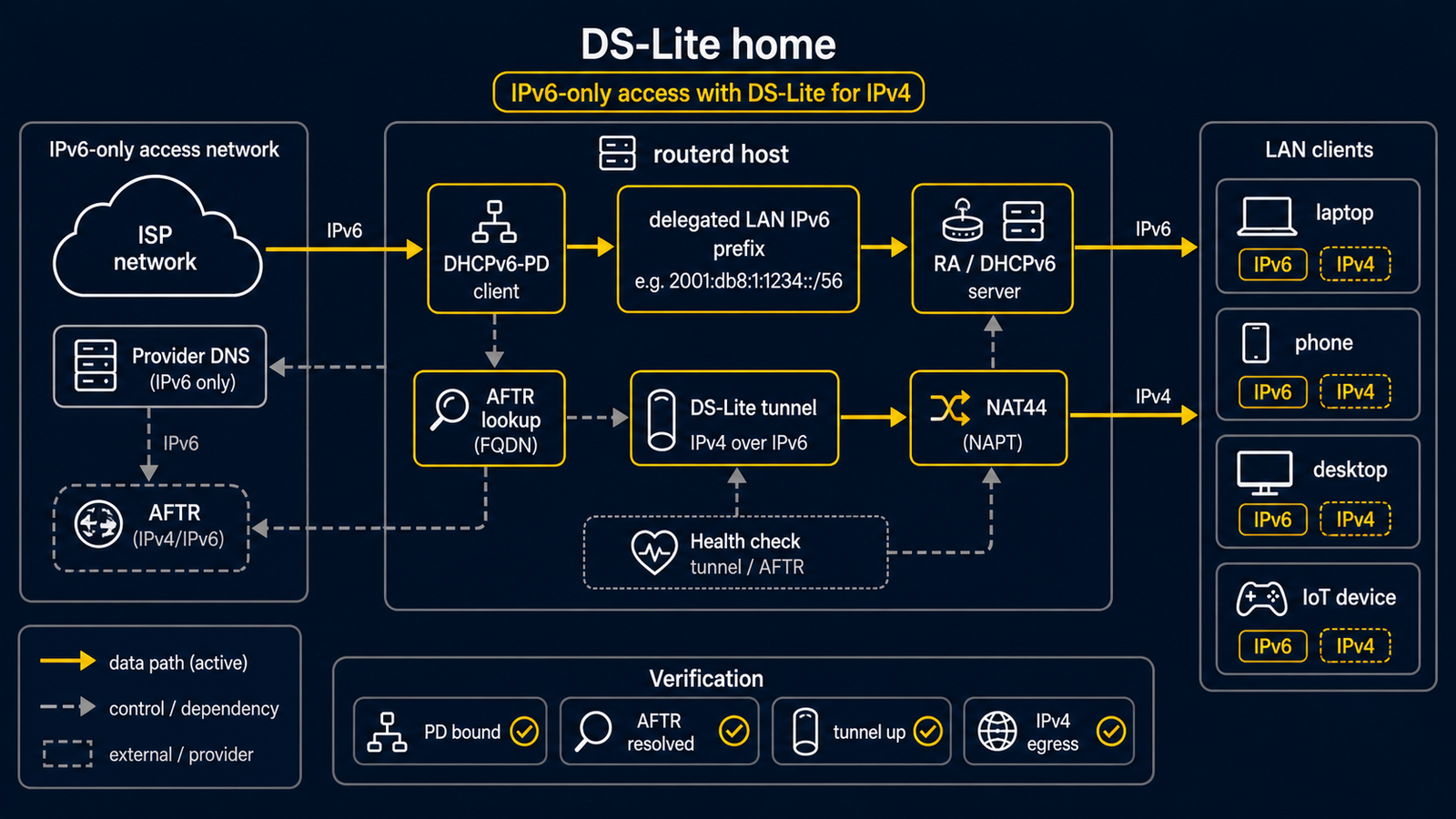

Topology

Diagram map

No.	Meaning	Main resources
[1]	ISP AFTR endpoint used by the DS-Lite tunnel.	DSLiteTunnel/transix
[2]	WAN interface receiving IPv6 RA and DHCPv6-PD.	DHCPv6PrefixDelegation/wan-pd
[3]	routerd host that creates the tunnel, derives sysctls, and runs LAN services.	Derived host runtime
[4]	DS-Lite ip6tnl device used for IPv4 egress.	DSLiteTunnel/transix, derived NAT44
[5]	LAN interface with IPv4 plus a delegated IPv6 address.	IPv4StaticAddress/lan-ipv4, IPv6DelegatedAddress/lan-ipv6
[6]	LAN clients receiving DHCPv4, RA, RDNSS, and DNSSL.	DHCPv4Server/lan-dhcpv4, IPv6RouterAdvertisement/lan-ra

What this manages

Area	routerd resources
WAN IPv6	DHCPv6PrefixDelegation/wan-pd
Prefix delegation	DHCPv6PrefixDelegation/wan-pd, IPv6DelegatedAddress/lan-ipv6
DS-Lite	DSLiteTunnel/transix
LAN IPv4 and DHCPv4	IPv4StaticAddress/lan-ipv4, DHCPv4Server/lan-dhcpv4
LAN IPv6 advertisement	IPv6RouterAdvertisement/lan-ra
DNS	DNSZone/home, DNSResolver/lan-resolver
IPv4 egress	Derived NAT44 from trust/untrust zones
MTU/MSS	Derived from DSLiteTunnel/transix and firewall zones

This example uses Transix-like AFTR values as placeholders. Replace the AFTR FQDN, DNS servers, and DHCPv6 client profile with the values for your access line.

Key config

# [2] Ask the WAN for delegated IPv6 prefix information.
- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegation
  metadata:
    name: wan-pd
  spec:
    interface: wan
    client: dhcp6c
    profile: ntt-hgw-lan-pd

# [5] Derive a LAN IPv6 address from the delegated prefix.
- apiVersion: net.routerd.net/v1alpha1
  kind: IPv6DelegatedAddress
  metadata:
    name: lan-ipv6
  spec:
    prefixDelegation: wan-pd
    interface: lan
    subnetID: "0"
    addressSuffix: "::1"

# [1] + [4] Build the DS-Lite tunnel toward the ISP AFTR.
- apiVersion: net.routerd.net/v1alpha1
  kind: DSLiteTunnel
  metadata:
    name: transix
  spec:
    interface: wan
    tunnelName: ds-transix
    aftrFQDN: gw.transix.jp
    aftrDNSServers:
      - 2404:1a8:7f01:a::3
      - 2404:1a8:7f01:b::3
    localAddressSource: delegatedAddress
    localDelegatedAddress: lan-ipv6
    localAddressSuffix: "::100"
    defaultRoute: true
    mtu: 1454

The DS-Lite tunnel uses a delegated IPv6 address as its local endpoint. If your access line expects the WAN RA address instead, switch localAddressSource to interface.

LAN services

The example advertises the delegated prefix through RA and gives clients the router as DNS:

# [6] Advertise the delegated LAN prefix and local DNS information.
- apiVersion: net.routerd.net/v1alpha1
  kind: IPv6RouterAdvertisement
  metadata:
    name: lan-ra
  spec:
    interface: lan
    prefixFrom:
      resource: IPv6DelegatedAddress/lan-ipv6
      field: address
    rdnssFrom:
      - resource: IPv6DelegatedAddress/lan-ipv6
        field: address
    dnsslFrom:
      - resource: DNSZone/home
        field: zone
    oFlag: true
    mtu: 1454

The DNSResolver includes a conditional forwarder for the AFTR name. This is important when the AFTR record is only meaningful through the access-network resolver.

Apply sequence

cp examples/example-dslite-home.yaml router.yaml
routerd validate --config router.yaml
routerd plan --config router.yaml
routerd apply --config router.yaml --once --dry-run

Check the plan for:

• the correct WAN and LAN interface names,
• no accidental removal of management connectivity,
• the intended AFTR FQDN and resolver addresses,
• NAT using the DS-Lite tunnel, not the physical WAN interface.

Then apply:

routerd apply --config router.yaml --once

Checks

routerctl status
routerctl describe DHCPv6PrefixDelegation/wan-pd
routerctl describe IPv6DelegatedAddress/lan-ipv6
routerctl describe DSLiteTunnel/transix
routerctl describe FirewallZone/wan
ip -6 tunnel show
ip route show default

From a LAN client:

ip -6 addr
ip route
curl https://1.1.1.1/
dig router.home.example

Common edits

• Change client and profile for the DHCPv6-PD client used by your platform.
• Replace gw.transix.jp and the AFTR resolver addresses for non-Transix deployments.
• Use localAddressSource: interface when the DS-Lite tunnel must originate from the WAN RA address.
• DS-Lite commonly needs MSS clamping; routerd derives it from the tunnel MTU and LAN/WAN firewall zones.
