Multi-WAN IPv4 failover

This example selects one IPv4 default route from several egress paths: multiple DS-Lite tunnels, PPPoE, and direct upstream-router IPv4.

The complete, validated YAML is in examples/multi-wan-home.yaml.

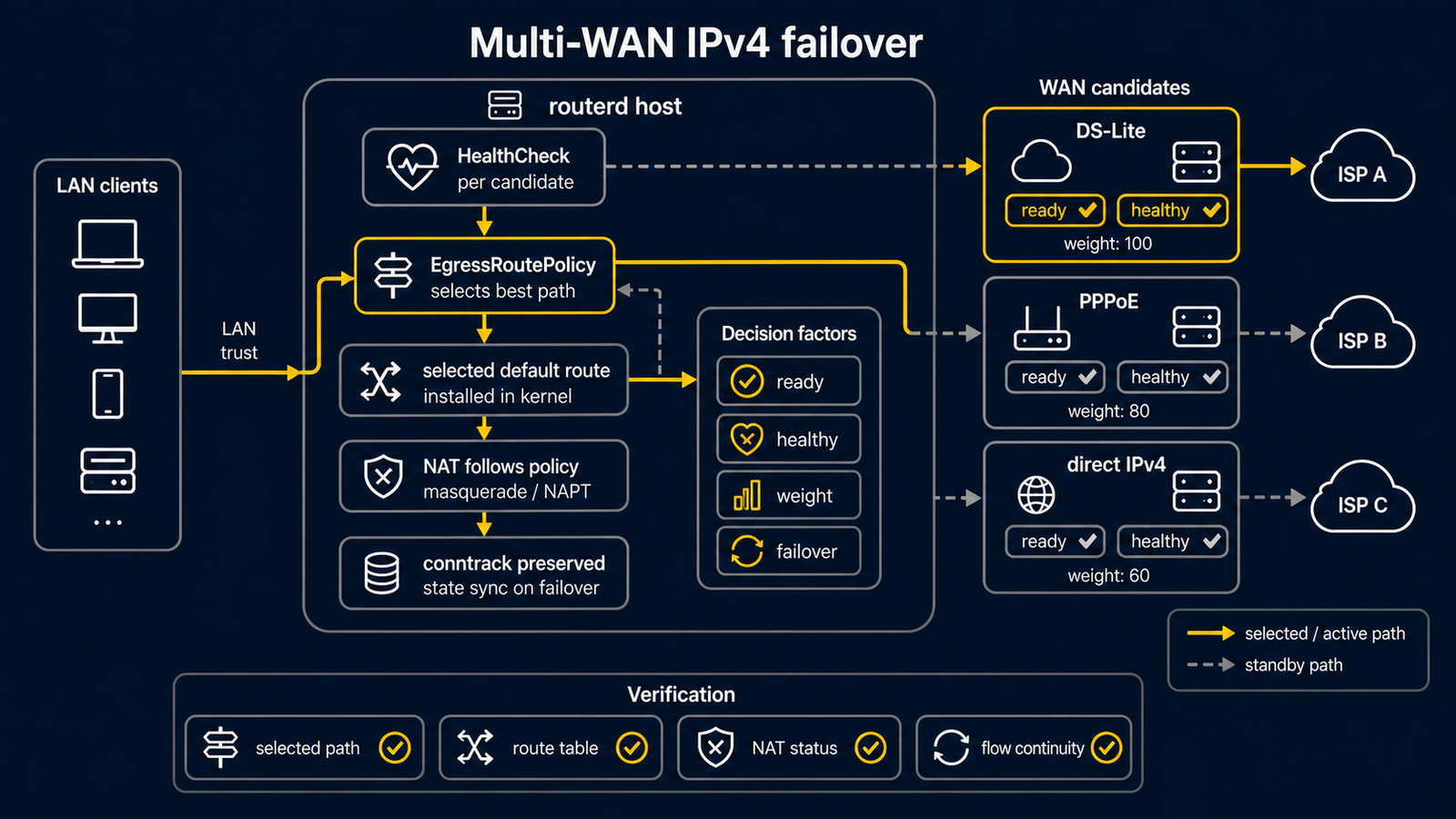

Topology

Diagram map

No.	Meaning	Main resources
[1]	Physical access line used by all WAN candidates.	Interface/wan, DHCPv4Client/wan-dhcpv4
[2]	Router selecting one default route.	EgressRoutePolicy/ipv4-default, IPv4Route/default
[3]	Primary DS-Lite candidate.	DSLiteTunnel/ds-lite-a, HealthCheck/internet-via-dslite-a
[4]	Additional DS-Lite candidate.	DSLiteTunnel/ds-lite-b, HealthCheck/internet-via-dslite-b
[5]	Lower-priority PPPoE backup.	PPPoESession/pppoe-flets, HealthCheck/internet-via-pppoe
[6]	Direct upstream-router IPv4 fallback.	DHCPv4Client/wan-dhcpv4, HealthCheck/internet-via-hgw-direct
[7]	LAN clients using the selected egress path through NAT.	NAT44Rule/lan-to-selected-wan

What this manages

Area	routerd resources
Egress paths	DSLiteTunnel/*, PPPoESession/pppoe-flets, DHCPv4Client/wan-dhcpv4
Link readiness	HealthCheck/internet-via-*
Selection	EgressRoutePolicy/ipv4-default
Default route	IPv4Route/default
NAT	NAT44Rule/lan-to-selected-wan

Key config

# [2] Choose the highest-weight candidate that is currently healthy.
- kind: EgressRoutePolicy
  metadata:
    name: ipv4-default
  spec:
    family: ipv4
    destinationCIDRs:
      - 0.0.0.0/0
    selection: highest-weight-ready
    hysteresis: 30s
    candidates:
      # [3] Primary DS-Lite candidate.
      - name: ds-lite-a
        weight: 120
        healthCheck: internet-via-dslite-a
      # [5] PPPoE backup has lower weight.
      - name: pppoe-flets
        weight: 60
        healthCheck: internet-via-pppoe
      # [6] Direct HGW route is the last fallback in this example.
      - name: hgw-direct
        weight: 40
        healthCheck: internet-via-hgw-direct

Checks

routerd validate --config examples/multi-wan-home.yaml
routerd apply --config examples/multi-wan-home.yaml --once --dry-run
routerctl describe EgressRoutePolicy/ipv4-default
routerctl describe IPv4Route/default
ip route show default

Operational notes

• Keep health checks conservative. Very short intervals can make a weak link flap.
• Use hysteresis so the selected route does not switch on one transient failure.
• Keep RFC1918 destinations excluded from NAT and policy routing unless you really want to NAT private routed networks.
