Tailscale subnet and exit node

This example installs or expects Tailscale and advertises the router as both a subnet router and an exit node.

The complete, validated YAML is in examples/tailscale-exit-subnet.yaml.

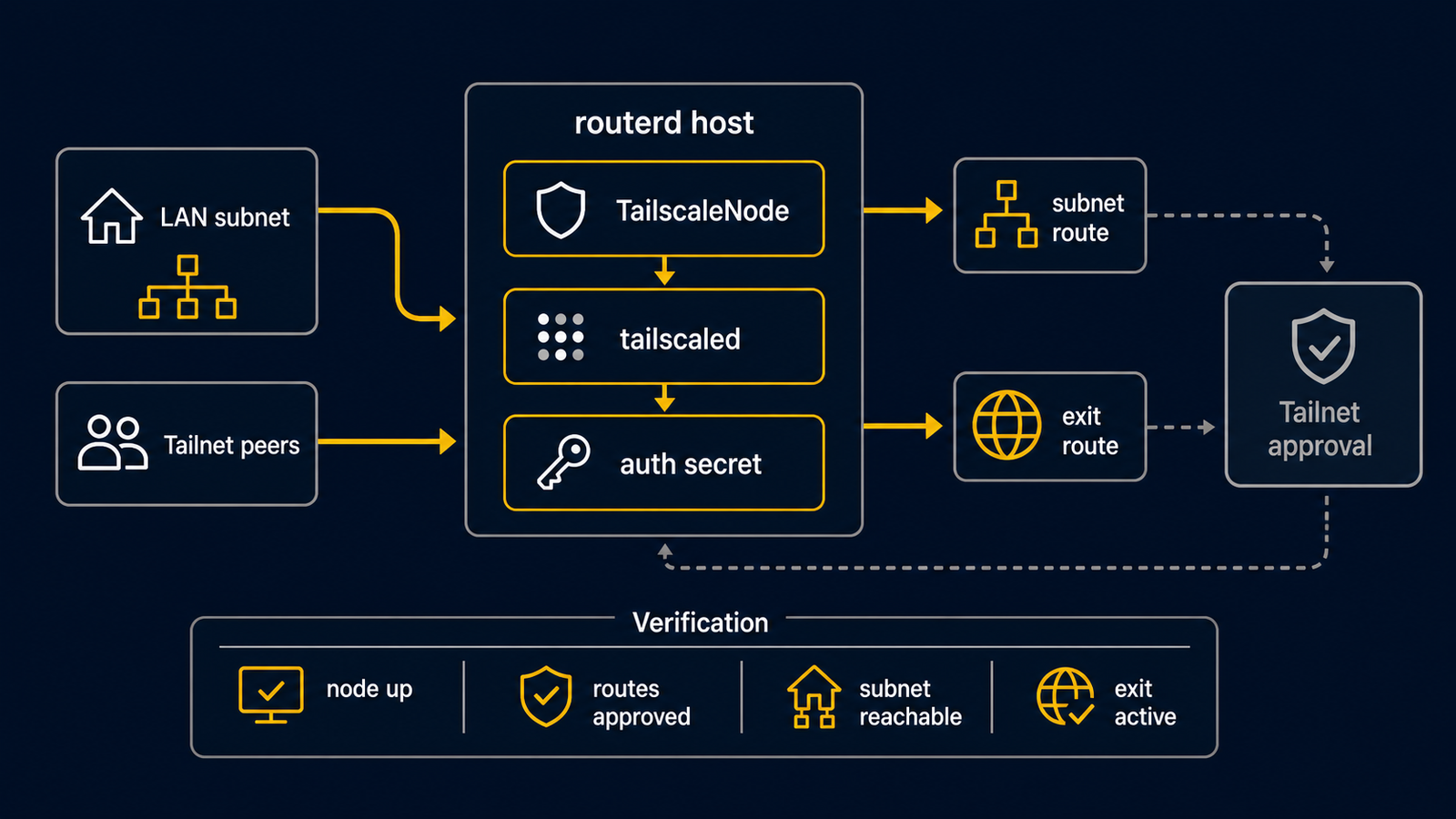

Topology

Diagram map

No.	Meaning	Main resources
[1]	Tailnet that receives route and exit-node advertisements.	External Tailscale control plane
[2]	Router registered as a Tailscale node.	TailscaleNode/home
[3]	LAN prefix advertised to the tailnet.	advertiseRoutes
[4]	Management prefix advertised when remote management is desired.	advertiseRoutes

What this manages

Area	routerd resources
Runtime package	Package/tailscale-runtime
Tailnet node	TailscaleNode/home
Route advertisement	advertiseRoutes
Exit node	advertiseExitNode

Key config

# [2] Register the router as a named Tailscale node.
- apiVersion: net.routerd.net/v1alpha1
  kind: TailscaleNode
  metadata:
    name: home
  spec:
    hostname: edge-router
    advertiseExitNode: true
    # [3] + [4] Prefixes advertised into the tailnet.
    advertiseRoutes:
      - 172.18.0.0/16
      - 192.168.20.0/24
    acceptDNS: false
    authKeyEnv: TS_AUTHKEY
    authKeyFile: /usr/local/etc/routerd/secrets/tailscale.env

Checks

routerd validate --config examples/tailscale-exit-subnet.yaml
routerd apply --config examples/tailscale-exit-subnet.yaml --once --dry-run
routerctl describe TailscaleNode/home
tailscale status

Approve the advertised routes and exit-node use in the Tailscale admin console when required by your tailnet policy.
