PPPoE IPv4 NAT gateway

This example is for an access line where the physical WAN is Ethernet but the IPv4 internet session is PPPoE.

The complete, validated YAML is in examples/example-pppoe-ipv4-nat.yaml.

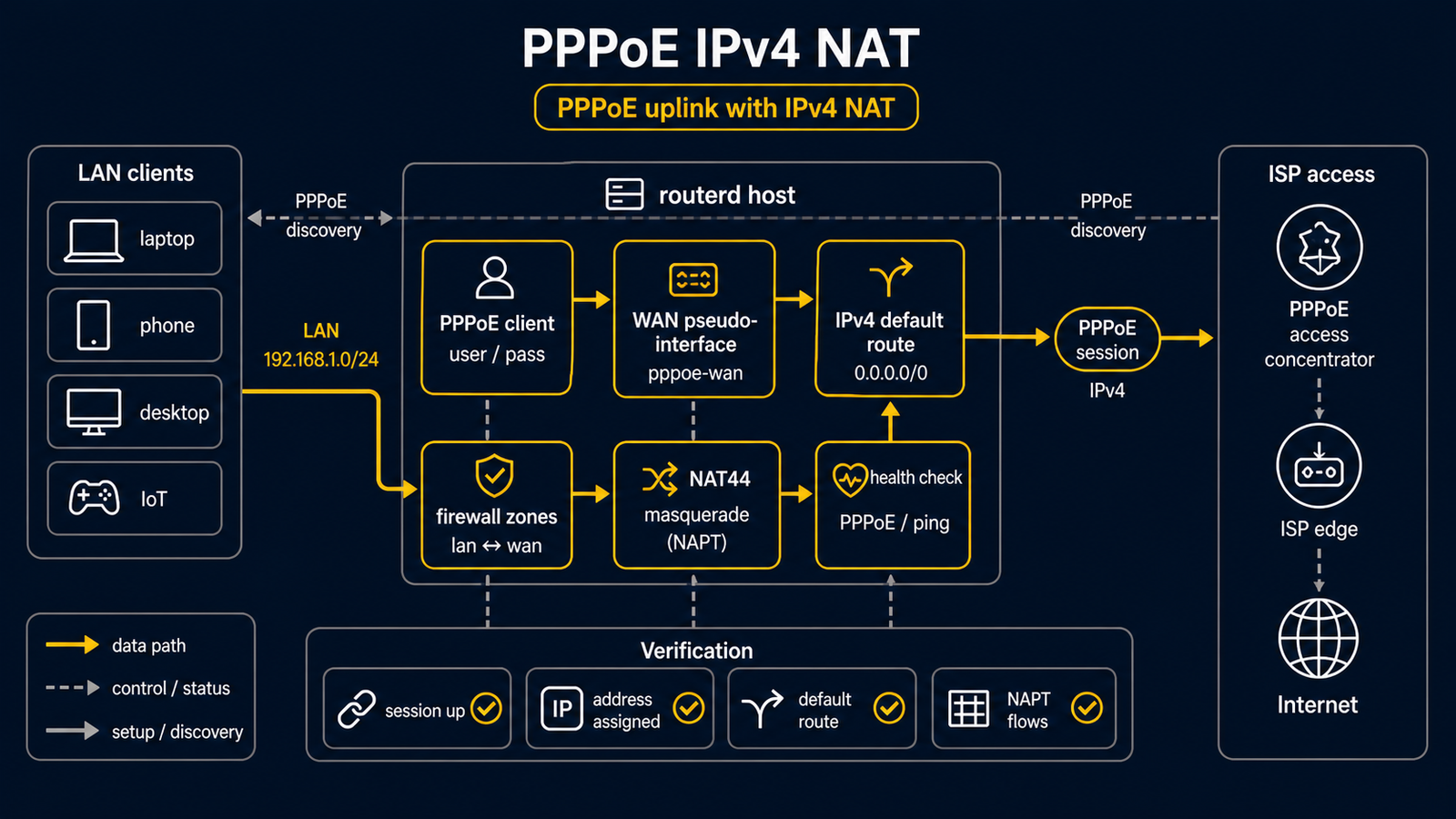

Topology

Diagram map

No.	Meaning	Main resources
[1]	Access line or ONU outside routerd management.	External to routerd
[2]	Physical Ethernet interface that carries PPPoE.	Interface/wan
[3]	PPPoE session and logical egress interface.	PPPoESession/pppoe-home
[4]	Host deriving IPv4 forwarding and applying nftables NAT.	Derived host runtime, NAT44Rule/lan-to-pppoe
[5]	LAN gateway and DHCPv4 segment.	IPv4StaticAddress/lan-base, DHCPv4Server/lan-dhcpv4
[6]	Clients using PPPoE as their IPv4 internet path through NAT.	DHCPv4Server/lan-dhcpv4

What this manages

Area	routerd resources
PPPoE session	PPPoESession/pppoe-home
LAN address and DHCPv4	IPv4StaticAddress/lan-base, DHCPv4Server/lan-dhcpv4
IPv4 internet access	NAT44Rule/lan-to-pppoe
Filtering	FirewallZone/*, FirewallPolicy/home

Key config

# [3] Logical PPPoE interface created over the physical WAN.
- kind: PPPoESession
  metadata:
    name: pppoe-home
  spec:
    interface: wan
    ifname: ppp-home
    username: [email protected]
    passwordFile: /usr/local/etc/routerd/secrets/pppoe-home.password
    mtu: 1454
    mru: 1454
    defaultRoute: true

# [5] -> [3] LAN IPv4 is masqueraded toward the PPPoE session.
- kind: NAT44Rule
  metadata:
    name: lan-to-pppoe
  spec:
    type: masquerade
    egressInterface: pppoe-home
    sourceRanges:
      - 192.168.40.0/24

Checks

routerd validate --config examples/example-pppoe-ipv4-nat.yaml
routerd apply --config examples/example-pppoe-ipv4-nat.yaml --once --dry-run
routerctl describe PPPoESession/pppoe-home
ip link show ppp-home
ip route show default

Common edits

• Put the real PPPoE password in the referenced secret file, not in YAML.
• Keep mtu and mru aligned with the ISP guidance.
• Use defaultRoute: false when PPPoE is a backup path selected by route policy.
