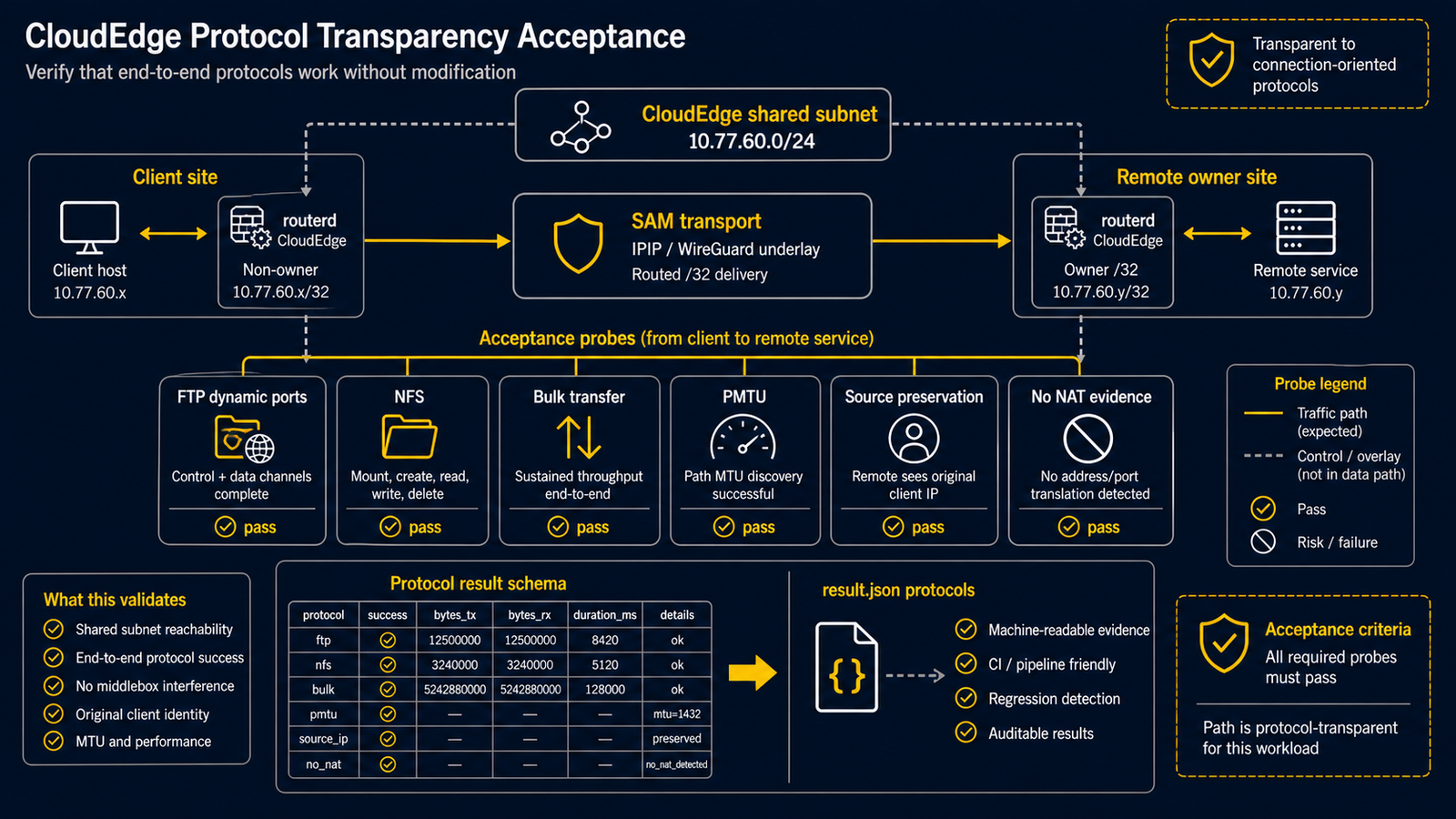

CloudEdge Protocol Transparency Acceptance

This is the no-cloud harness plan for validating that CloudEdge mobility is transparent to connection-oriented protocols that are sensitive to NAT, helper ALGs, dynamic ports, and MTU/PMTU behavior. The live run is performed later by a lab operator; this document and the scripts under scripts/ only prepare the contract and evidence shape.

Goal

For traffic over the logical shared subnet (10.77.60.0/24 in the demo), prove:

• No NAT: the server sees the client site's mobility /32 as the peer address.
• The client default gateway is unchanged from the local site.
• FTP active mode and passive mode both transfer data without NAT ALG.
• RPC endpoint discovery through rpcbind and an NFSv3 mount/read/write work across sites.
• Large transfers complete without PMTU black holes.
• MSS/PMTU evidence records the overlay MTU, route MTU/advmss when available, and the configured MSS clamp value.

Minimal Live Matrix

Run the protocol probe after the normal D3 directed matrix is already green. Use two representative pairs:

Pair	Why
aws -> azure	cloud-to-cloud overlay path with cloud provider trapping on both ends
aws -> onprem	cloud-to-onprem path with on-prem proxy-ARP/VRRP authority

The scenario catalog encodes this as d11-protocol-transparency in examples/cloudedge-acceptance-scenarios.json.

Larger parity runs may add azure -> oci, oci -> aws, or reverse directions, but the minimal acceptance should stay small enough to run inside one 4-site lab window.

Harness

The wrapper is:

PROTOCOL_PROBE_RUNNER=scripts/runners/cloudedge-protocol-runner.sh \
  scripts/cloudedge-protocol-probe.sh \
    --pairs aws:azure,aws:onprem \
    --bytes 104857600 \
    --out evidence/protocol-probe.json

The full acceptance scenario uses the same wrapper through:

PROTOCOL_PROBE_RUNNER=scripts/runners/cloudedge-protocol-runner.sh \
MATRIX_RUNNER=scripts/runners/cloudedge-matrix-runner.sh \
scripts/cloudedge-acceptance.sh run \
  --scenario d11-protocol-transparency \
  --out evidence/d11-protocol \
  --commit <routerd-commit>

The output is validated by scripts/cloudedge-protocol-result-schema.json and is folded into result.json under the protocols object.

Runner Contract

scripts/runners/cloudedge-protocol-runner.sh implements PROTOCOL_PROBE_RUNNER. It is intentionally parameterized by environment variables and contains no provider account IDs, resource IDs, or secrets.

Required per site:

export CE_AWS_CLIENT_SSH_HOST=<ssh-host-or-user@host>
export AWS_CLIENT_IP=10.77.60.11
export CE_AZURE_CLIENT_SSH_HOST=<ssh-host-or-user@host>
export AZURE_CLIENT_IP=10.77.60.12
export CE_ONPREM_CLIENT_SSH_HOST=<ssh-host-or-user@host>
export ONPREM_CLIENT_IP=10.77.60.10
export SSH_KEY_FILE=<private-key>
export SSH_USER=ubuntu
export CLIENT_SSH_USER=ubuntu

Useful protocol variables:

export CE_PROTOCOL_INSTALL=1
export CE_PROTOCOL_CONFIGURE_SERVICES=1
export CE_PROTOCOL_FTP_PASSIVE_PORTS=40000:40100
export CE_PROTOCOL_BULK_BYTES=104857600
export CE_PROTOCOL_PMTU_SIZE=1300
export CE_PROTOCOL_OVERLAY_IFACE=wg-hybrid
export CE_PROTOCOL_MSS_CLAMP=1340

Each operation can be overridden without editing the runner:

export CE_PROTOCOL_FTP_ACTIVE_COMMAND='...'
export CE_PROTOCOL_NFS_COMMAND='...'

The wrapper calls these operations per pair:

Operation	Assertion
setup	Installs/configures vsftpd, rpcbind, NFS server/client tools, and iperf3 when enabled
ftp-active	FTP PORT mode data channel completes
ftp-passive	FTP passive mode data channel completes
nfs	NFSv3 mount plus write/read of the requested byte budget completes
rpc	rpcinfo -p finds rpcbind and at least one dynamic RPC/NFS port
bulk	iperf3 -n <bytes> completes and records throughput/retransmits
pmtu	DF ping succeeds and records overlay MTU, route MTU/advmss, MSS clamp
source-preserved	Server-side SSH sees the client mobility /32 as peer IP
no-nat	Same peer-IP check, recorded as an explicit no-NAT assertion

Forcefrag / MSS Comparison

The normal run should pass with the routerd-derived MSS clamp. If a lab needs to prove P2-b force fragmentation behavior, run the same D11 pair set twice:

1. forceFragmentIPv4: false (default): TCP transfers should pass through MSS clamp; oversized DF non-TCP may fail depending on underlay PMTU.
2. forceFragmentIPv4: true on the relevant OverlayPeer or TunnelInterface: the same DF probe should pass and routerd_forcefrag should appear in router evidence.

Do not enable force fragmentation globally. Keep it path-scoped and record the before/after config digest in the evidence bundle.

Evidence Review Checklist

For each pair in protocol-probe.json:

• checks.ftpActive, ftpPassive, nfs, rpc, bulkTransfer, pmtu, sourceIpPreserved, and noNat are all pass.
• details.sourceIpPreserved.peer_ip equals the client site's mobility /32.
• details.rpc.dynamic_port is present and not 111.
• details.bulkTransfer.retransmits is recorded when iperf3 is available.
• details.pmtu.overlay_mtu, route_mtu or route_advmss, and mss_clamp are recorded.

The outer result.json must include passing assertions:

• protocol_transparency
• ftp_active_passive
• nfs_rpc
• bulk_transfer_pmtu
• protocol_source_ip_preserved
• protocol_no_nat
