ADR 0013: IPv4 force fragmentation for trusted overlay paths

Status

Accepted for pre-release implementation.

Context

routerd already derives path MTU handling from tunnel and forwarding intent. The normal mitigation is TCP MSS clamping: on Linux, routerd_mss rewrites TCP SYN MSS for derived low-MTU forwarding paths without requiring a firewall zone.

MSS clamping does not help non-TCP traffic. Oversized UDP, QUIC, ICMP, or other IPv4 packets with DF set can still black-hole when a trusted overlay or underlay has lower effective MTU and PMTUD feedback is blocked or ignored.

Clearing DF is not a general Internet default. It violates the sender's explicit path-MTU preference and can create fragments that are more expensive to forward and easier to drop. The feature therefore must be explicit, path-scoped, and default off.

Decision

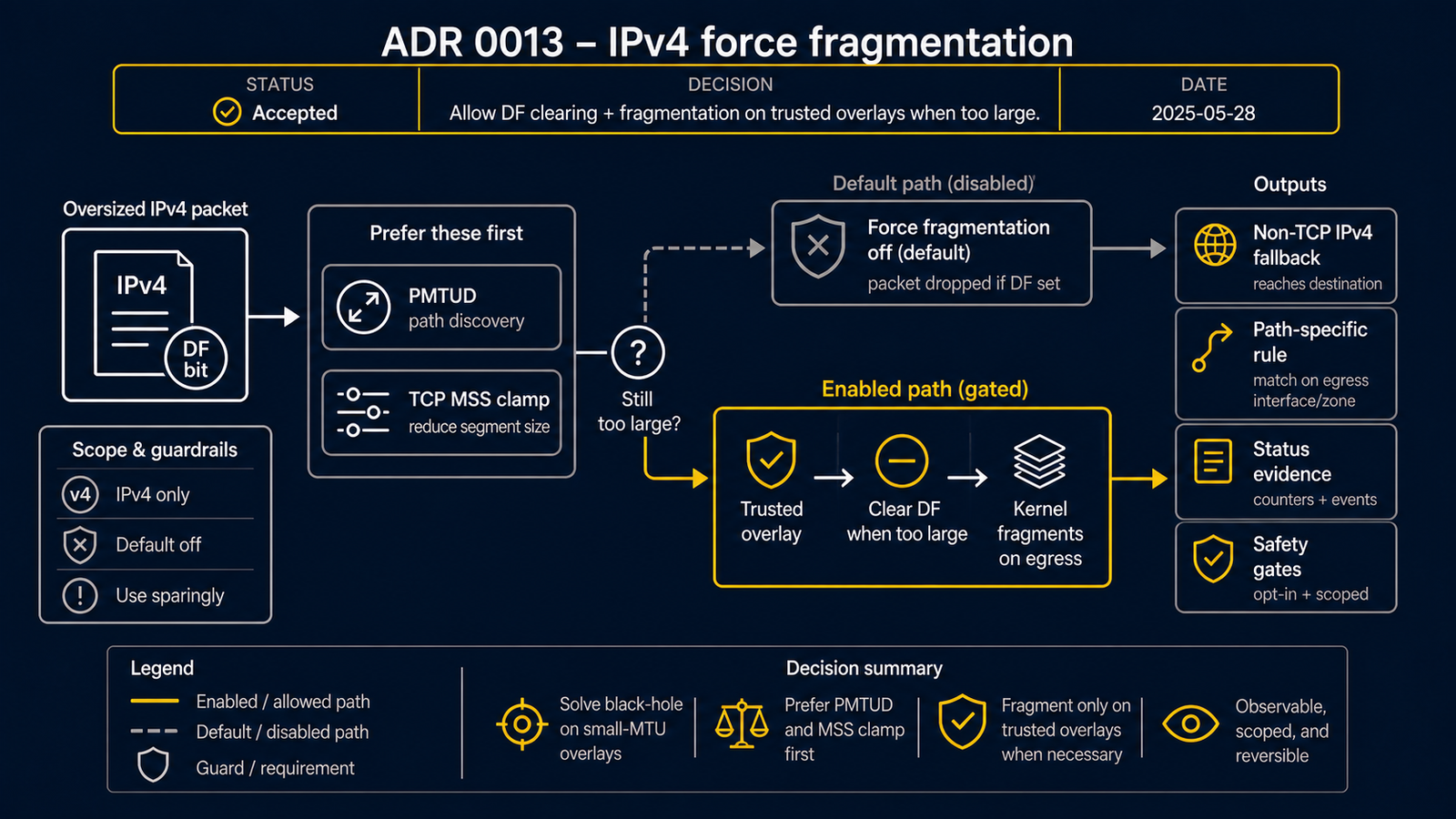

Add an explicit IPv4 force-fragment option to overlay path MTU intent:

• OverlayPeer.spec.pathMTU.forceFragmentIPv4
• TunnelInterface.spec.pathMTU.forceFragmentIPv4

The feature is supported only for trusted routerd overlay devices where routerd can derive the forwarded path and effective MTU: wireguard, ipip, gre, fou, and gue. Validation rejects route, tailscale, ipsec, or other underlay types when force fragmentation is enabled.

On Linux, routerd renders a dedicated nftables table:

table ip routerd_forcefrag {
  chain forward {
    type filter hook forward priority mangle; policy accept;
    iifname <capture> oifname <tunnel> ip length > <path-mtu> ip frag-off 0x4000 ip frag-off set 0
  }
}

The match is IPv4-only and scoped to derived forwarded paths. It clears DF only for oversized, currently unfragmented DF packets. The kernel then fragments on the egress device according to the normal interface MTU.

TCP MSS clamping remains the primary TCP mitigation. Force fragmentation is a catch-all for non-TCP or incorrectly sized traffic on explicitly trusted paths.

Alternatives

• Route MTU lock. More standard for routes that routerd owns, but it does not cover every route origin cleanly, including BGP-imported mobility paths, and would spread policy across route writers.
• iptables. Existing stock targets do not provide a cleaner cross-path expression than nftables for DF clearing.
• FreeBSD pf in the first phase. pf has scrub ... no-df, but routerd's live SAM/overlay dataplane is Linux-first. FreeBSD support is left for a later phase rather than silently pretending parity.

Consequences

• Default behavior is unchanged.
• Linux receives a second router-owned path-MTU nftables table, routerd_forcefrag, next to routerd_mss.
• Operators must opt in per overlay path or tunnel interface.
• Fragmentation can reduce throughput and increase packet loss sensitivity; docs should describe it as a last-resort PMTU black-hole workaround for trusted overlays.
