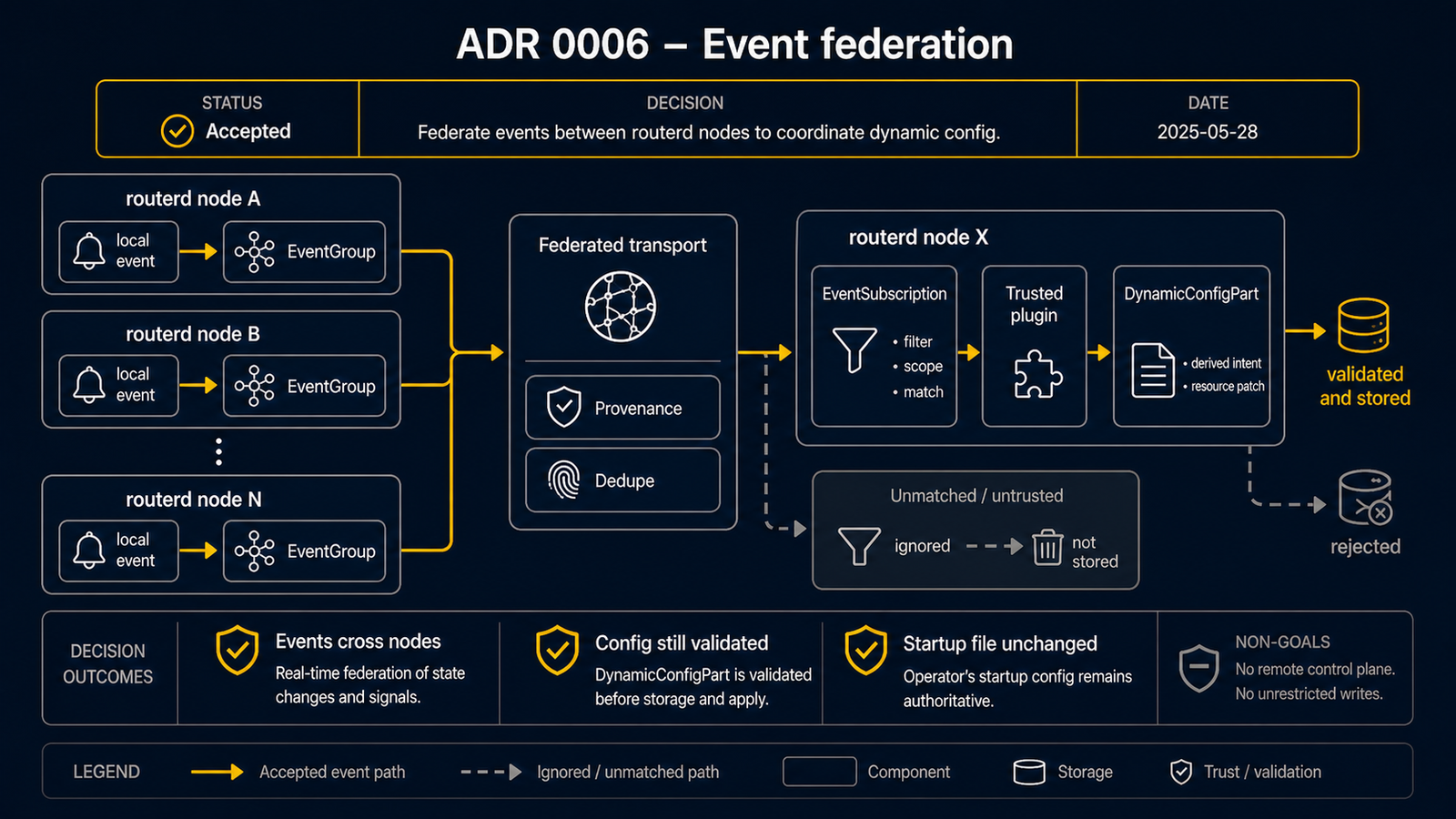

ADR 0006: CloudEdge Event Federation (routerd-to-routerd typed events)

Status​

Accepted; experimental implementation in progress — 2026-05-30. Phases 1, 1.5, 2, and 3 are implemented on event-federation:

  • Phase 1 (event envelope + EventGroup Kind + SQLite local store + routerctl federation event emit/list) — done.
  • Phase 1.5 (EventPeer/EventSubscription Kinds + validation) — done.
  • Phase 2 (peer delivery over the overlay via routerd-eventd, HMAC, retry, retention prune) — done; lab-smoke PASS (transport evidence).
  • Phase 3 (subscription → plugin → RemoteAddressClaim DynamicConfigPart) — done; lab-smoke PASS (subscription evidence, how-to).

Phase 4 (provider actionPlan plugins, dry-run) is next, not started. Phase 5 (provider action execution) is out of MVP.

Context​

SAM (reference, milestone) is clean-validated on Azure×PVE, AWS×PVE, and OCI×PVE (3-cloud parity). It proves the capture (provider-specific) / delivery+claim (routerd-common) split. But the RemoteAddressClaim that drives it is hand-authored today. The next step is to discover, propagate, and materialize claims event-driven:

on-prem routerd observes a client IPv4 (ARP/Clients/DHCP) → emits a typed event → federation bus delivers it to the cloud routerd → a subscription triggers a provider plugin → plugin returns a RemoteAddressClaim as a DynamicConfigPart (+ a provider secondary-IP actionPlan) → cloud is ready for provider-secondary-ip capture, with no human editing the cloud config.

What already exists (so the MVP is not greenfield)​

Grounding the design in the current tree — most building blocks are present; the genuinely new work is the node-to-node federation transport and the event→plugin subscription trigger:

  • Typed event envelope: pkg/daemonapi DaemonEvent{Type,Time,Daemon,Resource, Severity,Reason,Message,Attributes} + NewEvent(...). Today it flows daemon→main, but it is already a typed topic-carrying envelope.
  • Daemon→routerd transport pattern: daemons POST to the control socket over HTTP-over-unix (cmd/routerd-dhcp-event-relay → controlapi.Prefix + /dhcp-lease-event via unix:/run/routerd/routerd.sock). There is even an event-relay daemon precedent.
  • Separate long-lived daemon precedent: 13 cmd/routerd-* daemons (routerd-bgp, routerd-ra-observer, routerd-dhcp-event-relay, …). The gobgp pivot (ADR 0004) established "separate long-lived process over in-process" to avoid restart-drops.
  • Plugin → DynamicConfigPart pipeline: pkg/plugin/runner.go, pkg/plugin/dynamic_config.go, pkg/dynamicconfig/{types,merge}.go, PluginRequest/PluginResult. effective = startup + active dynamic − masks.
  • State: SQLite (pkg/state/sqlite.go).
  • Provider profile + external auth: CloudProviderProfile with auth.mode=external-command (specs.go:1193) — already the hook for provider-specific plugins. provider: oci|aws|azure|gcp already validated.

Decision​

Build CloudEdge Event Federation as the next experimental MVP, on a new branch on top of merged-experimental SAM. Do not cut scope — decompose into ordered, independently-acceptable phases and drive each phase as a workflow. Each phase ships a working, demoable slice and gates the next.

Design principles​

  1. Events are observed facts, not config. A node sends routerd.client.ipv4.observed, never a raw RemoteAddressClaim. The receiver's trusted local plugin decides whether/how to turn it into a typed claim + actionPlan. The wire never carries commands to execute.
  2. at-least-once + idempotent, not exactly-once. Store idempotency is keyed on the event id (a duplicate id is a no-op insert); dedupeKey is a subscription-side grouping key for collapsing repeated observations of the same fact, not a DB unique constraint in Phase 1. Dynamic resource names are deterministic (onprem-10-88-60-9); provider actions are no-op if already satisfied. No consensus, no gossip, no total ordering.
  3. Reuse, don't reinvent. Reuse the DaemonEvent envelope, the control-socket HTTP transport idiom, the Plugin→DynamicConfigPart pipeline, SQLite state, and CloudProviderProfile/Plugin (no new CloudProviderPlugin Kind).
  4. Minimize new Kinds. MVP introduces three: EventGroup (bus identity + auth + retention), EventPeer (delivery target + inline push/receive filters), EventSubscription (received-event → local plugin trigger). Fold the proposed standalone EventFilter into EventPeer for now; promote to its own Kind only if filters need to be shared across peers.
  5. Separate daemon. Federation send/receive lives in a new cmd/routerd-eventd long-lived daemon (per ADR 0004 precedent), not the reconcile loop. It binds to the overlay (wg-hybrid) only.
  6. Provider mutation stays dry-run in the MVP. Plugins emit actionPlans; execution is a later phase behind an explicit approval/auto-apply policy.

Transport & security (MVP)​

  • Receiver = HTTP listener bound to the WireGuard overlay interface/address only (e.g. 169.254.x.y:9443). The WG tunnel is the confidentiality boundary; add message-level HMAC (shared secret from file) for integrity/anti-misroute. Defer TLS — a TLS listener needs cert provisioning, which reintroduces exactly the bootstrap friction the SAM stocktake flagged. (Future: mTLS / per-peer Ed25519 / cloud-KMS signing.)
  • Push-only for MVP (onprem→cloud observations; cloud→onprem claim/result acks).
  • Retry with backoff; per-(event,peer) delivery status in SQLite.

Critical invariants to review at the state-machine level (not just diff)​

Per the project's rule for out-of-process stateful daemons, these are the correctness conditions, stated as invariants:

  • No feedback loop. A node MUST NOT re-emit *.observed for an address it itself captures (provider-secondary-ip or proxy-arp). Observation is scoped by ownerSide + domain; captured/secondary addresses are excluded from the observer's source set. Without this, cloud's own secondary .9 gets re-observed → re-propagated → flap.
  • Asymmetric provision vs de-provision. Provisioning (claim appears) may be prompt. De-provisioning (TTL expiry / *.expired) must be hysteretic — a much longer grace + debounce than the 300s observe TTL — because a flapping client must not drive repeated cloud secondary-IP assign/unassign (API rate limits + cost + dataplane churn). TTL→teardown policy is explicit and conservative.
  • Single writer per (domain, address). The owning side is authoritative; the receiver only ever proposes a claim for an address whose ownerSide is the sender.
  • Idempotent provider actions. "already assigned" ⇒ success/no-op across aws/azure/oci.

Provider plugin framework​

OS-CLI-invoking local executables, not SDKs statically linked into routerd (keeps SDK churn/auth out of core; enables cloud-native identity; easier debug):

  • AWS: aws ec2 assign-private-ip-addresses — auth: IAM instance profile first, AWS_PROFILE/env fallback.
  • Azure: az network nic ip-config … — auth: managed identity first, az login/SP env fallback.
  • OCI: oci network private-ip create / vnic — auth: instance principal first, OCI config profile fallback.

Plugin.capabilities gate what a plugin may do (observe.events/propose.dynamicConfig/propose.providerAction).

Phased decomposition (one workflow per phase, run in order)​

Each phase = an independently-acceptable slice; later phases gated on earlier acceptance. Implementation delegated to codex; claude orchestrates + reviews.

  • ✅ DONE — Phase 1 — Event model + local store. EventGroup Kind; reuse/extend DaemonEvent as the external Event envelope (id, group, sourceNode, type, subject, ttl, dedupeKey, payload); SQLite federation_events table; routerctl federation event emit/list. Accept: emit→stored w/ TTL; dup id idempotent; expired ignored.
  • ✅ DONE (lab-smoke PASS) — Phase 1.5 — EventPeer/EventSubscription Kinds + validation.
  • ✅ DONE (lab-smoke PASS) — Phase 2 — Peer delivery over overlay. EventPeer Kind; routerd-eventd receiver bound to wg-hybrid; HMAC; push + backoff; event_deliveries. Accept: onprem pushes to cloud over wg-hybrid; dup push idempotent; bad HMAC rejected; routerctl event deliveries; routerd-eventd periodically prunes federation_events per EventGroup retention (maxAge/maxEvents), and routerctl federation event prune --dry-run reports what would be removed.
  • ✅ DONE (lab-smoke PASS) — Phase 3 — Subscription-triggered plugin → DynamicConfigPart. EventSubscription Kind; event batch → PluginRequest; PluginResult → DynamicConfigPart (with routerd.net/dynamic-source, event-id, event-group annotations); debounce/batchWindow; event_subscription_runs. Accept: cloud receives client.ipv4.observed for 10.88.60.9/32 → plugin → RemoteAddressClaim DynamicConfigPart visible in routerctl dynamic render; actionPlan shown, not executed.
  • ⏭ NEXT (not started) — Phase 4 — Provider actionPlan plugins (dry-run). aws/azure/oci-address-claim example plugins; standardized actionPlan format; instance-identity auth. Accept: plugins propose assign-secondary-IP; no mutation; plan visible in routerctl plugin/dynamic.
  • Phase 5 — (post-MVP) provider action execution. Approval/auto-apply policy; action journal; best-effort undo; identity docs. Out of MVP.

The first end-to-end smoke is manual routerctl federation event emit → federation → DynamicConfigPart (Phases 1–3). The ARP/Clients observer plugin comes after that smoke (modeled on routerd-ra-observer), so failures are isolatable.

MVP event types​

routerd.client.ipv4.observed, …ipv4.expired, …dynamic.part.accepted/rejected, …provider.action.planned/succeeded/failed. observed+expired alone suffice for the first smoke.

Consequences​

  • Positive: turns SAM from hand-authored to event-driven; small, demoable phases; reuses existing envelope/transport/plugin/state; no new Kind sprawl (3); provider mutation stays gated; cloud-native identity from day one.
  • Negative / risks: a new network listener (overlay-bound + HMAC mitigates); loop/flap and provision/de-provision asymmetry must be enforced as invariants (above); at-least-once pushes idempotency onto plugins and naming; TLS/mTLS deferred. de-provisioning automation is deliberately the last thing enabled.
  • Scope-out (MVP): consensus, exactly-once, gossip mesh, arbitrary remote command execution, automatic provider mutation, full IP lifecycle automation, remote plugin registry, cross-node config rewrite.

Known limitations (experimental)​

  • routerd-eventd supervision is systemd-only. No FreeBSD rc.d unit is generated yet; on FreeBSD the daemon must be supervised manually until the rc.d resource is added.
  • EventSubscription batchWindow/debounce are accepted but coarse. The fields validate and are honored at poll granularity — the controller batches events per poll tick, not on a precise sub-tick timer. Tight debounce windows are effectively rounded up to the tick interval.

Out of scope / open questions for later​

  • Whether cloud→onprem needs more than acks (e.g. capture-ready signal that toggles on-prem proxy-arp only after cloud secondary exists).
  • Sharing filters across peers (promote EventFilter to its own Kind).
  • Multi-peer / >2-node groups (MVP targets the validated pair topology).
